Specification
Brand : Fanmusic
BulletPoint : PCM5102 PCM5102A DAC decoder I2S player 3.5 mm interface output
BulletPoint1 : ES9039SPRO X2. Using two ESS flagship chips ES9039SPRO for Digital to Analog Conversion,1chip each for left and right channel. With two completely independent power supply and grounding to seal the great sound performance.
BulletPoint2 : DSP Digital Filter. A high-performance digital filter solution developed on the Analog Device SHARC digital audio-specific DSP platform with the primary objective of reducing audio in-band aliasing noise in the digital domain. This filter enhances the sound quality by upscaling and noise shaping the raw digital audio stream signal. The anti-aliasing noise algorithm and high-precision floating-point 64bit operation used in this program are the key technical points.
BulletPoint3 : FPGA Programmable Logic Chip. Exclusive technologies such as digital integrated circuits with self-constructed logic functions, clock management, 2nd PLL digital shaping, DOP demodulation,and PCM/DSD depop switch provide a solid foundation for excellent sound quality.
BulletPoint4 : GCLK-02 Clock Module. The GCLK-02 clock module is a high-performance clock frequency synthesizer that utilizes advanced PLL(Phase Locked Loop) technology to ensure clock signal stability and accuracy. The design of this module allows it to use either a local clock source or an external 10MHz clock signal, providing users with a flexible clocking solution. In this way, the GCLK-02 is able to significantly reduce the impact of the front-end clock performance on the overall system performance, thus reducing the dependence on the performance of the front-end audio equipment.
BulletPoint5 : USB interface adopts XMOS XU216 USBAUDIO special chip support PCM768k, DSD512 and MQA full decoding.
Color : Silver
CompatibleDevices : Smartphone, Tablet, Personal Computer, Amplifier, Speaker, Television
CompatibleDevices1 : Speaker
CompatibleDevices2 : Smartphone
ConnectivityTechnology : Bluetooth
ConnectorType1 : USB
ConnectorType2 : RCA
ControlMethod : remote
ExternallyAssignedProductIdentifier1 : 0749771564150
ExternallyAssignedProductIdentifier2 : 749771564150
IncludedComponents : Gustard X26III*1

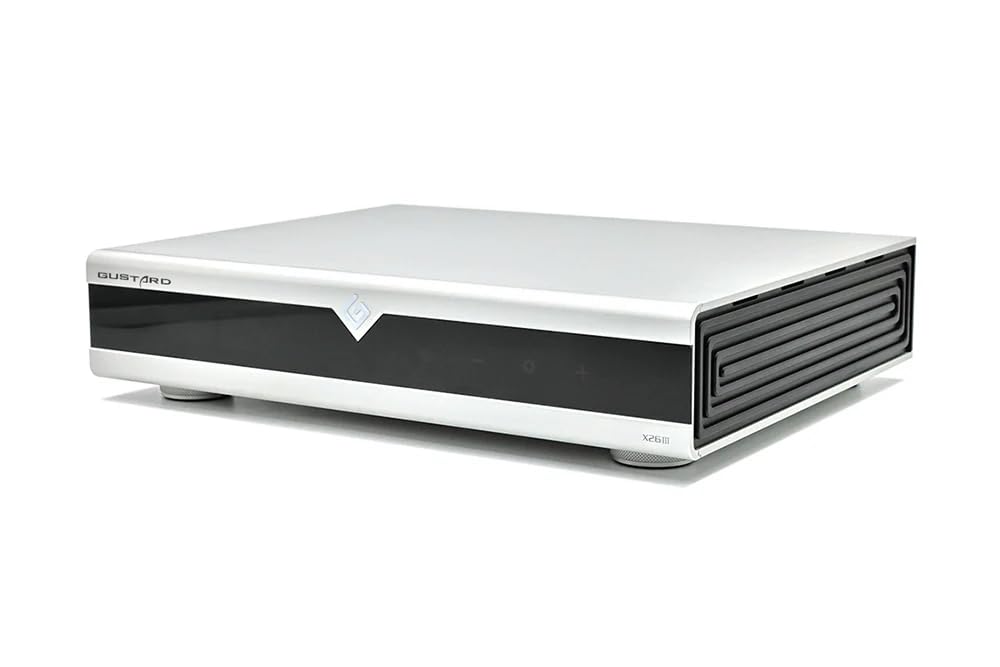

ItemName : Gustard X26III Network Streamer ES9039SPRO Dual High-Performance DAC Support DSD512&PCM768k (Silver)
ItemPackageQuantity : 1
ItemTypeKeyword : digital-to-analog-converters
Manufacturer : Gustard
Material : copper
ModelNumber : X26III
NumberOfItems : 1
PartNumber : Gustard X26III
ProductDescription : SPECIFICATIONS:
Digital Input
LAN Support protocol: Roon, airplay, upnp,NAA, Spotify (Configuration web page can be configured to open and close the protocol, can be upgraded online)
LAN speed 100/1000Mbps.
10M clock (BNC): Input impedance 50 Ohm, 0dBm - 20dBm, CMOS square wave 0.2V-3.3V, Sine wave 0.5V-3.3V.

Analog Output
Frequency Response: 20-20kHz/+-0.3dB
Dynamic Range: > 128dB
Signal to Noise Ratio: >127dB
Channel Crosstalk: -132dB@ 10kHz
THD+ N:<=0.0001% @1kHz
IMD: ≈0.001% @ -ldbfs
RCA output level: 2.5Vrms (VOLUME FIXED)
RCA outputimpedance: 100Ω
XLR output level: 5.1Vrms (VOLUME FIXED)
XLR output impedance: 100Ω
XLR Interface Definition: American Standard
(1 ground, 2 hot, 3 cold)

Other parameters
AC power supply: AC115V/230V 50/60Hz
power consumption: <25W
Dimensions: W330mm*D260mm*H65mm(excluding protrusions)
Package Dimensions: L420*W360*H175mm
Weights with package:10KG
115V/220V (Manual switch)
ProductSiteLaunchDate : 2024-11-02T03:06:37.399Z
Size : black
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 25174400
Wattage : 25 watts
WirelessCommunicationTechnology : Bluetooth
