Specification
Brand : TRANSWAN
BulletPoint1 : 4 Channels (2 Way) 24 bit depth digitally encoded Line-Level balanced XLR audio over Optic Fiber
BulletPoint2 : Extension 20 Km over Single-Mode Fiber or 500 meters over Multi-Mode Fiber
BulletPoint3 : But not directly support Mic-Level Audio, So It can not directly with the Microphone, if the Audio is from Microphone, the user need other devices like DJ controller/ Audio MIxer which has Amprifier function to work with our Extender
BulletPoint4 : with 1U Chassis, Easy stand-alone or rack-mount installation
BulletPoint5 : Plug and Play; with Bi-directional Hot Pluggable SFP module
Color : Black
Department : unisex-adult
ExternallyAssignedProductIdentifier : 3002985725975
IncludedComponents : SFP Module
InterfaceType1 : XLR Male /Female
InterfaceType2 : 1 x LC SFP
ItemDisplayDimensions_Length : 2.56 inches

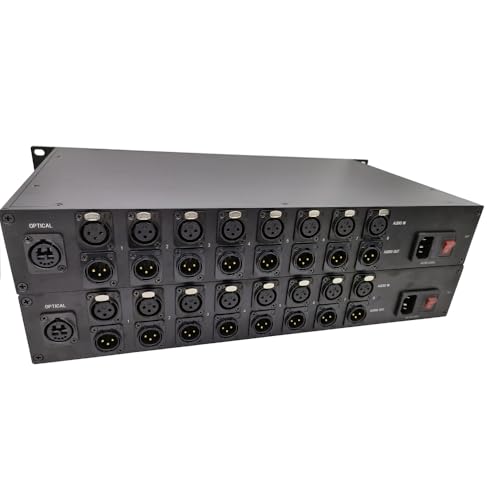

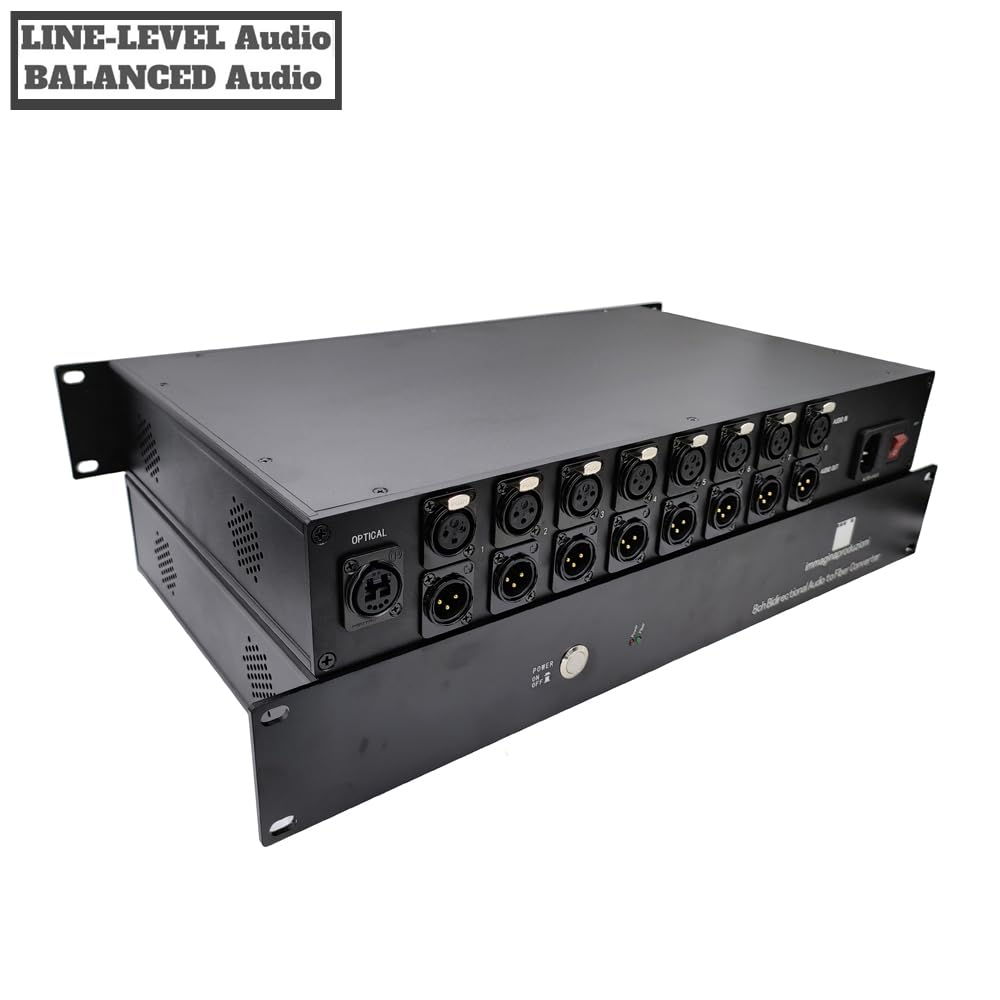

ItemName : 4 Channel 2 Way 24-bit XLR Line-Level Balanced Audio to Fiber Converter Over 20 Km SMF or 500 Meters MMF with 1U Chassis (BY-XLR-117-24B(8 Ch 2 Way Line Balanced Audio to Fiber with 1.5U)
ItemPackageDimensions_Height : 1.57 inches
ItemPackageDimensions_Length : 4.72 inches
ItemPackageDimensions_Width : 4.72 inches
ItemPackageQuantity : 1
ItemTypeKeyword : digital-to-analog-converters
Manufacturer : TRANSWAN
Material : Plastic
Material1 : Plastic
Material2 : Iron
ModelName : D3LX0Z1
ModelNumber : 0148TL1275UU
NumberOfChannels : 4
NumberOfItems : 1
NumberOfPins : 3
PartNumber : BY-XLR-404-24B
ProductDescription : Description:

BY-XLR-404-24B includes 4 Ch Bi-directional balanced audio fiber transmitters and receivers, which supports 4 Channels 2 ways 24 bit digitally encoded broadcast quality balanced audio over 1 core multi-mode or single-mode optical fiberr (multi-mode up to 500 Meters or single-mode optical fiber up to 20 Kilometers)

Balanced Audio:
Number of Channels: 4 Ch Input + 4 Ch Output
Input Connector: XLR（Female)
Output Connector: XLR（Male)
Input / Output Impedance:10K Ohm
Max input/output voltage: +4 dBu (1.228 Volts). Caution: If Mixer output over the limit, it will burn out the chip
Frequency Response: 20Hz—24KHz@±3dB
Sample Rates: 48kHz
Bit Depth: 24 Bit
SNR:> > 80dB

Optical:
Wavelength: 1310nm/1550nm
Output Power: -14~ -8dBm
Supported Optic fiber: Multi-mode & Single-mode
Rx sensitivity:-30dBm
Optical connector: 1 x LC
Distance: 0~500 Meters (MMF) / 0~20 Kilometers (SMF)
Electrical & Mechanical:
Power Adapter: AC 90V~240V
Power Consumption: 8W
Stand-Alone Dimensions: 1U (4 Ch 2 Way) / 1.5 U(8 Ch 2 Way)
Shipping Weight(include Transmitter & Receiver ): 10Kg / 15Kg

Environmental:
Operating Temperature:-20°C ~ +75°C
Storage Temperature:-40°C ~ +85°C
Relative Humidity:0% ~ 95% (non-condensing)
MTBF:>100,000 hours

Application:
Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc

Caution:The Input & Output Audio should be connected with the Line-Level & Balanced Interface of the DJ controller or Audio Mixer, if not, the wrong connection could damage our devices or no sound out. for more, please check the Images of Application 1 & 2..

Package:
1. 1 x transmitter with SFP module.
2. 1 x receiver with SFP module.
