Specification
Brand : GOWE
BulletPoint1 : Specifications Parameters: Single Dimensions: width 330mm, depth 220mm, height 70mm (excluding knob, machine feet, connector size) Frequency response: 20Hz-35KHz; SNR: general port output: 110dB; Harmonic distortion: General port output: <0.001%; Support 24bit digital stream below; Supports the following sampling frequency: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz, 192KHz; Output Level: Balanced output 9V, Standard output 2V
BulletPoint2 : Dynamic Range: balanced output greater than 120dB, unbalanced output is greater than 110dB; Input impedance: 1101017 AES / 120 ohms, other digital interfaces / 75 ohms; Line Output Impedance: 600 ohms; Net Weight: 2.6Kg, ; Packing gross size weight: about 5.6Kg; Input voltage: 110v, 220v-240v 60/50Hz for all countries customer; Product Description: USB receive use TE8802L 24bit / 192K, which is a work in asynchronous or

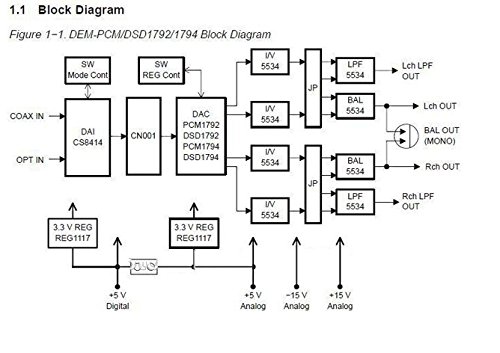

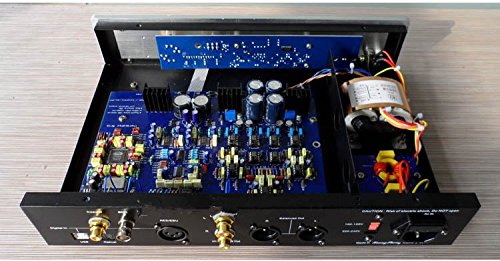

BulletPoint3 : adaptive mode of high-end chip, 1101017 of course, this machine is the asynchronous mode, it can effectively reduce the jitter values.TE8802L is TE7022L upgraded version chip, QFP128 pin mode.USB part will directly use TE8802L's IIS out signal to link with PCM1794A decoder chip Decoder part use two PCM1794 with each for one channel on mono mode, with mono mode, PCM1794 can give a best effectif
BulletPoint4 : Use 9 Korea produced LM4562NA op-amps, Respectively for Balanced or Standard output and LPF; 5 inputs: AES balanced input, USB, RCA Coaxial, BNC Coaxial, Optical. AES use pulse transformer coupling; USB state indicator in front panel; Use US's DALE and Japan's TKD top resistors; Use all top audio capacitors; Amplification chip 1101017 use wel-know TDA1521
BulletPoint5 : Use customized 20ppm Crystal oscillator; Use all teflon sliver-plated inside single or double wires
CompatibleDevices : Laptop
ConnectorGender : Male-to-Male
ConnectorType : USB Type C
DataTransferRate : 100 gigabits_per_second
ExternallyAssignedProductIdentifier1 : 0827674524690
ExternallyAssignedProductIdentifier2 : 827674524690
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor
InterfaceType1 : Coaxial
InterfaceType2 : USB
ItemDisplayDimensions_Height : 12 inches
ItemDisplayDimensions_Length : 1 inches
ItemDisplayDimensions_Width : 9 inches
ItemName : GOWE USB SPDIF Balanced XLR I/O DAC Double PCM1794 Flagship Level Decoder Digital Analog Converter
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 12 inches
ItemPackageDimensions_Width : 9 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : digital-to-analog-converters
Manufacturer : Gowegroup
Material : Copper
ModelNumber : AOC-Q-Q-100G-3M-AO
MountingType : Plug Mount
NumberOfChannels : 1
NumberOfItems : 1
PartNumber : GWE-1021713
ProductDescription : Specifications Parameters: Single Dimensions: width 330mm, depth 220mm, height 70mm (excluding knob, machine feet, connector size) Frequency response: 20Hz-35KHz; SNR: general port output: 110dB; Harmonic distortion: General port output: <0.001%; Support 24bit digital stream below; Supports the following sampling frequency: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz, 192KHz; Output Level: Balanced output 9V, Standard output 2V
ProductSiteLaunchDate : 2016-04-16T09:12:21.711Z
SupplierDeclaredDgHzRegulation : unknown
Voltage : 230 volts
