Specification
Brand : Yosoo
BulletPoint1 : [Adjustable 0 Point] Using sophisticated production technology, you can adjust the 0 point and full scale of this converter as needed, ensuring precise conversion.
BulletPoint2 : [High Stability] Made of plastic, this converter offers excellent stability, good linearity, and is built to industrial-grade standards for reliable performance.
BulletPoint3 : [Wide Supply Voltage Range] This current to voltage converter supports multiple output voltage ranges, providing versatility for various applications.
BulletPoint4 : [Versatile Usage] This module is indispensable for converting current into voltage at the end of the transmission, making it ideal for single chip detection applications.
BulletPoint5 : [High Accuracy Sampling] The current sampling resistor utilizes high accuracy color ring , delivering precise results with low temperature drift and high power efficiency.
Color : #611
ExternallyAssignedProductIdentifier : 8017263883273
HardwareInterface : usb
IncludedComponents : No

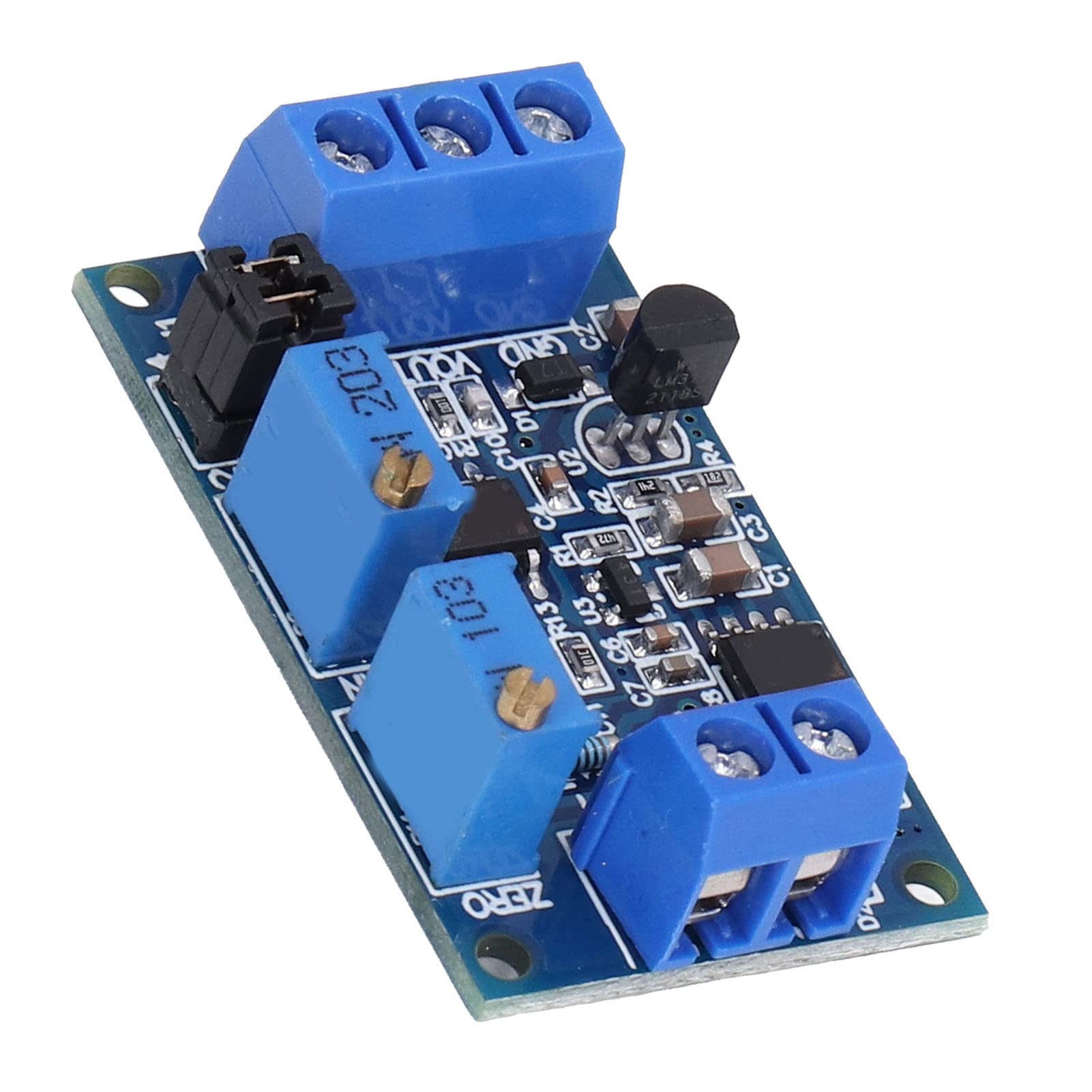

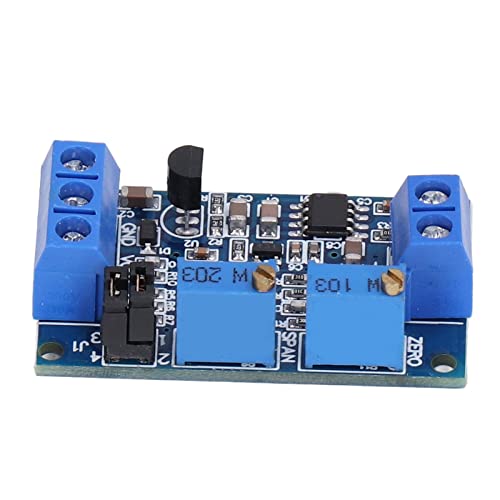

ItemName : Current Voltage Converter Wide Supply Voltage Range High Accuracy Industrial Grade Module for Signal Conversion
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : digital-to-analog-converters
Manufacturer : Yosoo
ModelName : Yunseity5ge6km91af-11
ModelNumber : Yosoohd2ew7bq16
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Yosoohd2ew7bq16
PowerPlugType : no_plug
ProductDescription : [Adjustable 0 Point] Using sophisticated production technology, you can adjust the 0 point and full scale of this converter as needed, ensuring precise conversion.
[High Stability] Made of plastic, this converter offers excellent stability, good linearity, and is built to industrial-grade standards for reliable performance.
[Wide Supply Voltage Range] This current to voltage converter supports multiple output voltage ranges, providing versatility for various applications.
[Versatile Usage] This module is indispensable for converting current into voltage at the end of the transmission, making it ideal for single chip detection applications.
[High Accuracy Sampling] The current sampling resistor utilizes high accuracy color ring , delivering precise results with low temperature drift and high power efficiency.

Spec:

Item Type: Current to Voltage Converter
Material: Plastic
Current Input Support: 4 to 20mA, 0 to 20mA



Package List:
1 x
Current to Voltage Converter

How To Use:
Instructions for use:
1. The module is wired as defined, and the power supply voltage is 7 to 36V (if the output is to be 10V, the power supply voltage must be greater than 12V)
2. After power on, the D2 light should be on, otherwise please check the cable connection. The board is protected against reverse connection, so the reverse connection will not burn.
3. When the current input is at the minimum (0mA or 4mA), adjust the 0 potentiometer to make the VOUT output at the minimum (0.0V or other voltage)
4. When the current input is at the maximum value (20mA), adjust the SPAN potentiometer to make the VOUT output at the maximum value (3.3V or 5V or 10V, when the input is 4 to 20ma, the minimum output can be 2.5V).
According to your needs, select the corresponding range through the jumper cover:
4 to 20ma: 0
ProductSiteLaunchDate : 2024-09-01T17:38:49.162Z
Size : US Plug
UnitCount : 1
UnspscCode : 52161500
