Specification
Brand : Juried Engineering
BulletPoint1 : Low Noise: 10 Hz...15 nV/Hz, 1 kHz...10.5 nV/Hz\
BulletPoint2 : 10000-pF Load Capability, Large Output Swing, VCC– +0.1 V to VCC+ –1 V
BulletPoint3 : 20-mA Min Short-Circuit Output Current, Fast Settling Time: 340 ns to 0.1%, 400 ns to 0.01% , Saturation Recovery...150 ns
BulletPoint4 : 27-V/µs Min Slew Rate, Single or Split Supply...4 V to 44 V
BulletPoint5 : High Gain-Bandwidth Product...5.9 MHz, Low VIO ...500 µV Max at 25°C
ExternallyAssignedProductIdentifier : 4251868728032
ExternallyAssignedProductIdentifier1 : 0799993468347
ExternallyAssignedProductIdentifier2 : 799993468347

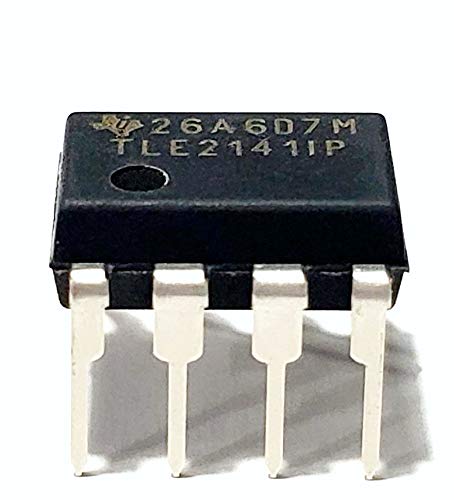

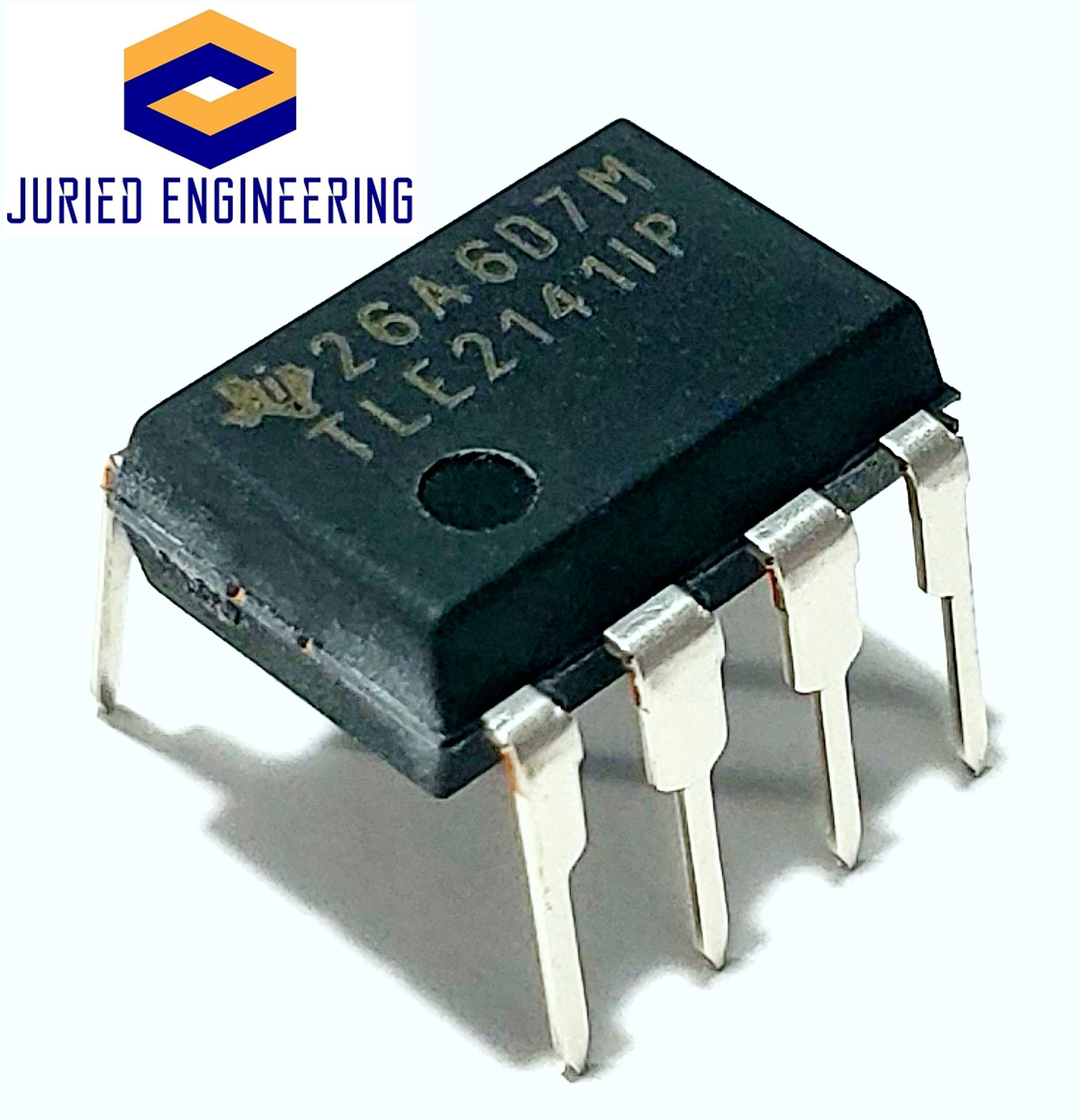

ItemName : Juried Engineering TLE2141CP TLE2141 Excalibur Single Low Noise High-Speed Precision Single or Dual/Split Supply Operational Amplifier Op Amp Breadboard-Friendly IC DIP-8 (Pack of 2)
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 1 inches
ItemPackageDimensions_Width : 1 inches
ItemPackageQuantity : 1
ItemTypeKeyword : differential-amplifiers
Manufacturer : TI
Material : PDIP
ModelNumber : TLE2141IP
MountingType : Surface Mount
NumberOfChannels : 1
NumberOfItems : 2
PartNumber : TLE2141CP
ProductDescription : The TLE2141 devices are high-performance, internally compensated operational amplifiers built using Texas Instruments complementary bipolar Excalibur process.

The design incorporates an input stage that simultaneously achieves low audio-band noise of 10.5 nV//100-pF load is useful in fast actuator/positioning drivers. Under similar test conditions, settling time to 0.01% is 400 ns.

The devices are stable with capacitive loads up to 10 nF, although the 6-MHz bandwidth decreases to 1.8 MHz at this high loading level. As such, the TLE2141 are useful for low-droop sample-and-holds and direct buffering of long cables, including 4-mA to 20-mA current loops.

The special design also exhibits an improved insensitivity to inherent integrated circuit component mismatches as is evidenced by a 500-µV maximum offset voltage and 1.7-µV/°C typical drift. Minimum common-mode rejection ratio and supply-voltage rejection ratio are 85 dB and 90 dB, respectively.

Device performance is relatively independent of supply voltage over the ±2-V to ±22-V range. Inputs can operate between VCC– – 0.3 to VCC+ – 1.8 V without inducing phase reversal, although excessive input current may flow out of each input exceeding the lower common-mode input range. The all-npn output stage provides a nearly rail-to-rail output swing of VCC– – 0.1 to VCC+ – 1 V under light current-loading conditions. The device can sustain shorts to either supply since output current is internally limited, but care must be taken to ensure that maximum package power dissipation is not exceeded.

Both versions can also be used as comparators.
ProductSiteLaunchDate : 2020-07-16T22:46:59.040Z
Size : Juried Engineering ESD Safe Packaging (Pack of 2)
UnspscCode : 32101600
