Specification
Brand : INSTRUKART
BulletPoint : For Supco SHP600475 High Pressure Switch Open: 600 Close: 475 PSI for HVAC for Refrigeration
BulletPoint1 : Measuring Parameter: Differential Pressure | Range: - (Consider below Range & add as variations) | Accuracy: ±0.5% full Scale | Resolution: 1 Pascal | Display: Integrated 3.5” TFT Touch Screen Panel
BulletPoint2 : Mounting Option: Panel Mounting (Default), Wall Mounting with accessory (Grouting Box) | Medium: Air or Gases (Non-Corrosive) | Sensors: Integrated High Speed Differential Pressure Sensor | Max Over Pressure: 2 Time Rated Pressure
BulletPoint3 : Connection: 2 Nos. Hose Nipples of 4mm. ABS Plastic at the back | Alarm Type: Built in Buzzer Alarm for Process Violation Alert | Communication: 4-20mA Analogue/ RS485 (Optional) for BMS/SCADA/PLC Integration.
BulletPoint4 : Construction: Matte Finish ABS Plastic Enclosure | Power Supply: 24 Volts D.C. Typical | Size: Standard 4 ½'' (114.3mm.) Diameter| Depth: 30 mm. | Weight: 180 Grams | Mounting Box: SS Front plate with MS back body, Provision for Tubing Input.
BulletPoint5 : Supply Scope: 1 Unit of Differential Pressure Gauge TFT, 1 Unit of Wall Mounting Box, Power Adaptor, Mounting Screws, Instruction Manual and Calibration Certificate | Applications: Clean Rooms, Hospitals-Isolation Rooms, HVAC, Sterile Processing & Storage, Laundry, Hospital room monitoring, Infectious control.
Color : OPM11-NC 1-4
ColorRenderingIndex : 95
ConnectivityProtocol : X-10
ControllerType : Push Button
ControlMethod1 : remote
ControlMethod2 : application
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 3660554063783
ExternallyAssignedProductIdentifier1 : 0761873098388
ExternallyAssignedProductIdentifier2 : 761873098388
IncludedComponents : Differential Pressure Gauge TFT, Instruction Manual and Calibration Certificate
InternationalProtectionRating : IP54

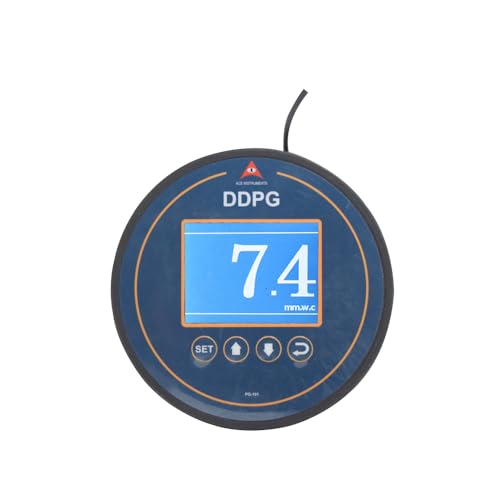

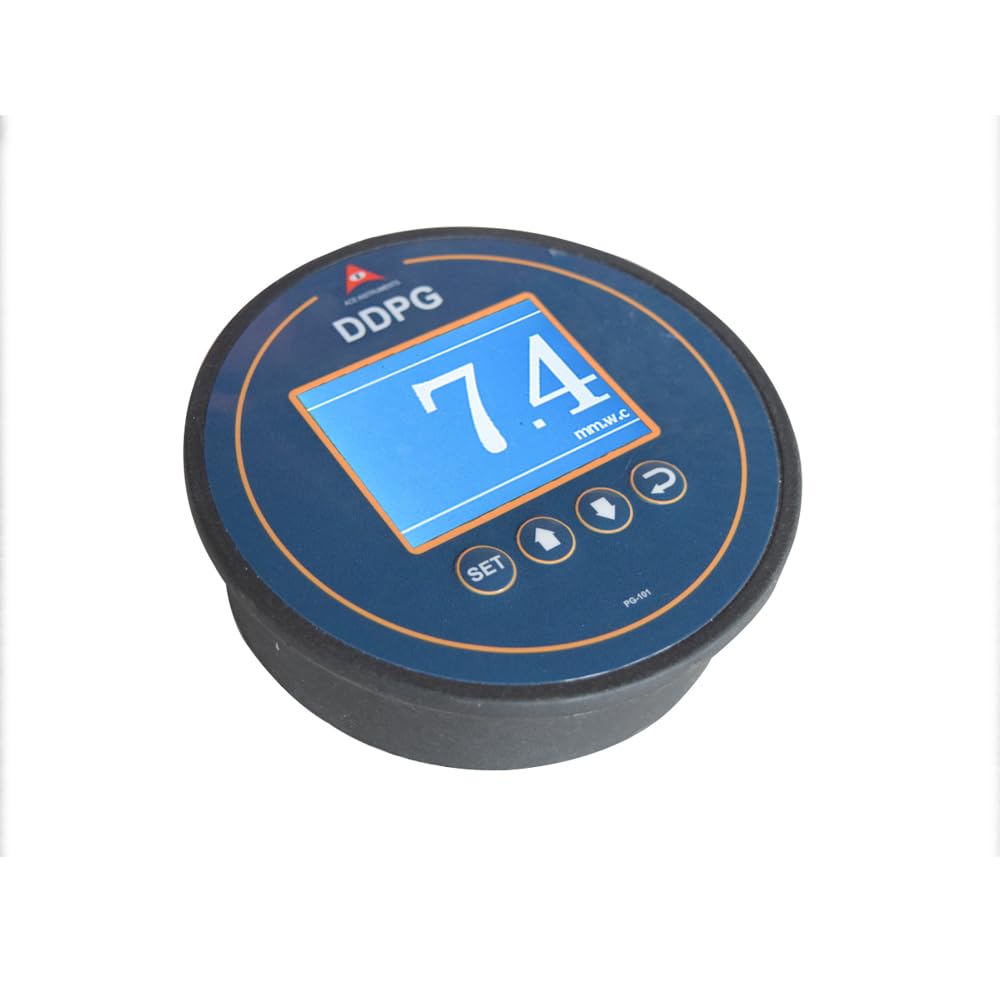

ItemName : TFT Touch Screen Panel Digital Differential Pressure Gauge for Clean Rooms, Hospital OT Rooms, Laminar Cabinets, Safety Units Model: AI-DDPG
ItemPackageDimensions_Height : 0.01 inches
ItemPackageDimensions_Length : 0.01 inches
ItemPackageDimensions_Width : 0.01 inches
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-differential-pressure-gauges
Manufacturer : INSTRUKART
Material : SHP600475
MeasurementAccuracy : ±0.5%
ModelName : High Pressure Switch Open
ModelNumber : DDPG-TFT
NationalStockNumber : 5930-00-978-4062
NumberOfItems : 1
PartNumber : IK-ACE-DDPG-TFT
ProductDescription :

Introducing our advanced TFT Digital Differential Pressure Indicator, designed to replace traditional analog Magnehelic gauges for critical environments such as laminar air flow cabinets, clean rooms, biosafety cabinets, and AHUs. Featuring a vibrant TFT screen, this indicator provides a clear and intuitive digital readout, making it easier to monitor and manage differential pressure levels with precision.

The device comes equipped with:

• Built-in sensor and buzzer alarm to alert users of process violations, complete with an Acknowledgment Feature for quick response.
• TFT display for enhanced visibility, allowing for seamless unit conversion between mm.w.c. and Pascals at the touch of a button.
• Offset provision to meet audit compliance, along with analog output for integration with existing systems.
• Sleek, compact design for clean room modular wall setups.
• RS485 Modbus communication for smooth integration with BMS, SCADA, and PLC systems.

This device is a robust solution for highly controlled environments.

Applications:

• Clean Rooms
• Hospitals - Isolation Rooms
• HVAC systems
• Sterile Processing & Storage units
• Laundry rooms
• Hospital room monitoring
• Infectious control areas

This device ensures reliable pressure monitoring and control in any environment where precise airflow management is critical.

ProductSiteLaunchDate : 2024-10-14T09:42:17.061Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Pressure Switch
UnitCount : 1
UnspscCode : 41110000
Wattage : 1 watts
