Description:
Pressure: 20 to 85 psi (1.4 to 6 kg/cm3)
Air consumption: 2 cfm (58 litres/minute)
Gas input: 1/4" connector
Exhaust: 1/8" NPT connector, 1/4" muffler
Output: 16L/min
Input/output valve: Teflon ball and stainless steel spring
Liquid input: 1/8" connector
Liquid output: 1/8" connector
Air valve: hard positive aluminium
Diaphragm: Teflon
Internal parts: stainless steel
Compatibility: most solvents and chemicals.
Dimensions: 144L*107W*1 59H
Weight: 1.3kg
Wide application: various corrosive liquids, liquids with particles, volatile, flammable and highly toxic liquids can all be sucked in.
Feature:
1. Low pressure, strong suction.
2. Easy to install, corrosion-resistant, high temperature resistant.
3. Selected materials, stable performance.
4. Reasonable structure, easy to operate.
5. Aluminum alloy material, durable.
Package included:

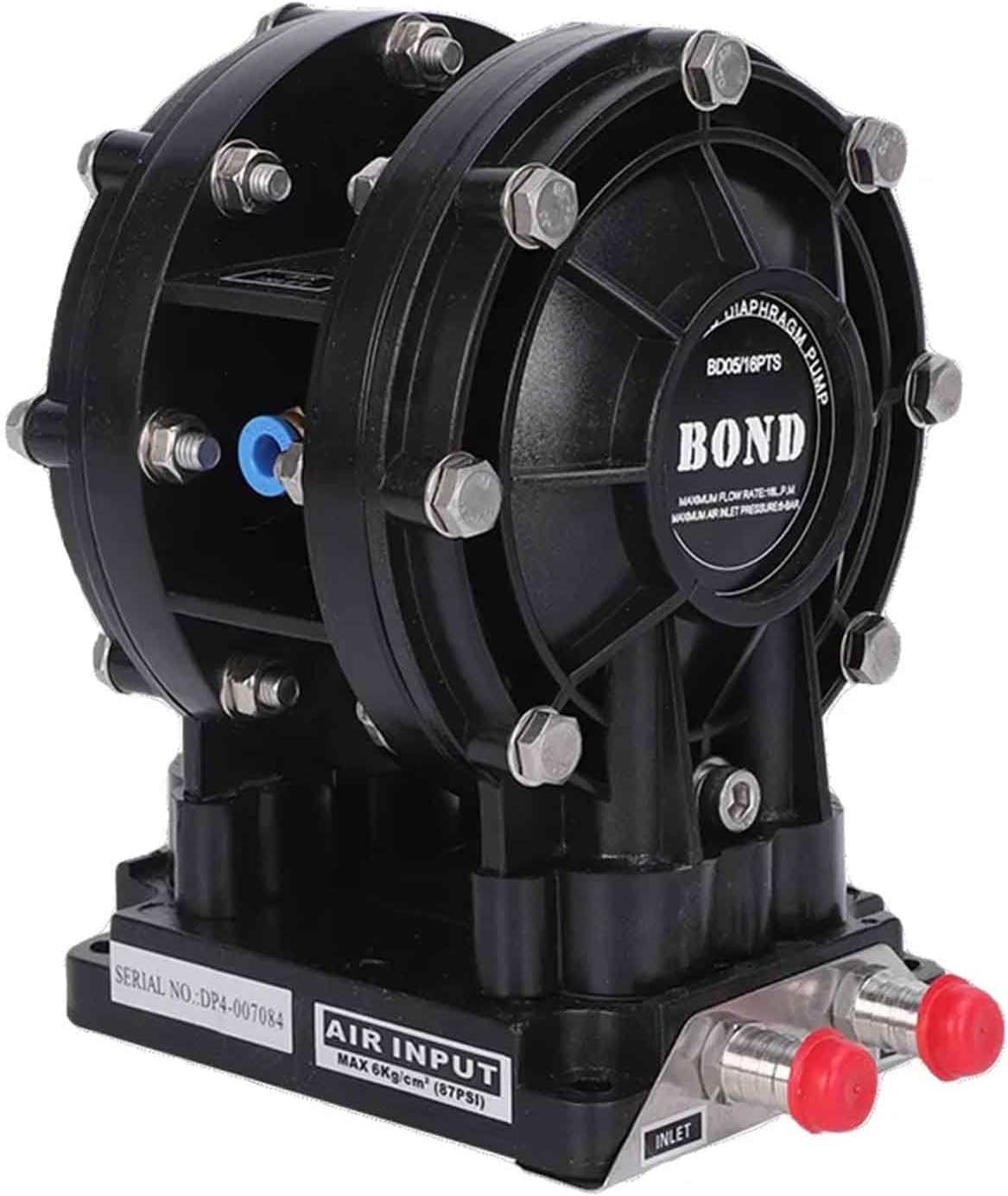

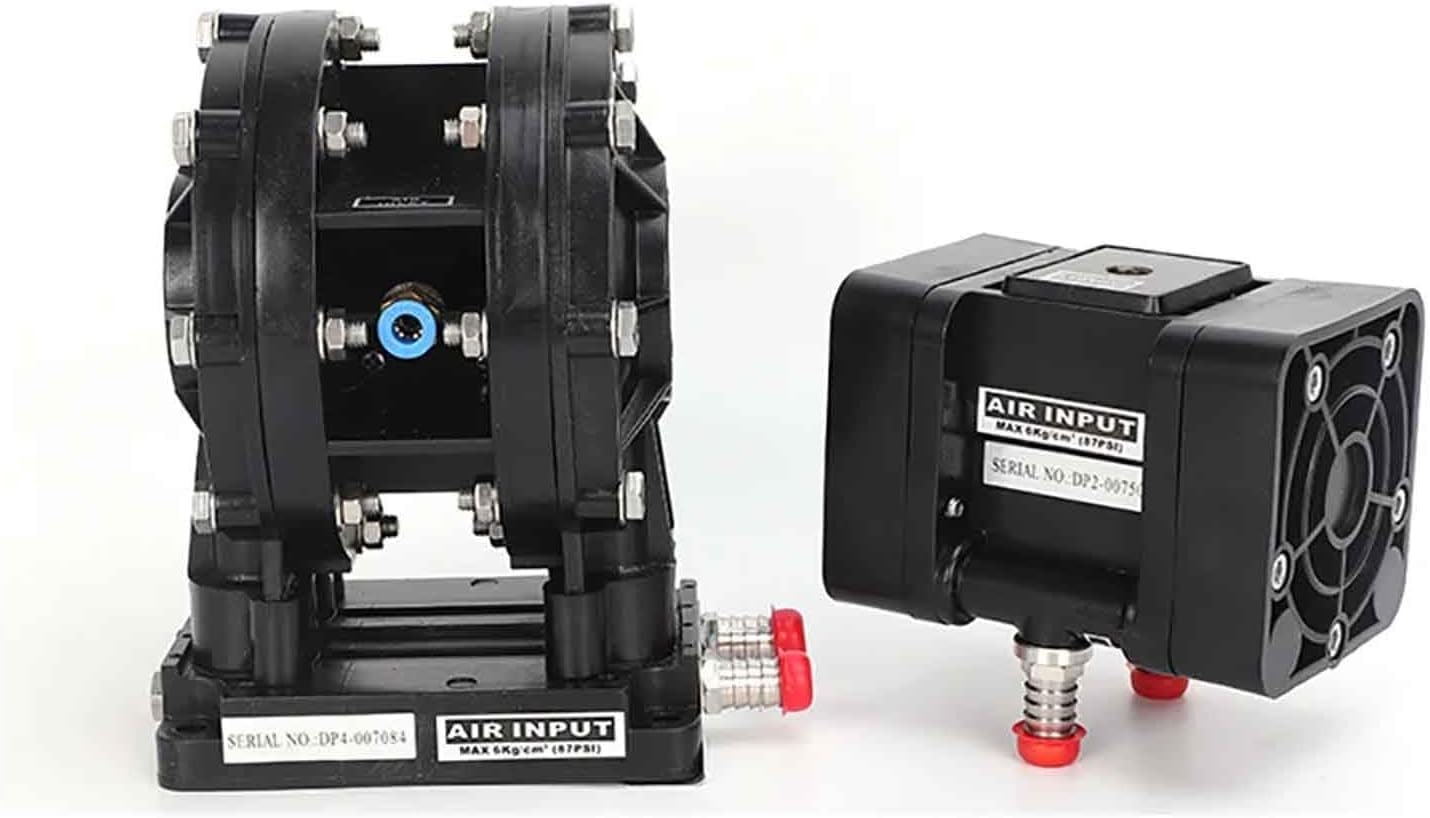

1 x Pneumatic Bidirectional Diaphragm Pump
