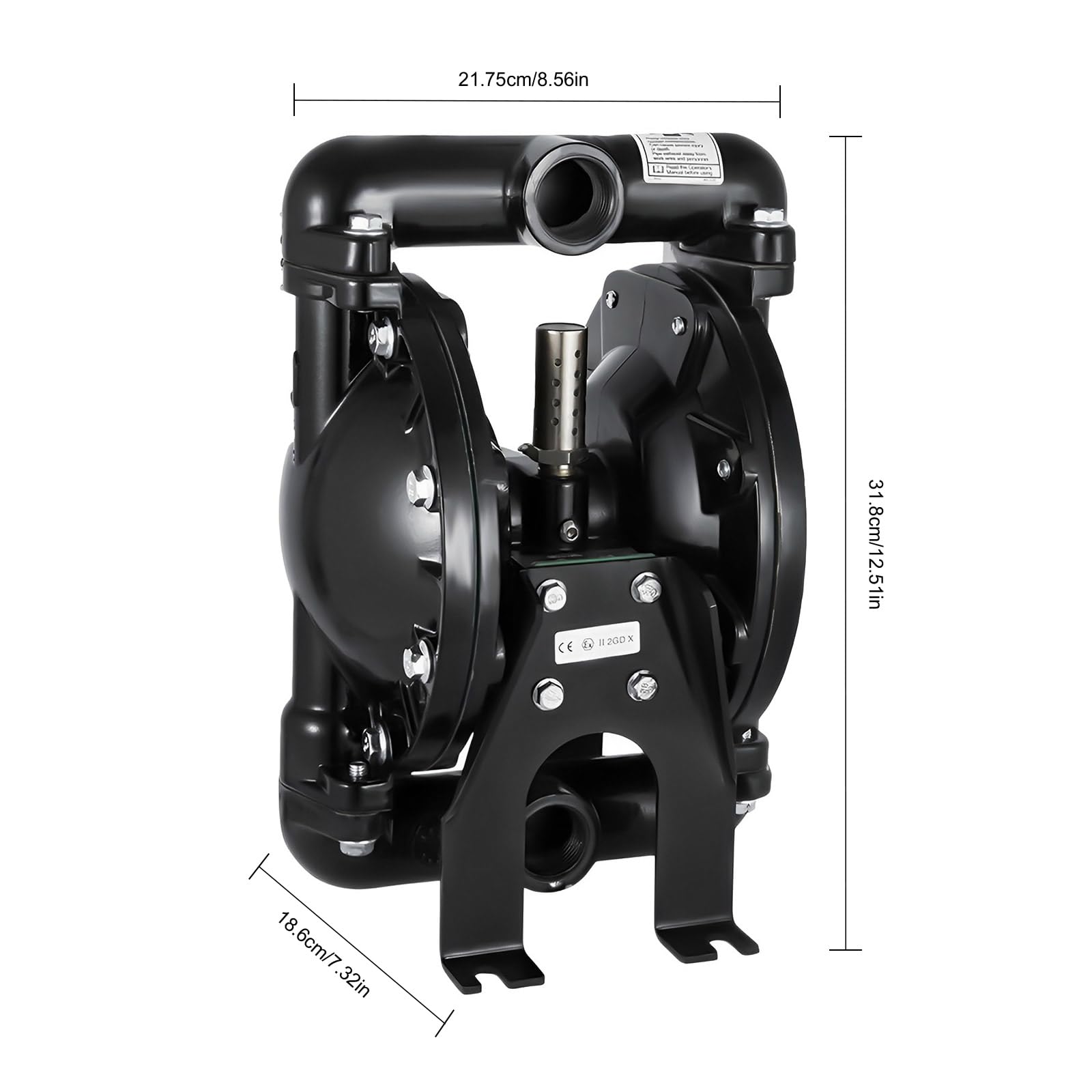

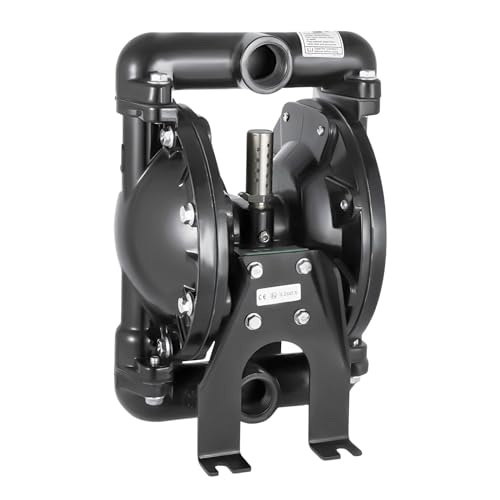

Pneumatic Diaphragm Pump Air-Operated Double Diaphragm Pump, Air-Operated Waste Oil Transfer Pump, 35 GPM Max 120PSI Aluminum Black

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 43800/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : DreamRcoach
BulletPoint1 : Flow Rate: The maximum flow rate of the pump is 9 cubic meters per hour (35 gallons per minute), indicating its high capacity to handle fluid flow quickly, making it suitable for applications requiring rapid liquid transfer.
BulletPoint2 : Inlet and Outlet Size: The pump features a 1-inch (25 mm) inlet and outlet port, enabling it to handle larger volumes of liquid flow.
BulletPoint3 : Maximum Suspended Solids Diameter: The pump can handle suspended solids with a maximum diameter of 3 mm (1/8 inch), making it effective in filtering out small particles from the liquid.
BulletPoint4 : Suitable for Liquids: The pump is well-suited for use with water and ideal for low viscosity petroleum fluids. This versatility allows for a wide range of applications in various industrial and commercial settings.
BulletPoint5 : High Pressure Capability: The pump has a maximum head of 84 meters (275.59 feet) and a maximum pressure of 120 psi. It possesses high lift and pressure capabilities, making it suitable for long-distance pumping or applications with higher pressure requirements.
Color : Black
IncludedComponents : 1 x Air-operated Double Diaphragm Pump
ItemName : Pneumatic Diaphragm Pump Air-Operated Double Diaphragm Pump, Air-Operated Waste Oil Transfer Pump, 35 GPM Max 120PSI Aluminum Black
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-diaphragm-pumps
Manufacturer : Voeu
Material : Plastic
ModelName : Pneumatic Diaphragm Pump
ModelNumber : MLLCR-3067
NumberOfItems : 1
PartNumber : 500437941
ProductDescription :

Working Principle:

In the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one. Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions.

Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison.


Feature:

Air-operated double diaphragm pump

With 1 inch inlet and outlet

1/2 inch air inlet

1/8 inch max diameter suspended solids

Perfect for use with water

Ideal for use with low viscosity petroleum fluids


Specification:

Product: Diaphragm Pump

Type: Double Diaphragm

Operation Type: Air-operated

Model: Qby4-25l

Body Material: Aluminum

Inlet Port: 1 Inch (25 Mm)

Outlet Port: 1 Inch (25 Mm)

Air Inlet Size: Npt 1/2 Inch (12.7 Mm)

Average Air Consumption: 38 Cfm

Max Flow Rate: 9 M3/H (35 Gpm)

Suction: 0-5 M (0-16.4 Ft)

Max Suspended Solids: 3 Mm (1/8 Inch)

Max Head: 84 M (275.59 Ft)

Max Psi: 120 Psi

Max Temp.: 150 ℉

Self-priming Dry: 3 M (10 Ft)

Self-priming Wet: 4.6 M (15 Ft)

Manifold Connection: Single

Valve Type: Ball

Ball Material: Acetal

Check Seat Material: Polypropylene

Diaphragm Material: Nitrile

Package Size: 35 X 26 X 23 Cm (13.78 X 10.24 X 9.06 Inch)

Gross Weight: 9.86 Kg (21.74 Lbs)


Package Content:

1 x Air-operated Double Diaphragm Pump

1 x Product Manual


ProductSiteLaunchDate : 2024-03-22T07:42:15.374Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 3.8272
UnspscCode : 40151500
Voltage : 12 volts
