Specification
Brand : ACNAO
BulletPoint1 : Build to Last: The superior engineering plastic housing is wear-resistant, impact-resistant, and not easy to deform, which can better protect the internal components and extend the product's service life.
BulletPoint2 : High Efficiency: It features a pure copper motor, a self-priming range of 9.84ft, an open flow of up to 18.9LPM/5.0GPM, and a 55PSI/3.88 bar pressure that can accommodate 3-4 faucet water supplies, making your pumping faster and easier.
BulletPoint3 : Safety Guard: It has overheating protection, overload protection, grounding protection, automatic start/stop, and switch reflux function which guarantees the stability of the product's operation and at the same time ensures safety when using it.
BulletPoint4 : Thoughtful Design: It has the function of self-priming water, when there is water in the tank can be automatically pumped, and can be turned off without water, for you to save water.
BulletPoint5 : Simple Installation: With complete accessories, standard interfaces, and simple construction, you can put it together yourself and put it to use right away!
Color : Black, White, and Blue
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 7634118069357
IncludedComponents : 1* Diaphragm Water Pump 1* Filter 2* Hose Adapters

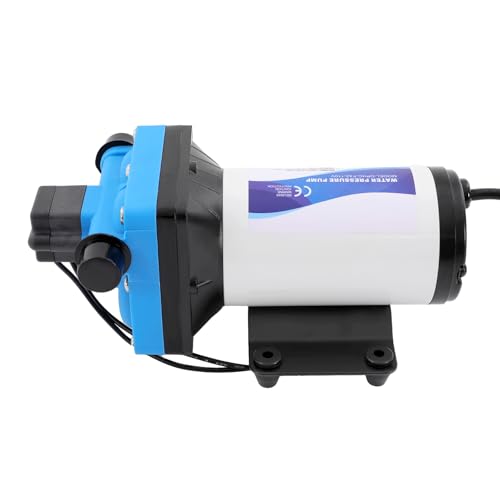

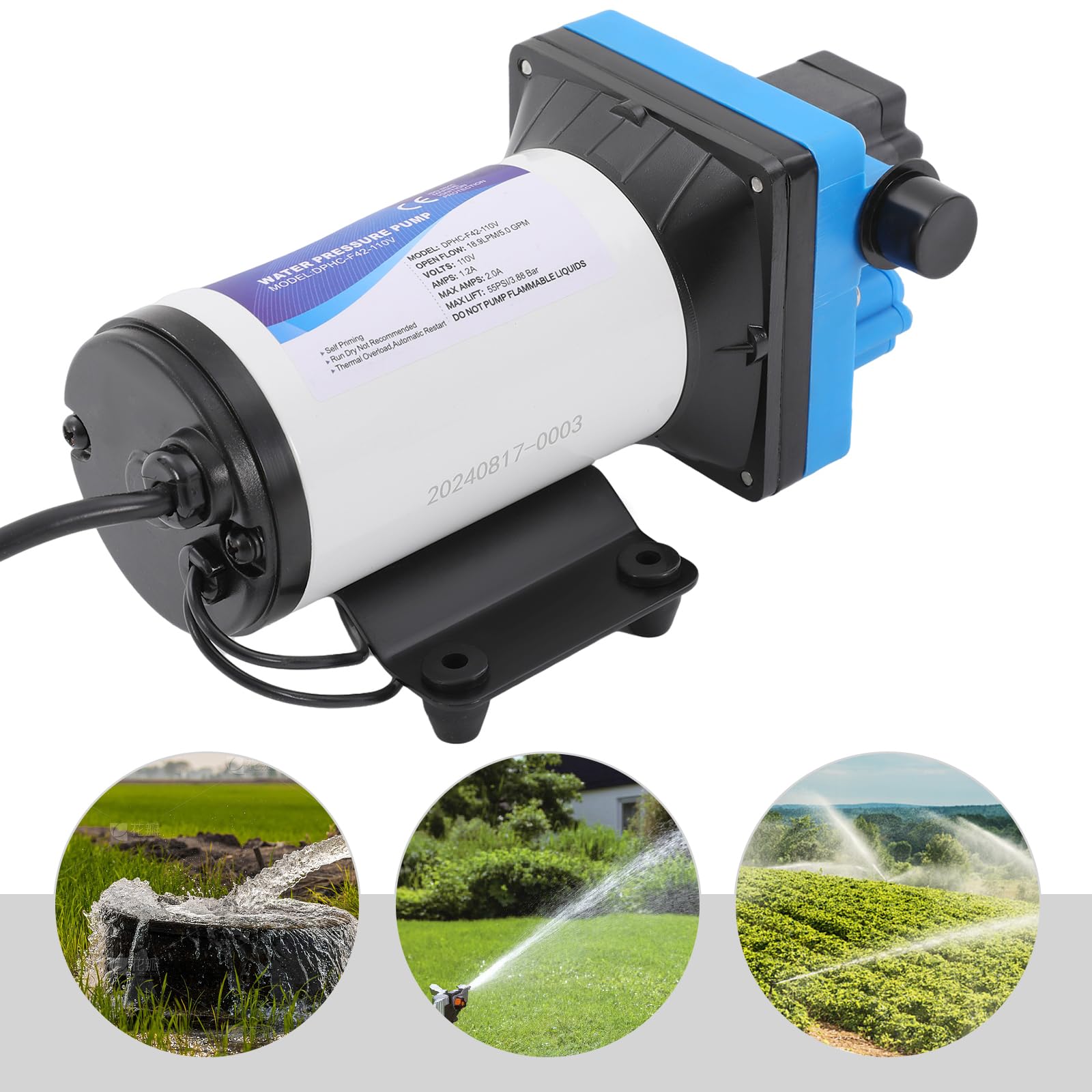

ItemName : Diaphragm Water Pump, 110V 5.0GPM 55PSI Self Priming Automatic Diaphragm Pump with Pressure Switch and Standard Port, Electronic Pump for Industrials, Agriculture, 3m/9.84ft Suction Range
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 1 inches
ItemPackageDimensions_Width : 1 inches
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-diaphragm-pumps
Manufacturer : ACNAO
Material : Engineering Plastic, Copper, and Steel
ModelName : Diaphragm Water Pump
ModelNumber : Diaphragm Water Pump
NumberOfBoxes : 1
NumberOfItems : 100
PartNumber : Diaphragm Water Pump
PowerSourceType : Corded Electric
ProductDescription :

Our water diaphragm pressure pump has excellent suction and head capacities and can easily cope with most liquid transfer tasks, guaranteeing a continuous and stable performance that defies many challenges.                Whether for vehicle cleaning, food and beverage processing and handling equipment, home water supply and pipeline pressurization, or water use in the use of RVs, ships, etc, this high-performance pump is the ideal choice for the most demanding applications.

Details

Stable Base: The rubber base can better maintain the stability of the product and ensure smooth and quiet operation.

Standard Port: The 1/2'' standard hose adapters can match most water pipes for convenient installation and use.

Practical Filter: It effectively filters out impurities from the liquid, which can better protect the pump for extended service life.

Application

It can be used for vehicle cleaning, ships, carpet/ground cleaning, water purification, washing, bathing, toilets, and flushing in the use of RVs, ships, yachts, boats, etc.;                food and beverage processing and handling equipment;            and other equipment that require a liquid transfer, spraying, and even metering such as garbage trucks, sprinklers, carpet/floor/vehicle cleaning equipment, road construction equipment, dishwashers, water circulation cooling systems, and pressurization systems.

Operation Guide

1.                Connect the pump with the inlet and outlet pipes, must ensure that the inlet and outlet pipes are tightly connected, otherwise, it will cause low pressure, poor sucking water, water leakage, and other problems;                (Tip: the pump head is labeled with an arrow instruction, the arrow points in the direction of the outlet, and vice versa for the inlet).

2.                Install the filter at the water inlet side;                the density of the filter mesh is best in more than 80 mesh (i.e.,  80 small holes/1cm²).

3.                Connect the electric diaphragm pump with the power supply, the output parameters of the connected power supply must meet the input requirements of the motor.

4.                Turn on the power, the pump starts to run.

5.                Discharge water for 5-10 seconds, and drain the air in the pump and the pipeline, when the water is stable, temporarily turn off the power supply, and connect the water gun, faucet, shower, and other related tools.

6.                Stop using, just close the outlet faucet, the pump has a pressure switch automatic start-stop function, the next use just open the faucet and it can work normally.

Specifications

Color: Black, White, and Blue

Material: Engineering Plastic, Copper, and Steel

Motor: Pure Copper Motor

Power Source: Corded

Plug Type: US Standard

Assembly Required: Yes

Control Type: Pressure Switch

Max.         Temperature: 65°C/149°F

Voltage: 110V

Amps: 1.2A

Max.         Amps: 2.0A

Noise: 55-60dB

Suction Range: 3m/9.84ft

Max Lift: 55PSI/3.88Bar

Open Flow: 18.9LPM/5.0GPM

Hose Adapter: 1/2"

Net Weight: 2.8kg/6.17lbs

Product Size: 12.45*10.97*21.2cm/4.9*4.32*8.35in

Package Included

1* Diaphragm Water Pump

1* Filter

2* Hose Adapters

Notes

1.        Diaphragm pumps can only be used for pumping clean water.         If you need to pump liquids with impurities, please be sure to install a filter at the inlet for use!

2.        The pump in the factory pressure value has been set in accordance with the specified standards, such as the actual use, you feel that the pressure is not enough, then you can make a slight adjustment, and can not be adjusted once too large or too small, too large an adjustment may result in the pressure switch does not work, the adjustment is too small may result in the pressure switch to start and stop frequently, a half-turn to adjust to the required pressure can be,         to avoid unnecessary trouble!

3.        When the water pump is working, ensure smooth drainage of the water pump to avoid holding the pump and causing damage to the pressure switch.         (If you hear the switch ticking during operation, please turn off the pump immediately and adjust the pressure appropriately).

4.        The motor is slightly waterproof, so don't worry too much about splashing water (just wipe it off), but it is strictly forbidden to immerse the pump motor in water.

5.        It must be based on the voltage of the pump to choose the appropriate power supply.         The 12V, 24V DC water pump must use the power adapter or voltage converter, you can also directly use the battery to drive the pump.

6.        The water pump is intermittent work, not 24-hour continual work.

7.        In winter, after use, it needs to exhaust the water pump and pipeline water, otherwise, it is easy to freeze and crack the water pump (only for some of the cold icing areas).

8.        Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

ProductSiteLaunchDate : 2024-10-18T02:08:11.032Z
Size : CN
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40151500
Voltage : 110 volts
