Description

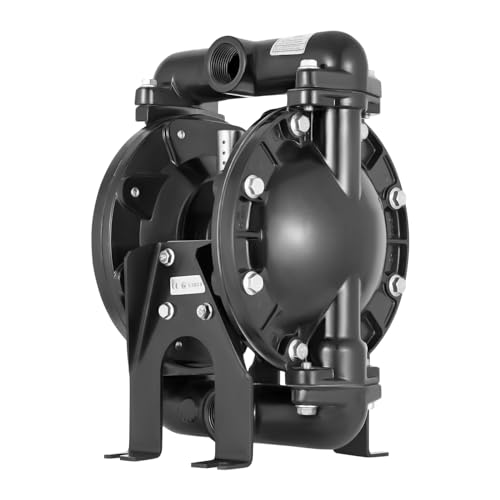

Air-operated Double Diaphragm Pump 1" Inlet Outlet Petroleum Fluids 35gpm 120psi
Product Description:
A Diaphragm Pump (Also Known As a Membrane Pump) Is a Positive Displacement Pump That Uses a Combination of the Reciprocating Action of a Rubber, Thermoplastic or Teflon Diaphragm and Suitable Valves on Either Side of the Diaphragm (Check Valve, Butterfly Valves, Flap Valves, or Any Other Form of Shut-off Valves) to Pump a Fluid.
The Listing Is About 35 Gpm Air-operated Double Diaphragm Pump with 1 Inch Inlet and Outlet. This Powerful Air-operated Double Diaphragm Pump Qby4-25l Features a 1in. Inlet and 1in. Outlet Capable of Pumping up to 35 Gallons/Min at Temperatures up to 150 Degrees F.
Application:
Perfect for Use with Water. Ideal for Use with Low Viscosity Petroleum Fluids Including Diesel, Kerosene, Motor Oil and some Waste Oil.
Warning!
Can Not Use for Corrosive Liquid.
Working Principle:
In the Pump Two Symmetrical Working Chamber Each Equipped with a Diaphragm, the Center Link Will Be Integrated into One.compressed Air from the Pump Inlet into the Valve, Through the Valve Body to Introduce Compressed Air into One of the Chamber to Promote Movement of the Diaphragm Chamber, While the Other Chamber Gas Emissions. Once the End of the Stroke Is Reached, the Gas Distribution Mechanism Automatically Introduces Compressed Air into the Other Working Chamber to Push the Diaphragm in the Opposite Direction so That the Two Diaphragms Move Back and Forth in Unison.
Feature:
Brand New with Top Quality
Air-operated Double Diaphragm Pump
With 1 Inch Inlet and Outlet
1/2 Inch Air Inlet
1/8 Inch Max Diameter Suspended Solids
Perfect for Use with Water
Ideal for Use with Low Viscosity Petroleum Fluids
Solid Construction
Specifications:
Product: Diaphragm Pump
Type: Double Diaphragm
Operation Type: Air-operated
Model: Qby4-25l
Body Material: Aluminum
Inlet Port: 1 Inch (25 Mm)
Outlet Port: 1 Inch (25 Mm)
Air Inlet Size: Npt 1/2 Inch (12.7 Mm)
Average Air Consumption: 38 Cfm
Max Flow Rate: 9 M3/H (35 Gpm)
Suction: 0-5 M (0-16.4 Ft)
Max Suspended Solids: 3 Mm (1/8 Inch)
Max Head: 84 M (275.59 Ft)
Max Psi: 120 Psi
Max Temp.: 150 ℉
Self-priming Dry: 3 M (10 Ft)
Self-priming Wet: 4.6 M (15 Ft)
Manifold Connection: Single
Valve Type: Ball
Ball Material: Acetal
Check Seat Material: Polypropylene
Diaphragm Material: Nitrile
Package Size: 35 X 26 X 23 Cm (13.78 X 10.24 X 9.06 Inch)
Gross Weight: 9.86 Kg (21.74 Lbs)
Package Content:
1 X Air-operated Double Diaphragm Pump
1 X Product Manual
