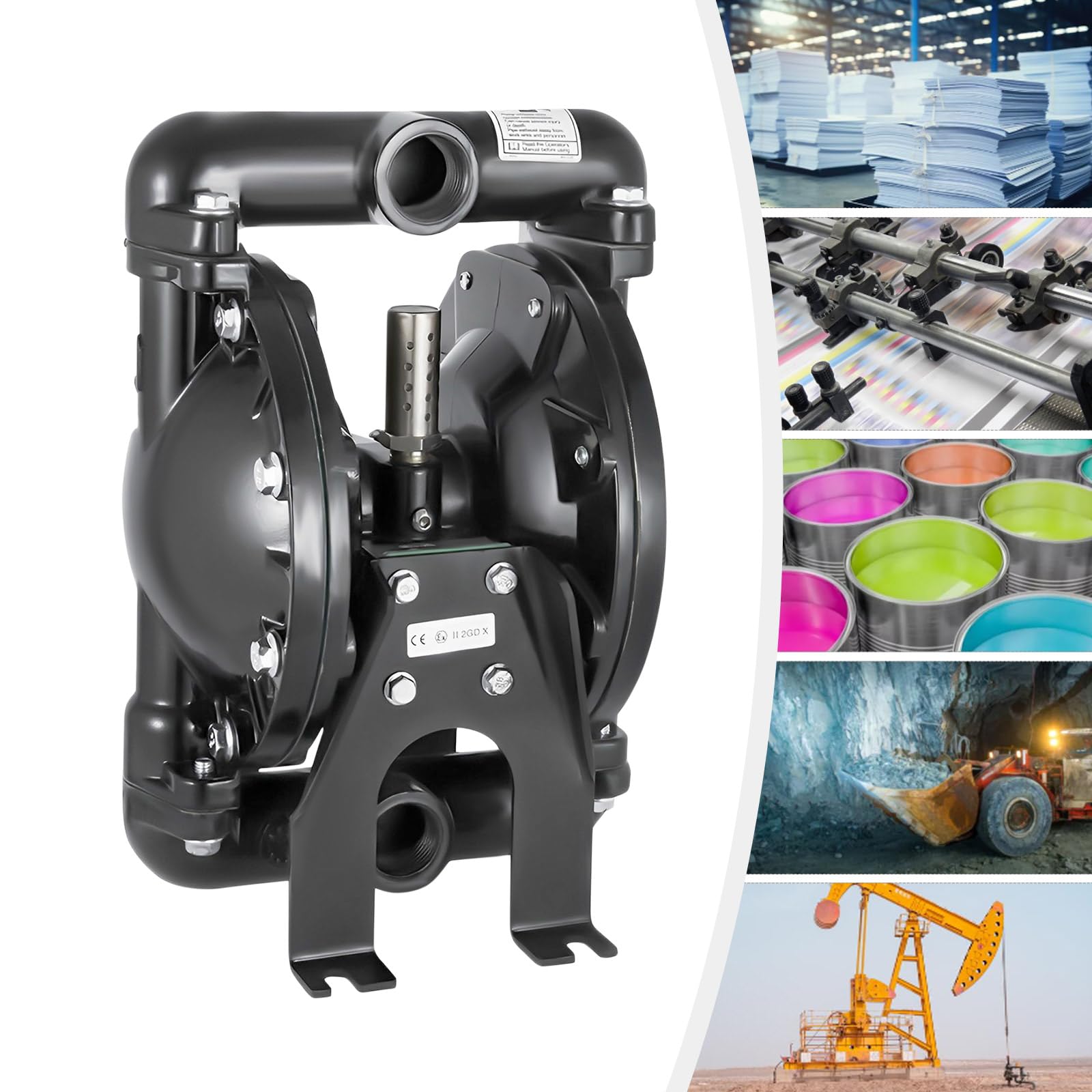

Specification AgeRangeDescription : adult Brand : WTIOPJ BulletPoint1 : A Diaphragm Pump (Also Known As a Membrane Pump) Is a Positive Displacement Pump That Uses a Combination of the Reciprocating Action of a Rubber, Thermoplastic or Teflon Diaphragm and Suitable Valves on Either Side of the Diaphragm (Check Valve, Butterfly Valves, Flap Valves, or Any Other Form of Shut-off Valves) to Pump a Fluid. BulletPoint2 : The Listing Is About 35 Gpm Air-operated Double Diaphragm Pump with 1 Inch Inlet and Outlet. This Powerful Air-operated Double Diaphragm Pump Qby4-25l Features a 1in. Inlet and 1in. Outlet Capable of Pumping up to 35 Gallons/Min at Temperatures up to 150 Degrees F. BulletPoint3 : Application: Perfect for Use with Water. Ideal for Use with Low Viscosity Petroleum Fluids Including Diesel, Kerosene, Motor Oil and some Waste Oil. But Can Not Use for Corrosive Liquid! BulletPoint4 : 【Parameter】Type: Double diaphragm; Operation Type: Air-operated; Model: QBY4-25L; Body Material: Aluminum. With 1 inch inlet and outlet; 1/2 Inch air inlet; 1/8 Inch max diameter suspended solids. 【All-Bolted Construction】This diaphragm pump is constructed with all-bolted construction for leak-free fluid handling. Mounting brackets for convenient installation. BulletPoint5 : 【Sealed Ball Valve】Easy access to ball checks and fluid caps for maintenance and repairs. Motor design delivers optimum air efficiency. 【Application】Can be widely used in Mining industry, pharmaceutical industry, construction industry, petrochemical industry, water treatment, etc. Perfect for use with water; Ideal for use with low viscosity petroleum fluids. Color : Black ExternallyAssignedProductIdentifier : 7685550092281 ExternallyAssignedProductIdentifier1 : 0757582811530 ExternallyAssignedProductIdentifier2 : 757582811530 GpsrSafetyAttestation : 1 ItemName : Air-Operated Double Diaphragm Pump, 1 inch Inlet/Outlet Pneumatic Waste Oil Pump, 120 PSI 35GPM Industrial Use Chemical Transfer Pump for Water, Petroleum, Diesel, Oil & Low Viscosity Fluids ItemPackageDimensions_Height : 23 inches ItemPackageDimensions_Length : 35 inches ItemPackageDimensions_Width : 26 inches ItemPackageQuantity : 1 ItemTypeKeyword : industrial-diaphragm-pumps Manufacturer : DengdongD Material : Aluminum ModelName : FHVQRCUNS ModelNumber : diaphragm pumps NumberOfBoxes : 1 NumberOfItems : 1 PartNumber : 2765811 ProductDescription : Working Principle: In the Pump Two Symmetrical Working Chamber Each Equipped with a Diaphragm, the Center Link Will Be Integrated into One.compressed Air from the Pump Inlet into the Valve, Through the Valve Body to Introduce Compressed Air into One of the Chamber to Promote Movement of the Diaphragm Chamber, While the Other Chamber Gas Emissions. Once the End of the Stroke Is Reached, the Gas Distribution Mechanism Automatically Introduces Compressed Air into the Other Working Chamber to Push the Diaphragm in the Opposite Direction so That the Two Diaphragms Move Back and Forth in Unison.
Feature: Brand New with Top Quality Air-operated Double Diaphragm Pump With 1 Inch Inlet and Outlet 1/2 Inch Air Inlet 1/8 Inch Max Diameter Suspended Solids Perfect for Use with Water Ideal for Use with Low Viscosity Petroleum Fluids Solid Construction
Specifications: Product: Diaphragm Pump Type: Double Diaphragm Operation Type: Air-operated Model: Qby4-25l Body Material: Aluminum Inlet Port: 1 Inch (25 Mm) Outlet Port: 1 Inch (25 Mm) Air Inlet Size: Npt 1/2 Inch (12.7 Mm) Average Air Consumption: 38 Cfm Max Flow Rate: 9 M3/H (35 Gpm) Suction: 0-5 M (0-16.4 Ft) Max Suspended Solids: 3 Mm (1/8 Inch) Max Head: 84 M (275.59 Ft) Max Psi: 120 Psi Max Temp.: 150 ℉ Self-priming Dry: 3 M (10 Ft) Self-priming Wet: 4.6 M (15 Ft) Manifold Connection: Single Valve Type: Ball Ball Material: Acetal Check Seat Material: Polypropylene Diaphragm Material: Nitrile Package Size: 35 X 26 X 23 Cm (13.78 X 10.24 X 9.06 Inch) Gross Weight: 9.86 Kg (21.74 Lbs)
Package Content: 1 X Air-operated Double Diaphragm Pump 1 X Product Manual ProductSiteLaunchDate : 2024-10-26T07:15:26.858Z Size : One Size UnitCount : 1 UnspscCode : 40151500
