Specification
AgeRangeDescription : adult
AirFlowCapacity : 35 gallons_per_minute
Brand : sertheha
BulletPoint1 : Diaphragm Pumps: A Diaphragm Pump (Also Known As a Membrane Pump) Is a Positive Displacement Pump That Uses a Combination of the Reciprocating Action of a Rubber, Thermoplastic or Teflon Diaphragm and Suitable Valves on Either Side of the Diaphragm (Check Valve, Butterfly Valves, Flap Valves, or Any Other Form of Shut-off Valves) to Pump a Fluid.
BulletPoint2 : Body Material: Aluminum,Inlet Port: 1 Inch (25 Mm),Outlet Port: 1 Inch (25 Mm),Air Inlet Size: Npt 1/2 Inch (12.7 Mm),Average Air,Consumption: 38 Cfm,Max Flow Rate: 9 M3/H (35 Gpm),Suction: 0-5 M (0-16.4 Ft).
BulletPoint3 : With 1 Inch Inlet And Outlet: The listing is about 35 GPM Air-Operated Double Diaphragm Pump with 1 Inch Inlet And Outlet. This powerful air-operated double diaphragm pump QBY4-25L features a 1in. inlet and 1in. outlet capable of pumping up to 35 gallons/min at temperatures up to 150 degrees F.
BulletPoint4 : Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
BulletPoint5 : This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Color : Black
ExternallyAssignedProductIdentifier : 7617532131589
ImportDesignation : Imported
IncludedComponents1 : 1 x Air-Operated Double Diaphragm Pump
IncludedComponents2 : 1 x Product Manual

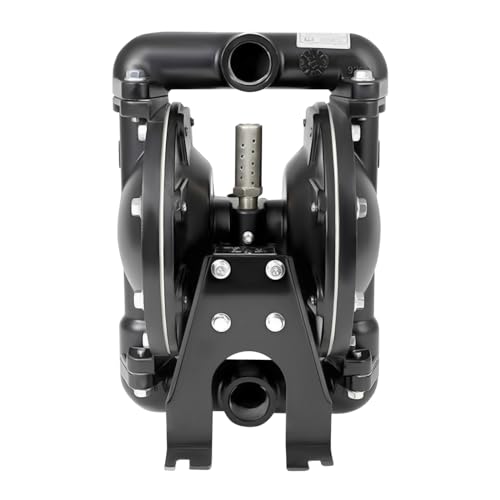

ItemName : Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum Air Diaphragm Pump 35 GPM Max 120PSI for Industrial Use
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-diaphragm-pumps
Manufacturer : sertheha
Material : Aluminum
MaximumPressure : 120 pounds_per_square_inch
ModelName : Diaphragm Pumps
ModelNumber : QBY4-25L
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PartNumber : Diaphragm Pumps
PowerSourceType : Handheld
ProductDescription :

Working Principle:

In the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one. compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions.

Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison.

Feature:

Air-operated Double Diaphragm Pump

With 1 Inch Inlet and Outlet

1/2 Inch Air Inlet

1/8 Inch Max Diameter Suspended Solids

Perfect for Use with Water

Ideal for Use with Low Viscosity Petroleum Fluids

Specification:

Product: Diaphragm Pump

Type: Double Diaphragm

Operation Type: Air-operated

Model: Qby4-25l

Body Material: Aluminum

Inlet Port: 1 Inch (25 Mm)

Outlet Port: 1 Inch (25 Mm)

Air Inlet Size: Npt 1/2 Inch (12.7 Mm)

Average Air Consumption: 38 Cfm

Max Flow Rate: 9 M3/H (35 Gpm)

Suction: 0-5 M (0-16.4 Ft)

Max Suspended Solids: 3 Mm (1/8 Inch)

Max Head: 84 M (275.59 Ft)

Max Psi: 120 Psi

Max Temp.: 150 ℉

Self-priming Dry: 3 M (10 Ft)

Self-priming Wet: 4.6 M (15 Ft)

Manifold Connection: Single

Valve Type: Ball

Ball Material: Acetal

Check Seat Material: Polypropylene

Diaphragm Material: Nitrile

Package Size: 35 X 26 X 23 Cm (13.78 X 10.24 X 9.06 Inch)

Gross Weight: 9.86 Kg (21.74 Lbs)

Package Content:

1 x Air-operated Double Diaphragm Pump

1 x Product Manual

ProductSiteLaunchDate : 2022-09-09T09:18:11.842Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40151500
WarrantyDescription : 90days
