Specification
Brand : Garosa
BulletPoint1 : Using MCU (8MB for SRAM) and 4MB Flash, based on eCos operating system. Passed FCC_CE_RoHS_SRRC_REACH certification.
BulletPoint2 : NETWORK PROTOCOLS: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for SSL
BulletPoint3 : Serial Interface Parameters: Number Of Serial Ports: 1 (RS232 / 485/422).Interface Standard: RS232: DB9 pin type.RS485 / RS422: 5.08mm terminal block.Baud Rate: 600-230400bps.Data Bits: 8.Stop Bits: 1, 2.Parity: None, Even, Odd, Space, Mark.
BulletPoint4 : VIRTUAL SERIAL PORT SOFTWARE: For Windows XP / for Vista / 7/8/10 (32bit 64bit), for Win Server 2003/2008/2012. Configuration Method: WEB page, CLI command, for XML file , Telnet configuration, IOTService software
BulletPoint5 : Serial Interface Parameters: Number Of Serial Ports: 1 (RS232 / 485/422) Interface Standard: RS232: DB9 pin type RS485 / RS422: 5.08mm terminal block Baud Rate: 600-230400bps Data Bits: 8 Stop Bits: 1, 2 Parity: None, Even, Odd, Space, Mark Wi-Fi Interface Parameters: Standard: 802.11 b / g / n Network Mode: for STA / for AP / for STA + AP Network Protocol: For TCP / for UDP, etc. Maximum Number Of Connections: Maximum 15 STA
BulletPoint6 : Dual DC power inputs with power jack and terminal block
BulletPoint7 : Versatile TCP and UDP operation modes
BulletPoint8 : 0 to 60°C operating temperature
CompatibleDevices : Devices with RS-232 or Fiber Optic ports
CompatibleDevices1 : RS485 Devices
CompatibleDevices2 : MQTT Devices
ConnectorType : Serial Adapter
CurrentRating : 1 amps
DataLinkProtocol : Ethernet
DataTransferRate : 100 megabits_per_second
ExternallyAssignedProductIdentifier1 : 0613739924334
ExternallyAssignedProductIdentifier2 : 613739924334
ExternallyAssignedProductIdentifier3 : 5054533172272
ExternallyAssignedProductIdentifier4 : 9786095013989
ExternallyAssignedProductIdentifier5 : 5054484172277
ExternallyAssignedProductIdentifier6 : 8716065294996
ExternallyAssignedProductIdentifier7 : 0837324002287
ExternallyAssignedProductIdentifier8 : 8373240022876
ExternallyAssignedProductIdentifier9 : 00837324002287
FinishType : Transparent
HardwareInterface : ethernet
IncludedComponents : Device server
InputVoltage : 5 volts
ItemDisplayDimensions_Height : 3 inches
ItemDisplayDimensions_Length : 8 inches
ItemDisplayDimensions_Width : 5 inches
ItemName : HF2211, HF2211 Serial Device Server, RS232/485/422 to WiFi and Ethernet DTU Short Message Communication Module, 5-36VDC Serial Data, Device Servers
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : device-servers
Manufacturer : Garosa
Material : Unspecified
ModelName : Garosa3idsbqyxnu
ModelNumber : Garosa3idsbqyxnu
NumberOfItems : 1
NumberOfPorts : 1
PartNumber : Garosa3idsbqyxnu
PowerPlugType : type_c_2pin_eu
ProductDescription : Feature:
1. Support routing / bridge mode network architecture.
2. Support webpage mode, PC software easy configuration.
3. Support data for TLS / for AES / for DES3 security encryption configuration.
4. Support web OTA upgrade.

Specification:
Item Type: HF-2211 Serial Port Server
Model: HF-2211
Input Voltage: Wide voltage 5 36VDC
Size: Approx. 95 x 65 x 25mm / 3.7 x 2.6 x 1in
Working Temperature: -45-85
Interface Form: Ф5.5 x 2.1mm socket and 5.08mm terminal block
Working Current: 200mA
Power Consumption: <700mW
WiFiSAP
Core Resources:
Operating System: For Ecos
FLASH Resources: 4MB
: 8MB
Ethernet Interface Parameters:
Ethernet Interface Form: 1 RJ45
Interface Standard: 10/100 Base-T auto-negotiation
Network Port : Static: 8KV discharge, 15KV air discharge
Network Protocols: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP
Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for SSL
Network technical parameters
Working Mode: TCP Server TCP Client UDP unicast UDP multicast
UDP broadcast

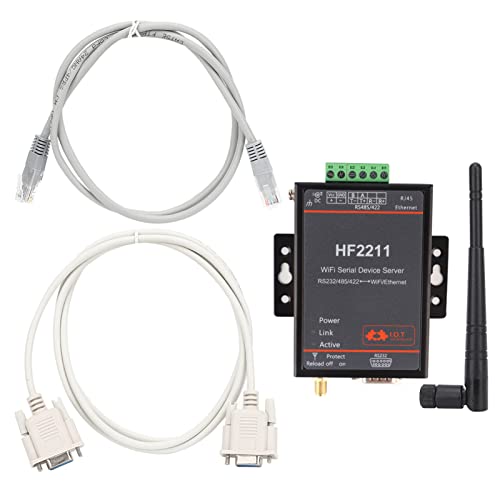

Package List:
1 x Serial Network Server
1 x Serial Cable
1 x Network Cable
1 x WIFI Rubber Antenna

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

ProductSiteLaunchDate : 2023-06-10T17:02:54.751Z
Size : RS-232
SpecificUsesForProduct : Industrial
Style : Classic
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43220000
WarrantyDescription : Limited warranty - Lifetime
WarrantyType : Limited
