Specification
Brand : Deeoee
BulletPoint : 1.54inch e-Paper Module 200x200 E-Ink Display Screen 2-color Black & White SPI Wide Viewing Angle Supports Partial Refresh
BulletPoint1 : The USBCAN analyzer can be used as a standard CAN node, which is a powerful tools integrated with CAN bus product development, CAN bus device testing, data analysis
BulletPoint2 : Adopt independent DC-DC power supply module for optoelectronic isolation, so that the product has strong anti-interfere capability, greatly improve the reliability of the system used in harsh environment
BulletPoint3 : PC can use this USBCAN debugger to connect with a standard CAN network via USB bus, so as to build CAN core control unit in fieldbus test lab, industrial control, intelligent building, automotive electronics to achieve data processing, data collection, data communication
BulletPoint4 : Compatible with ZLG software and support secondary development.
BulletPoint5 : Adopt independent DC-DC power supply module for optoelectronic isolation, so that the product has strong anti-interfere capability, greatly improve the reliability of the system used in harsh environment.
Color : default
ExternallyAssignedProductIdentifier : 4862440193874
ExternallyAssignedProductIdentifier1 : 0739227466299
ExternallyAssignedProductIdentifier2 : 739227466299
FinishType : Powder coated
ItemName : 1.54inch e-Paper Module 200x200 E-Ink Display Screen 2-Color Black & White SPI Wide Viewing Angle Supports Partial Refresh
ItemPackageDimensions_Height : 16.54 inches
ItemPackageDimensions_Length : 42.6 inches
ItemPackageDimensions_Width : 25.32 inches
ItemPackageQuantity : 1
ItemTypeKeyword : desktop-computer-barebones-systems
Manufacturer : Deeoee
Material : paper
ModelName : 3U8G+/C621
ModelNumber : 3U8G+/C621
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : CXXMODULE-10045
ProductDescription :
Overview

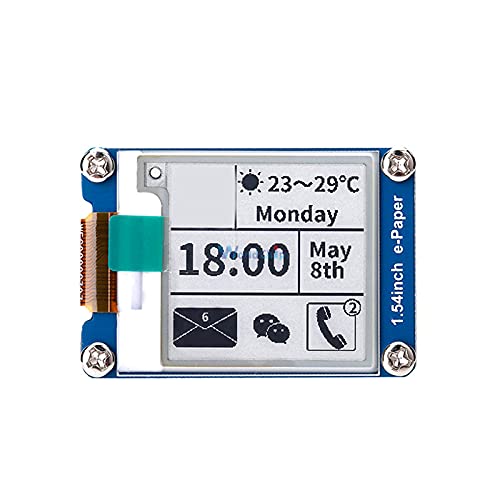

This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with controller boards like for Raspberry Pi/for Arduino/for Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/for Arduino/STM32)
Specifications
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 48mm × 33mm
Display size: 27.6mm × 27.6mm
Dot pitch: 0.138 × 0.138
Resolution: 200 × 200
Display color: black, white
Grey level: 2
Full refresh time: 2s
Refresh power: 26.4mV(typ.)
Standby power: <0.017mW
Viewing angle: >170°

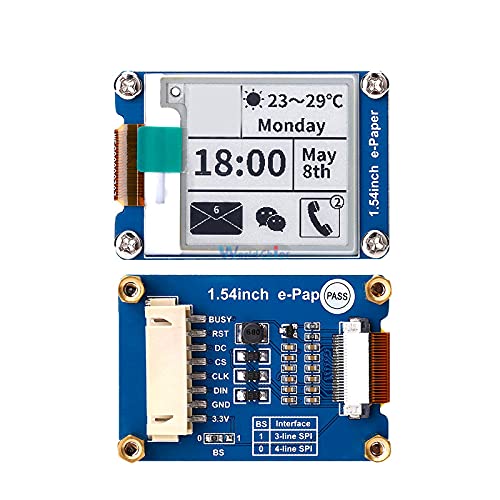

Interface
SYMBOL
DESCRIPTION
VCC
3.3V
GND
Ground
DIN
SPI MOSI pin
CLK
SPI SCK pin
CS
SPI chip selection, low active
DC
Data/Command selection (high for data, low for command)
RST
External reset, low active
BUSY
Busy status output, low active
8096
HIGH QUALITY
ProductSiteLaunchDate : 2021-06-26T18:41:14.654Z
RecommendedUsesForProduct : Laptop
Reusability : Single Use
Size : XT30U-Siyah
StreetDate : 2021-06-04T00:00:01Z
Style : Barebone
SubjectCharacter : American
SupplierDeclaredDgHzRegulation : not_applicable
SurfaceRecommendation : Plastic
UnitCount : 1
UnspscCode : 43211900
Voltage : 500 volts
WarrantyDescription : 1 year
