Specification
AgeRangeDescription : adult
Brand : Generic
BulletPoint : Brand: QORVO
BulletPoint1 : Automatic Fusion Splicing Machine ALK-88 Based on the principle of PAS（Lateral Projection System）, adopt advanced image detection algorithm;
BulletPoint2 : Adopt 4.3 inches 16:9 TFT colorized LCD screen;(4) Typical fusion time: 7sec;
BulletPoint3 : Double core align structure, higher success rate of fusion and lower loss;
BulletPoint4 : Reliability design, strengthen shockproof, dustproof and other functions;
BulletPoint5 : Typical heating time: 25 sec standard, is adjustable (FP-03 60mm);
Color : Black
CompatibleDevices : Docking Station
ConnectorGender : 1
ConnectorType : 1
ExternallyAssignedProductIdentifier : 7320473004958
ExternallyAssignedProductIdentifier1 : 0705419446677
ExternallyAssignedProductIdentifier2 : 705419446677
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

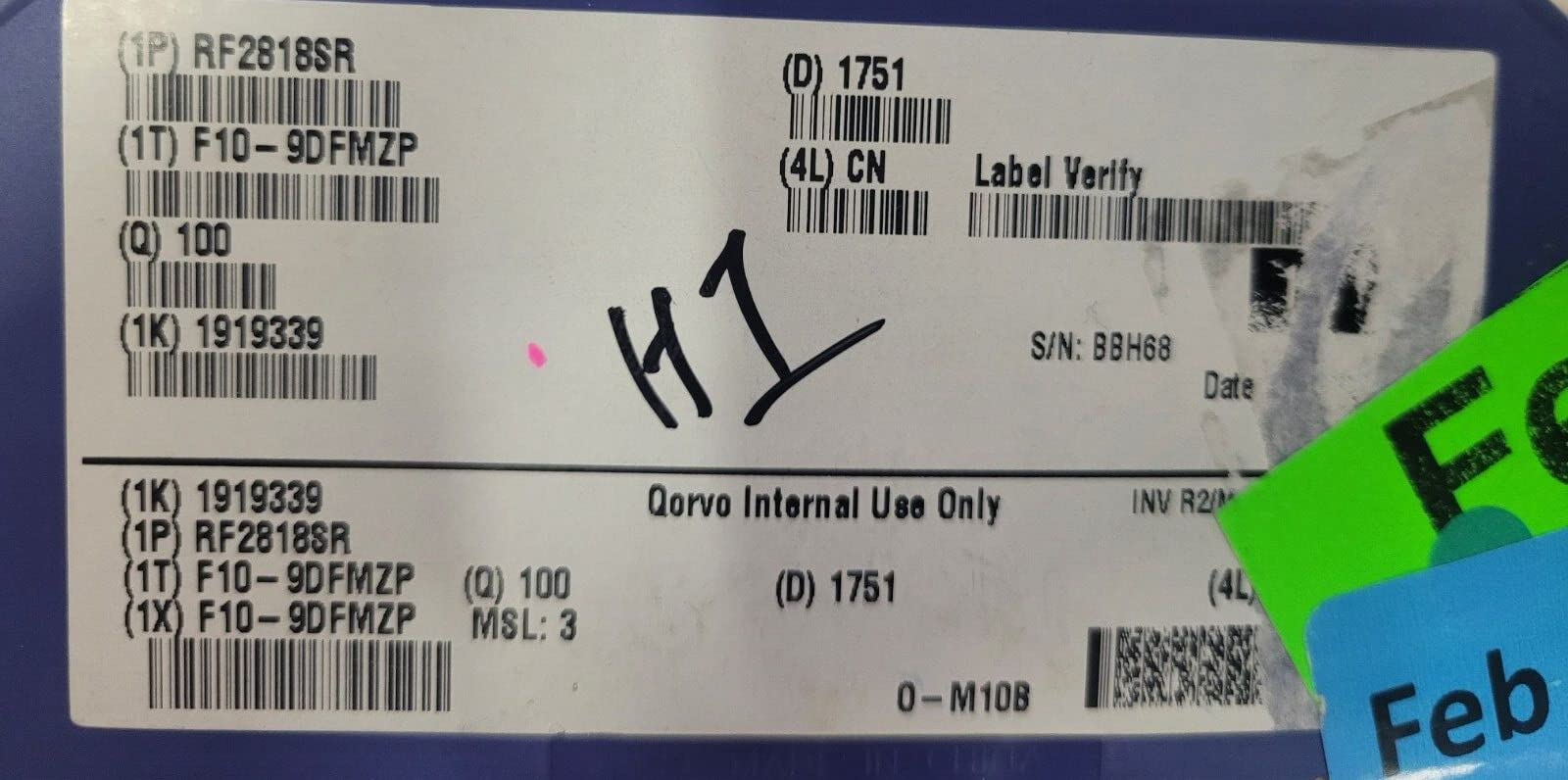

ItemName : (1 PC) RF2818TR7 QORVO
ItemPackageDimensions_Height : 1.97 inches
ItemPackageDimensions_Length : 6.49 inches
ItemPackageDimensions_Width : 5.9 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : electronic-decade-boxes
Manufacturer : Texas Instruments
Material : gold
MeasurementType : Optical Magnification
MinimumOperatingVoltage : 11.1 volts
ModelName : WVCLTVJA
ModelNumber : ALK-88
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : RF2818TR7
PowerSourceType : Battery Powered
ProductDescription :

Main technical indexes

Applicable Optical Fiber Types ：SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift)

Applicable Optical Fiber Core Number：Single core

Applicable Optical Fiber Diameter：Cladding diameter:125μm,Coating diameter:250～900μm

Fusion splice Model：Prestore:40 groups, User define: 80 groups

Average Fusion Splice Loss：0.03dB(SM), 0.02dB(MM), 0.06dB(DS), 0.06dB(NZDS)

Alignment：Both core alignment and c ladding alignment

Echo Loss：Better than 60dB

Fusion splice Duration Time：7sec(typical parameter)

Loss Estimation of Fusion Splice：Exist

Tension Test：2N

Monitor ：4.3 inches colorized LCD, English and Chinese caption.

Optical Fiber Magnification Times：X/Y:115 times, X or Y:230 times

Power Supply：11.1V Lithium battery, 13.5V/5A power adapter, 12V power source available on the car

Battery ：Typically work 180 times(Fusion splicing / Heating), Single battery charge 3Hour，can be recycled 500 times

Splice Results Storage：5000 groups of the latest records

Data Interface：USB2.0

Operating Environment：Elevation:0~4000m, Relative humidity:0~95%,Temperature:-10°C~55°C，Maximum wind speed:12m/s

Storage Environment：Relative humidity:0~95%, Temperature:-40°C~80°C (Except Battery), Temperature:-10°C~30°C (Battery)

Weight of the Equipment：1.6kg(Exclude battery), 1.8kg(Include battery)

Size：150L×130W×128H(mm)

Tube Heater technical indexes

Applicable Optical Fiber Cable Diameter ：250μm, 900μm, 2~3mm

Applicable Sleeve Length：60mm，40mm(FP-03)

Heating time：35sec(60mm)，28sec(40mm)

Heating temperature：120~160°C

ProductSiteLaunchDate : 2023-05-25T01:08:38.043Z
RecommendedUsesForProduct : fiber optic testing, optical fiber communication systems, data transmission, CATV, local area network, and optical fiber sensors
Size : One Size
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 32101600
UpperTemperatureRating : 55 degrees_celsius
