Specification
Brand : Generic
BulletPoint1 : The output has three forms DC0-5V/0-10V/4-20mA to choose from.
BulletPoint2 : Mutual inductive current monitoring with high current detection accuracy and stable performance.
BulletPoint3 : With strong overload capability, high accuracy, high isolation, high security and other functions.
BulletPoint4 : The measured current is AC 0‑10A/20A/50A; 0-100A/150A/200A selectable.
BulletPoint5 : The design of the core structure allows the insulation to withstand voltage up to 2000VAC and hysteresis less than 1% and can be used in strong magnetic field conditions.
IncludedComponents : No

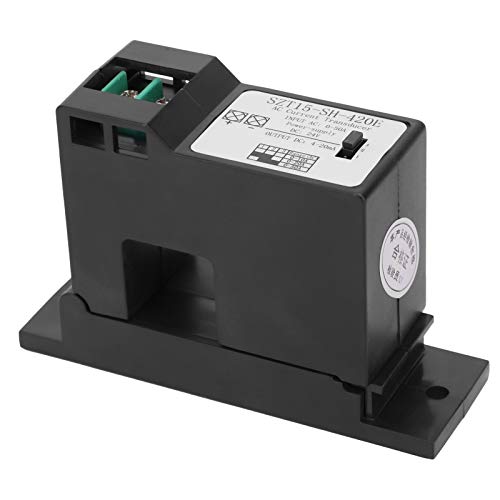

ItemName : AC Transmitter 4-20MA Input 0-50A AC DC Conversion Transformer SZT15-SH-420E
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemTypeKeyword : current-transducers
Manufacturer : Generic
ModelName : Generic5cuhs2zxq8
ModelNumber : Generic5cuhs2zxq8
NumberOfItems : 1
PartNumber : Generic5cuhs2zxq8
ProductDescription : 1. Mutual inductive current monitoring with high current detection accuracy and stable performance.
2. The measured current is AC 0?10A/20A/50A; 0-100A/150A/200A selectable.
3. The output has three forms DC0-5V/0-10V/4-20mA to choose from.
4. With strong overload capability, high accuracy, high isolation, high security and other functions.
5. The core structure design allows the insulation to withstand voltage up to 2000VAC and hysteresis less than 1% and can be used in strong magnetic field conditions.
6. The case is made of self-extinguishing ABS material, easy to install and use.

Specification:
Item Type: AC Transmitter
Material: plastic
Model: SZT15-SH-420E
External power supply: 24 VDC (±10%)
Input current through core: 0-50A AC
Output type (DC):
Voltage output type: 0-5/10V
Current output type: 4-20mA
Minimum switch line: 1.5 ± 0.2 A
Maximum through current overload: 200% (through current cannot exceed 200% of rated value)
Accuracy: 10%
Power consumption: ?1W
Maximum leakage current: ?1mA
Hysteresis: ?1%
Response time: ?200 ms
Working temperature: -30~70?
Humidity: 0-95% (no condensation)
Diameter: Approx. 20 x 20 mm / 0.8 x 0.8 inch
Scope of application: Widely used in the field of industrial automation and various types of current-voltage conversion
scenario
Product description:
The SZT15/SZT20 series AC transmitters can isolate and measure the AC current in the power grid or circuit in real time and convert it into a DC output of 0-5V/0-10V or 4-20mA, which can be adapted to various ADs. It can be connected to various digital central recording systems or to a PLC
