Specification
Brand : Loulensy
BulletPoint1 : Turns on AC or DC devices when input current is sensed
BulletPoint10 : Power Requirements:None,Self-powered
BulletPoint2 : Frequency:40-400Hz
BulletPoint3 : Enclosure Rating:UL,94 V-O flammability rated,ABS plastic housing
BulletPoint4 : Input Ranges:0-200A AC
BulletPoint5 : Operating Temperature:-30 to +70 degrees Centigrade
BulletPoint6 : UL&CSA,CE&Rohs Listed
BulletPoint7 : Maximum Switch Rating:0.3A@135V AC/DC
BulletPoint8 : Trigger Point:0-200A AC continuous
BulletPoint9 : Response Time:250mS or shorter
ConnectivityProtocol : X-10
CurrentRating : 200 amps
ExternallyAssignedProductIdentifier : 6933076215600
InternationalProtectionRating : IP54
ItemName : Loulensy AC Current Switch Transducer Input 1.5A-200A Switching Max 0.3A@135V AC/DC
ItemPackageDimensions_Height : 2.75 inches
ItemPackageDimensions_Length : 3.93 inches
ItemPackageDimensions_Width : 1.58 inches
ItemPackageQuantity : 1
ItemTypeKeyword : current-switches
LightType : led
Manufacturer : Loulensy
Material : Plastic
MountingType : Wall Mount
NumberOfItems : 1
OperatingVoltage : 135 volts
PartNumber : 16K-SP-NO-AL

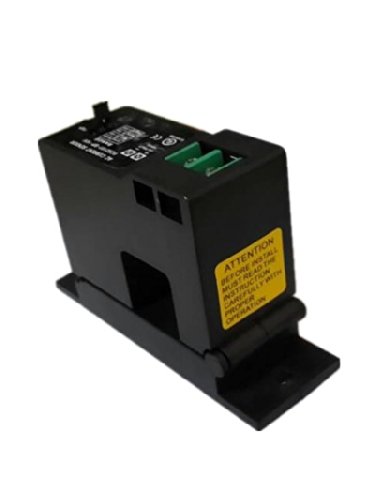

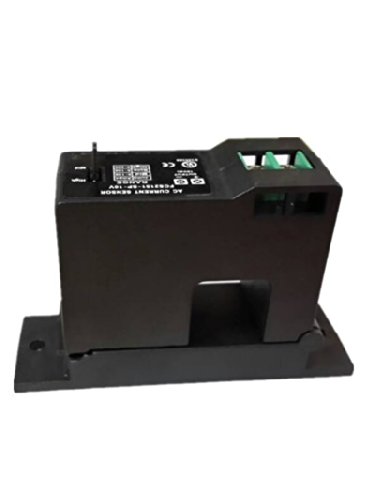

ProductDescription : SZC03 series AC current sensing switch is designed and manufactured to solve the AC current monitoring. It uses the principle of mutual inductance to sense the AC straight-through current, isolate the AC current, and output a normally open to directly control various automation industrial equipment, such as flash, buzzer, relay, single-chip or other power load equipment. Compared with traditional mutual inductors, thermal protectors and other devices, using this device can not only get more accurate and more timely control, but can also greatly simplify the design and reduce cost
Specification: Model: SZC03-NC-AL-CH
Power supply: Not required Rated load: 0.3A@135V AC/DC Input straight-through current: 0.5-200A AC Switch on minimum: 0.5±0.2A Maximum overload of straight-through current: 200% Accuracy: 10% Power consumption: ≤1W Leakage current: ≤1mA Hysteresis: ≤1% Response time: ≤200ms Working environment: -30~70℃, 0-95%RH Dimensions: 62*90*25.5mm / 2.4*3.5*1.0in Hole diameter: 20mm / 0.8in Package weight: Approx. 84g/2.96oz   Package list: 1 * Current Sensing Switch   Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
ProductSiteLaunchDate : 2014-05-30T10:11:35.278Z
SpecificationMet : Rohs Listed
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Limit Switch
SwitchType1 : Limit Switch
SwitchType2 : Temperature Switch
UnitCount : 1
UnspscCode : 39122200
