Specification
BatteriesRequired : 1
Brand : Usmile
BulletPoint1 : No voltage drop and heat on current sensor components
BulletPoint2 : Offset and Sensitivity are calibrated in factory
BulletPoint3 : Continuous current rating: 0~150A DC
BulletPoint4 : VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0
BulletPoint5 : 5V: power supply for HCS-150A board, support 4~13V IN, 17mA
CpsiaCautionaryStatement : no_warning_applicable
ExternallyAssignedProductIdentifier1 : 735980953229
ExternallyAssignedProductIdentifier2 : 0735980953229
Hazmat1 : MANUAL GROUNDING
Hazmat10 : DE_NoAir
Hazmat11 : EG_NoAir
Hazmat12 : ES_NoAir
Hazmat13 : FR_NoAir
Hazmat14 : GB_NoAir
Hazmat15 : IN_NoAir
Hazmat16 : IT_NoAir
Hazmat17 : JP_NoAir
Hazmat18 : MX_NoAir
Hazmat19 : NL_NoAir
Hazmat2 : UN9999
Hazmat20 : PL_NoAir
Hazmat21 : SA_NoAir
Hazmat22 : SE_NoAir
Hazmat23 : SG_NoAir
Hazmat24 : TR_NoAir
Hazmat25 : US_NoAir
Hazmat26 : ZA_NoAir
Hazmat3 : 3
Hazmat4 : AE_NoAir
Hazmat5 : AU_NoAir
Hazmat6 : BE_NoAir
Hazmat7 : BR_NoAir
Hazmat8 : CA_NoAir
Hazmat9 : CN_NoAir
IncludedComponents : 1*Hall effect current sensor

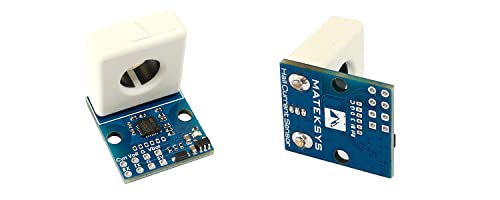

ItemName : Matek 150A Hall Effect Current Sensor for Carbon Fiber FPV Racing Drone Quad Quadcopter Frame
ItemPackageDimensions_Height : 11.2014 centimeters
ItemPackageDimensions_Length : 3.302 centimeters
ItemPackageDimensions_Width : 7.8994 centimeters
ItemTypeKeyword : electronic-component-current-sensors
Manufacturer : Mateksys
ManufacturerMinimumAge : 144
Material : pcb
ModelName : hcs-150a
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : hcs-150a
ProductDescription : No voltage drop and heat on current sensor components
Offset and Sensitivity are calibrated in factory
Continuous current rating: 0~150A DC
Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50
VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0
Power Consumption: 17mA
Voltage offset error at zero current : +-10mV
Curr output voltage error: 5%
Operating Temperatures: -30~80 °C

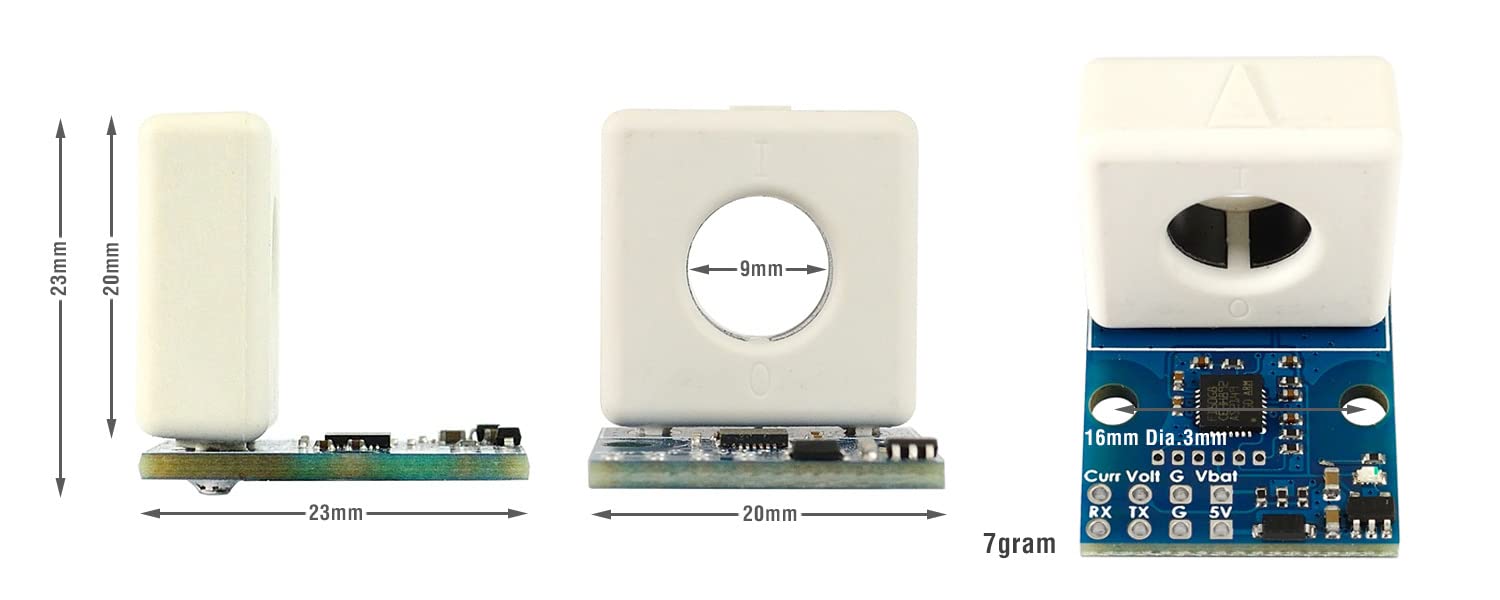

23 * 20* 23mm, 7g

Soldering pads
Vbat: for voltage sense, support 0~69V IN
Volt: = 1/21 Vbat, 0~3.3V out
Curr: Current signal, 0~3.3V out
5V: power supply for HCS-150A board, support 4~13V IN, 17mA
G: GND
TX/RX: for firmware update and configure (to be supported)

Tips
mount Hall sensor far from iron and magnetic material

ProductSiteLaunchDate : 2022-08-29T03:32:03.210Z
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : Unisex Adult
UnspscCode : 45121500
