Brand : Oumefar
BulletPoint : FITS FOR 7834-77-3001 7834-77-3000 7834-77-3002 7834-77-7001 7834-77-6001 7834-77-6002 7834-77-6102 7834-77-6100 7834-77-6101 7834-70-5002 7834-70-5000
BulletPoint1 : 【Multiple Commands】: There are 6 Commands of our 16 channel RS485 relay module board, those commands are "Open", "close", "Momentary", "Self-locking", "Interlock" and "Delay", users can make good use of those 6 commands
BulletPoint2 : 【Supporting Numerous Devices】: Under the MODBUS command mode, this MODBUS RTU PLC controller serial port switch relay module can support up to 64 devices in parallel, so our RS485 relay module is an ideal choice for users to choose
BulletPoint3 : 【MODBUS & RTU Mode】: MODBUS commands can be made serial HyperTerminal (serial assistant) or "Modbus Poll" enter. Our DC 12V MODBUS RTU relay module has MODBUS RTU command control mode, and the maximum delay is 255 seconds
BulletPoint4 : 【Standby Current Range】: Standby current (all relays closed) is 11MA, 1 relay open 40MA, 2 relays open 67MA, 3 relays open 95MA, 4 relays open 121MA, 5 relays open 147MA, 6 relays open 173MA, 7 relays open 198MA, 8 relays open 222MA...
BulletPoint5 : 【Specifications】: Working Voltage: DC 12V Standby Current: 11MA Load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC Size: Approx. 17*6.5*2cm / 6.7*2.5*0.8in Weight: Approx. 224g/7.9oz
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 8757736413964
ExternallyAssignedProductIdentifier1 : 0647567192818
ExternallyAssignedProductIdentifier2 : 647567192818
ExternallyAssignedProductIdentifier3 : 00712662123187

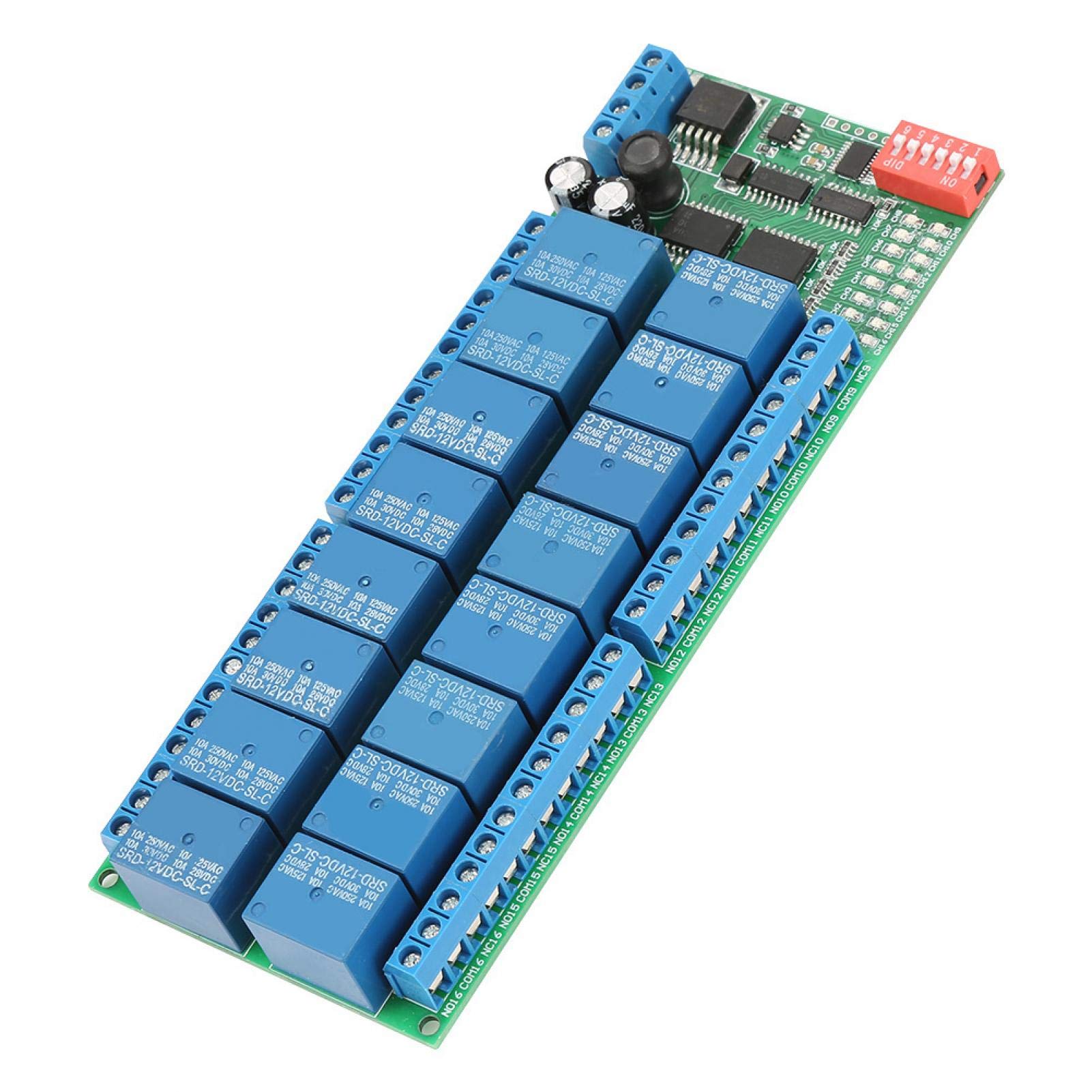

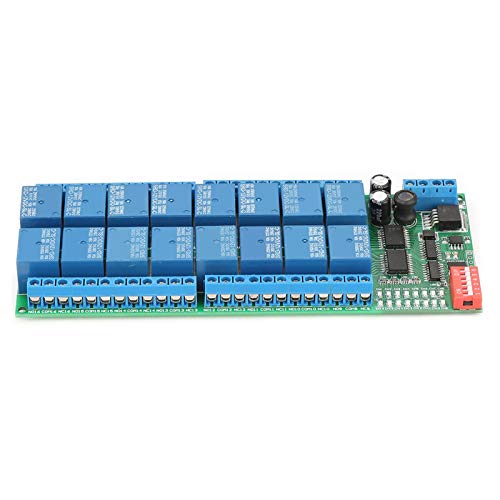

ItemName : Oumefar DC 12V 16 Channel RS485 Relay Module Board 6 Commands MODBUS RTU PLC Controller Serial Port Switch
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 18 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : current-monitoring-relays
Manufacturer : Oumefar
Material : Copper
ModelNumber : a15052000ux0119
MountingType : Panel Mount
NumberOfItems : 1
PartNumber : Oumefar5xt0q3saow
ProductDescription :

Features:

1. Working voltage is  DC 12V.

2. Standby current (all relays closed) is 11MA, 1 relay open 40MA, 2 relays open 67MA, 3 relays open 95MA, 4 relays open 121MA, 5 relays open 147MA, 6 relays open 173MA, 7 relays open 198MA, 8 relays open 222MA...

3. 6 Commands: "Open", "close", "Momentary", "Self-locking", "Interlock" and "Delay".

4. MODBUS RTU command control mode, the maximum delay is 255 seconds.

5. MODBUS commands can be made serial HyperTerminal (serial assistant) or "Modbus Poll" enter.

6. Under the MODBUS command mode, this relay module can support up to 64 devices in parallel.



Specification:

Working Voltage: DC 12V

Standby Current: 11MA

Load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

Size: Approx. 17*6.5*2cm / 6.7*2.5*0.8in

Weight: Approx. 224g/7.9oz

Typical applications:

MODBUS command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control.

WIring DIagram:

1. DC 12V control circuit,Wiring diagram below. "LOAD" may be camera,LED lights, fans, motors and other DC 12V equipment.

2. DC 1-100V or AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipment.



Package list:

1 * 16 Channel RS485 Relay
