Specification
Brand : Walfront
BulletPoint : Current Relay
BulletPoint1 : Self-powered-No external power supply required. Action current 0.2-30A AC, adjustable with a potentiometer.
BulletPoint2 : LED Indicator-LED indicator can conveniently and intuitively indicate the working status of the switch.
BulletPoint3 : Contactless Electronic Switch-High-power MOS tube contactless electronic switch. The switch has no limit on the number of opening and closing, and the speed reaches the ms level.
BulletPoint4 : High Performance-The outer casing is made of self-extinguishing material ABS. Straight-through structure design, isolation withstand voltage up to 2000V. Hysteresis is less than 1% and can be used under strong magnetic conditions.
BulletPoint5 : Widely Application-This Current Sensing Switch is suitable for AC current measurement and monitoring, AC motor overload , electronic switch of automatic control system and so on.
BulletPoint6 : Switch Electrical Current SELF POWERED: This current sensor relay is self powered, it is no external power supply required. And its action current is 0.2-30A AC, adjustable with a potentiometer.
ConnectivityProtocol : X-10
ConnectorType : Solder
CurrentRating : 16 amps
ExternallyAssignedProductIdentifier : 10662072611606
ExternallyAssignedProductIdentifier1 : 0700604665437
ExternallyAssignedProductIdentifier2 : 700604665437
IncludedComponents : Replacement Part
InternationalProtectionRating : IP30
ItemName : Miniature Current Switch Normally Open Amp Sensor Monitoring Relay Adjustable 0.2-30A SZC23-NO-AL-CH AC Current Sensing Switch
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 7 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : current-monitoring-relays
Manufacturer : Walfront
Material : Copper
MaximumSwitchingCurrent : 20 amps
MaximumSwitchingVoltage : 120 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : LANTRO JSeugoznq0wh
NumberOfItems : 1
NumberOfTerminals : 3
OperatingVoltage : 240 volts
OperationMode : Automatic
PartNumber : Walfronty3u467rh0m6020
ProductDescription : SZC23 series AC current sensing switch is designed and manufactured to solve the AC current monitoring. It uses the principle of mutual inductance to sense the AC straight-through current, isolate the AC current, and output a normally open or normally closed switching to directly control various automation industrial equipment, such as flash, buzzer, relay, single-chip or other power load equipment. Compared with traditional mutual inductors, thermal protectors and other devices, using this device can not only get more accurate and more timely control, but can also greatly simplify the design and reduce costs.

Features: Specification:
Model: SZC23-NO-AL-CH
Power supply: Not required
Rated load: ≤ 0.5A@240V AC/DC
Input current: 0.2-30A AC
Switch on minimum: 0.5±0.2A
Maximum overload:
Leakage current: ≤0.1A
Accuracy: 1%
Hysteresis: ≤1%
Response time: ≤200ms
Repeatability:
Working temperature: -20~60℃
Waterproof: IP30

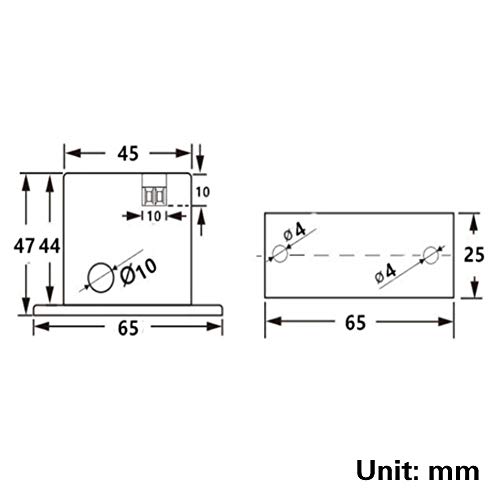

Dimensions: 65*25*47mm / 2.56*0.98*1.85in
Hole diameter: 10mm / 0.4in
Package weight: Approx. 56g/2.0oz

Package list:
1 * Current Sensing Switch

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
2. Please allow slight error due to manual measurement. Thanks for your understanding.

ProductSiteLaunchDate : 2021-11-21T00:00:00.000Z
SpecificationMet : Ms
SpecificationMet1 : CSA
SpecificationMet2 : UL
StreetDate : 2017-03-12T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType1 : Limit Switch
SwitchType2 : Temperature Switch
UnitCount : 1
UnspscCode : 39122200
Voltage : 120 volts
