Specification
Brand : Fluke
BulletPoint1 : Peak Hold: Automatically hold the test value at a high point. Press the PEAK button in the test mode until the PEAK lamp lights up. The peak hold function is enabled; Data Hold: Press HOLD key to hold data in test mode, "HOLD" symbol display; Data review: "MR" symbol indicates that the data can be read up and down; Overflow display: Over range overflow function: "OLA" symbol display
BulletPoint2 : Line voltage: Line test below 60KV (with 5 sections insulation rod operation); Voltage alarm: When the battery voltage is lower than 4.8V, the battery voltage is low;Insulation strength: Section 5 between insulation rod and high-voltage detector shell: AC 100kV/rms; between high-voltage detector shell and iron core: AC1000V/rms
BulletPoint3 : Resolution: 0.01mA; Accuracy: ±1%rdg±5dgt (23°C±5°C, 80%r or less);Measurement method: Clamp CT, non-contact measurement, integral method; Automatic shutdown: 15 minutes or so automatically shut down
BulletPoint4 : The ammeter is composed of a high voltage detector and five high-voltage insulated rods. The insulation rod is light, with features such as moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation, and detachability. Instrument has peak hold, data retention, data storage (99 groups) and other functions
BulletPoint5 : ETCR9100 high and low voltage clamp ammeter for low voltage AC leakage current and current measurement up to 60kV. Range: 0.00mA~600A, jaw size is Φ33mm, special alloy for current clamp, magnetic shield technology, strong anti-jamming ability, ensure Measurement accuracy and stability
Color : Multicolor
ExternallyAssignedProductIdentifier : 6068183201151
ExternallyAssignedProductIdentifier1 : 0744370591422
ExternallyAssignedProductIdentifier2 : 744370591422
ExternallyAssignedProductIdentifier3 : 00095969786751
IncludedComponents : FLUKE-17XX IFLEXI 1500A 12IN, 4 PACK
ItemDisplayWeight : 0.02 pounds

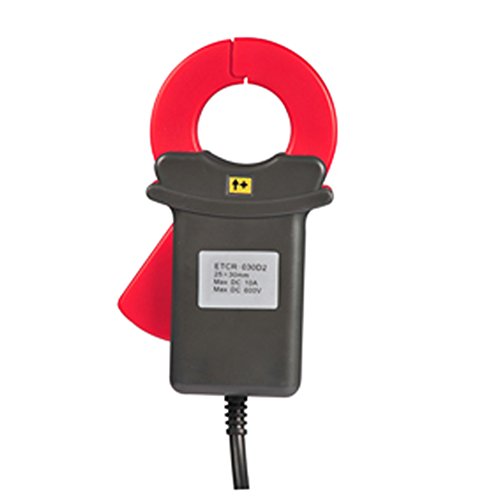

ItemName : SSEYL ETCR030D Clamp DC Current Sensor ETCR-030D
ItemPackageDimensions_Height : 24.8 centimeters
ItemPackageDimensions_Length : 5.8 centimeters
ItemPackageDimensions_Width : 18.4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : current-clamps
Manufacturer : ETCR
Material : Plastic
MeasurementType : Ammeter
ModelNumber : ETCR030D
NumberOfBoxes : 1
NumberOfItems : 4
PackageLevel : unit
PartNumber : ETCR030D
PowerSourceType : Battery Powered
ProductDescription :
*Function Measurement of DC current, DC leakage current
*Test mode Clamp CT
*Power Supply 9V DC±1VDC
*Rated Power 20mA max
*Clamp Size 25mm×30mm
*Range 0.00A -10A DC
*Resolution 0.01A DC
*Accuracy ±1.0%FS(23℃±2℃, below 70%RH, keep the wire be in the center of clamp)
*Coils Turn 1: 800
*Signal Output 2.5mV/10mA
*Output Interface Red wire: positive power input; Yellow wire: ground; White wire: positive signal output
*Output Wire Length 2m
*Geomagnetic interference About 3mA
*Measured Wire Position Approximately in the geometric center of the clamp
*Line Voltage Under 600V DC measurement
*Dimension 115mm×70mm×33mm
*Weight 180g
*Working Environment -15℃-45℃; below 80%rh
*Storage Environment -10℃-60℃; below 70%rh
*Insulation Strength AC3700V/rms (between core and shell)
*Safety Rules IEC1010-1, IEC1010-2-032, Pollution degree 2, CAT Ⅲ(600V)
ProductSiteLaunchDate : 2013-07-13T07:00:00.000Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 4
