Brand : RFS
BulletPoint1 : Made of brass material and conform to DIN 2353, ISO 8434-1, and DIN EN 3851 standards. Extensively used in high working pressure and temperature applications.
BulletPoint2 : Consists of a fitting body, nut and sleeve. The sleeve provides extra sealing capability.
BulletPoint3 : Ensure an excellent and reliable sealing in high-pressure applications with strong mechanical grip design. Easy to use, fewer leak paths, dampen vibrations, ease of use and installation, and high durability.
BulletPoint4 : L series single ferrule with working pressure up to 500 bars (7200 PSI).
BulletPoint5 : Male connector with one compression end and one male NPT end to be inserted into a female connector or tubing.
ConnectorType : Cross
Department : womens
ExteriorFinish : Brass
ExternallyAssignedProductIdentifier : 8886481750281
ExternallyAssignedProductIdentifier1 : 0767531851937
ExternallyAssignedProductIdentifier2 : 767531851937
GemType : steel
ItemDisplayDimensions_Length : 60 centimeters
ItemDisplayWeight : 0.21 pounds

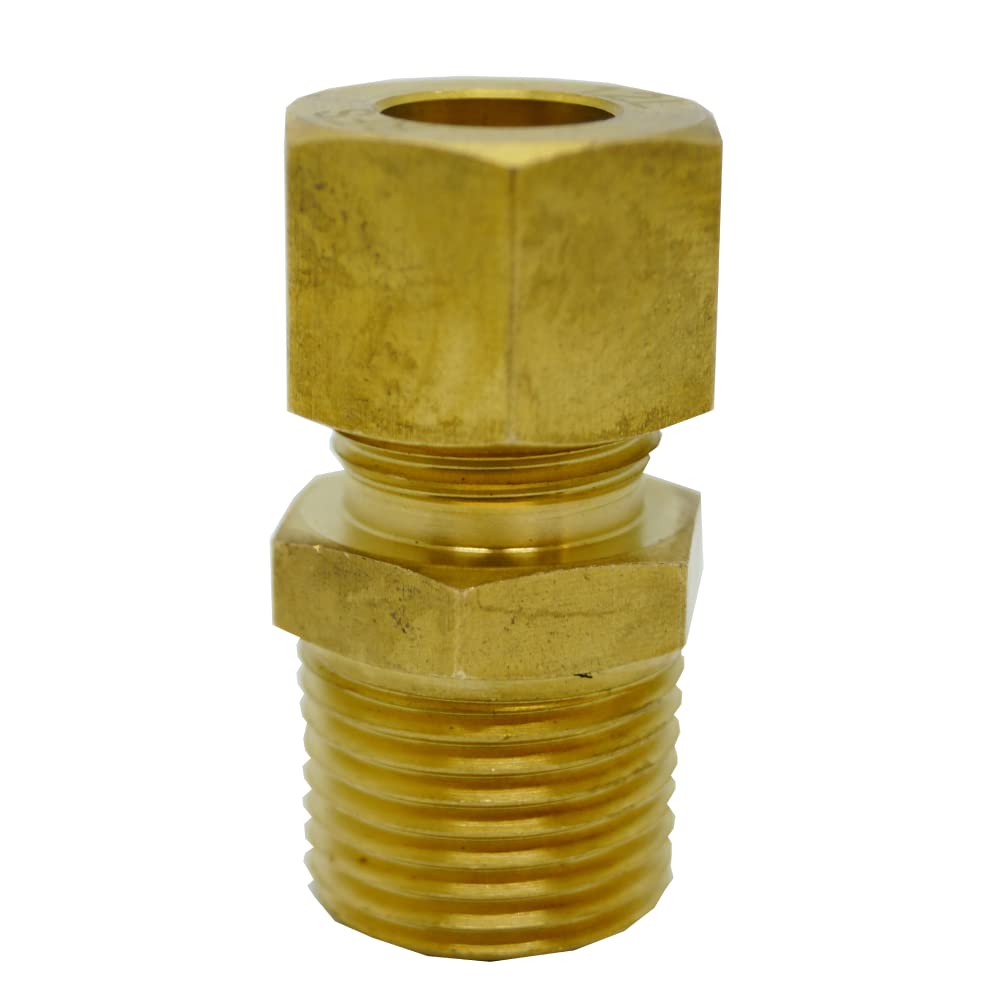

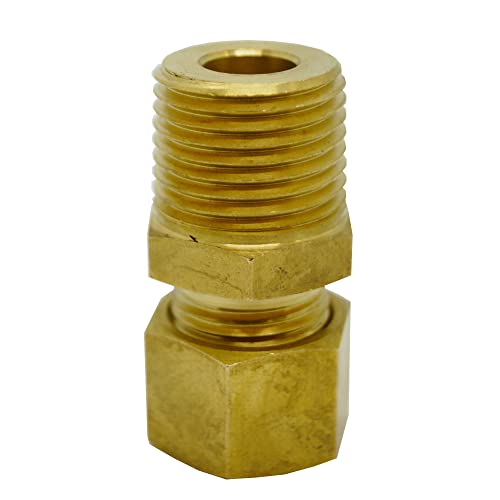

ItemName : RFS Brass 35mm OD x 1" Male NPT Connector Compression Fittings, Light Series
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemShape : cross
ItemTypeKeyword : compression-cross-fittings
Manufacturer : RFS
Material : Brass
MetalType : alloy steel
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : F-D-B-MC-N-35L-16 N
Pattern : Solid
ProductDescription : Compression fittings are commonly used in applications that requires excellent sealing in high temperature and pressure setting. These fittings are also known as single ferrule. They have a simpler design than double ferrules. Compression fittings are made to DIN 2353, ISO 8434-1, and DIN EN 3851 standards. These fittings are available in 3 series; S, L, and LL. Each series is made to suit different pressure needs. S series (high pressure) fitting has a working pressure of 315 to 630 bars, while L series (light pressure) fitting has a working pressure between 160 to 315 bars. The lowest pressure (LL) series is 100 bars. Compression fittings can be assembled and reassembled many times. Fittings vary in design but they are all made up of three parts; Body, nut, and sleeve. The benefits offered by compression fitting are fewer leak paths, dampens vibration, flexibility, and ease of installation. To install a compression fitting, place the ring and nut over the tube. Then, use a pre-assembly tool and insert the tube up to tube abutment and tighten it with 1 1/4 turns. Remove the pre-assembly tool and untighten it. Remove the nut to see if there is any visible ring formed over the tube. Use a wrench to tighten the nut with the fitting body in an upward position until there is a noticeable feeling in increase of torque and further tighten the nut ¼ turn. Single ferrule male connector connects male and female tubes together. It has one threaded male end, and one compression end.
ProductSiteLaunchDate : 2022-07-20T06:34:36.651Z
SettingType : Designer-Setting
Size : 35 MM X 1" NPT
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 40141700
