Specification
Brand : choayun
BulletPoint1 : 【High Efficiency】This 72W high-powered foam cutting machine features electric wire cutting which provides fast, accurate, flat cuts and clean edge sealing to increase your productivity
BulletPoint2 : 【Precise Cutting】The hot-wire foam cutting table is carefully designed with scales around it to accurately measure each piece of material, and the 0.01 in heating line allows for more precise cutting and less error
BulletPoint3 : 【Adjustable Design】The foam cutter has a voltage adjustment knob that adjusts the temperature (0-932 °F) and can also cut different shapes of material by angling the bracket to change the position of the wire, four adjustable feet for overall stability
BulletPoint4 : 【Easy to Use】The compact construction of the cutter, which measures 15.35 by 12.99 in and weighs just 6.6 pounds, makes it easy to move and carry wherever you need it. The surface is smooth, flat and easy to clean
BulletPoint5 : 【Wide Application】The foam cutting machine is used to cut foam, sponge, pearl cotton, and other hot-melt materials with a melting point below 350℃. It can cut angles, cylinders, sharp cones, rings, tapers, straight lines, and other shapes
Color : Light Blue, Silver
ExternallyAssignedProductIdentifier : 8596386994481
ExternallyAssignedProductIdentifier1 : 0757582650467
ExternallyAssignedProductIdentifier2 : 757582650467
GpsrSafetyAttestation : 1
IncludedComponents : 1* Worktable,1* L-shape Conductive support,1* Guiding Rule,1* Circular Die,1* Angle Board,1* Adapter,1* English Manual
IncludedComponents1 : 1* Worktable
IncludedComponents2 : 1* Adapter; 1* Angle Board
IncludedComponents3 : 1* L-shape Conductive support; 1* Guiding Rule
IncludedComponents4 : 1* Circular Die
IncludedComponents5 : 1* Angle Board

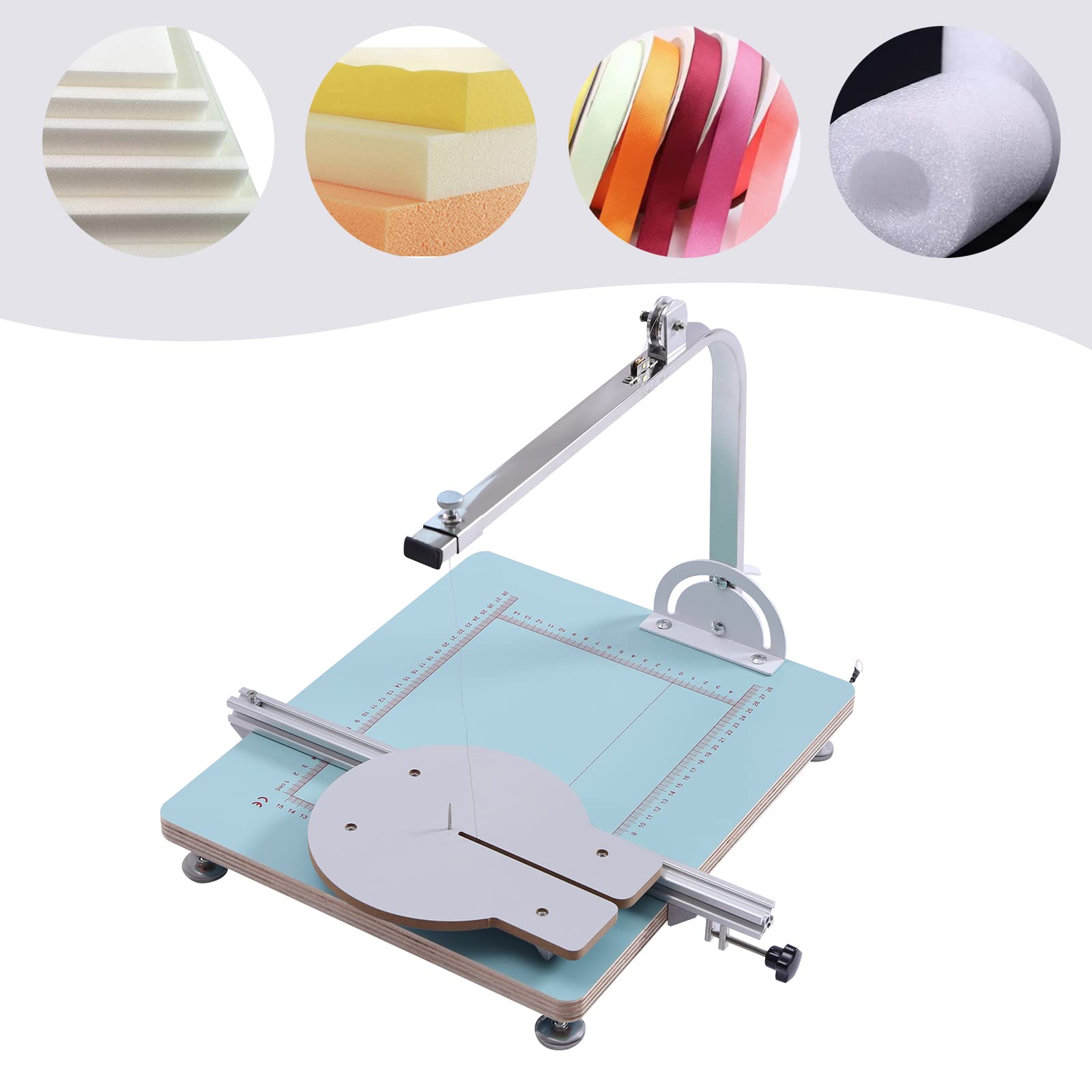

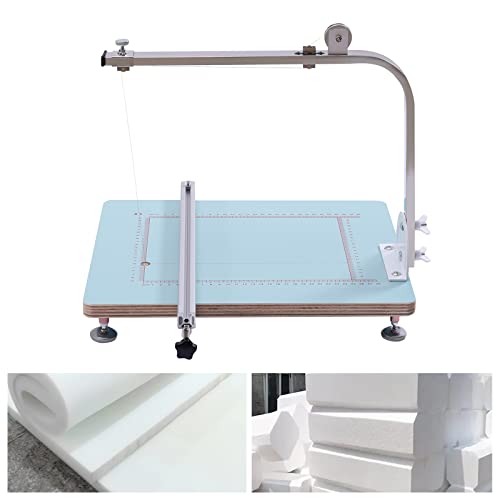

ItemName : 72W Hot Wire Foam Cutter Table, Tabletop Foam Hotwire Cutter with Adjustable Voltage & Support, Foam Cutting Machine with LED Display & Guiding Rule for Cutting Forming Sculpting
ItemPackageDimensions_Height : 15.8242 centimeters
ItemPackageDimensions_Length : 3.81 centimeters
ItemPackageDimensions_Width : 12.5984 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : craft-shears
Manufacturer : choayun
Material : Multi-layer Panel and Stainless Steel
ModelName : Hot Wire Foam Cutter Table
ModelNumber : R2UO2MS9
NumberOfItems : 7
PartNumber : GW147
ProductDescription :

How to Install

1. Take out the semicircular angle board, align two holes on the angle board with two holes on the worktable, and tighten them with screws.

2. Take out the L-type stainless steel square pipe support, and align two holes on the pillar with two holes on the angle board. Put on the bolt, cover the copper nose (copper nose is conductive zero line, and very important), and tighten the nut.

3. Pull out the heating wire about 30cm/11.81in from the wire wheel.

4. Thread the heating wire through the small hole of the worktable, and then make a ring on the heating wire and hang it on the spring at the machine's bottom. It should not fall off.

5. Rotate the aluminum alloy wire wheel on the bracket to tighten the heating wire. The heating wire is moderately tight and naturally elastic.



Specification

Material: Multi-layer Panel and Stainless Steel

Color: Light Blue, Silver

Input Voltage: 100-240V AC

Output Voltage: 18V/4A DC

Power: 72w

Plug: US Standard

Adjustable Temperature Range: 0-500°C/0- 932°F

Cutting Height: 0-25cm/0-9.84inch

Heating Wire Diameter: 0.28mm/0.01in

Cutting Width: 0-28cm/0-11.02in

Worktable Width: 33cm/12.99in

Workbench length: 39cm/15.35in

Packing Size: 44*38*10cm/17.32*14.96*3.93in

Gross Weight: 3.5kg/7.7lbs

Net Weight: 3kg/6.6lbs



Package Included

1* Worktable

1* L-shape Conductive support

1* Guiding Rule

1* Circular Die

1* Angle Board

1* Adapter

1* English Manual

All Accessories for Use

ProductSiteLaunchDate : 2024-08-20T07:49:25.179Z
Size : 4.5“X6.5"
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27112700
Wattage : 72 watts
