Product Information
Editorial Review

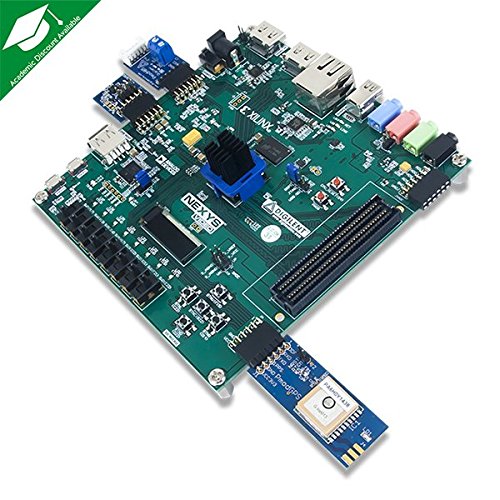

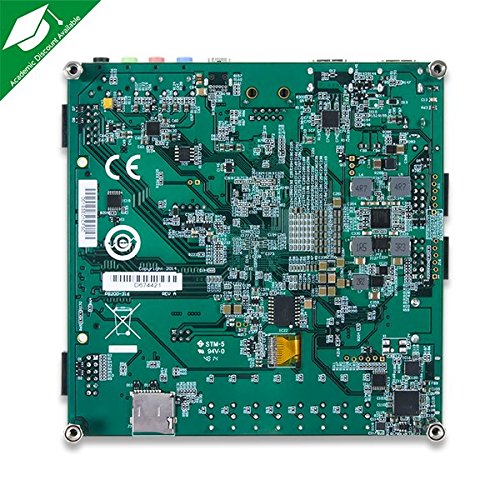

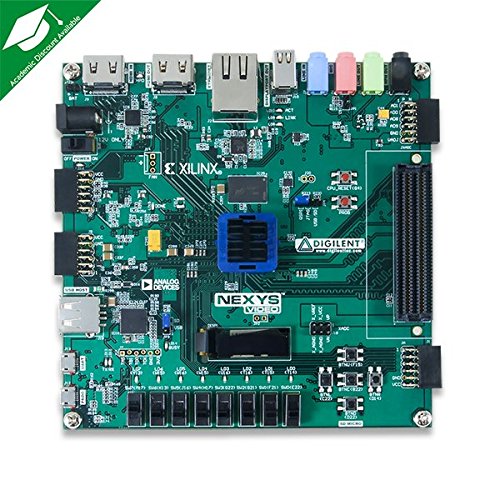

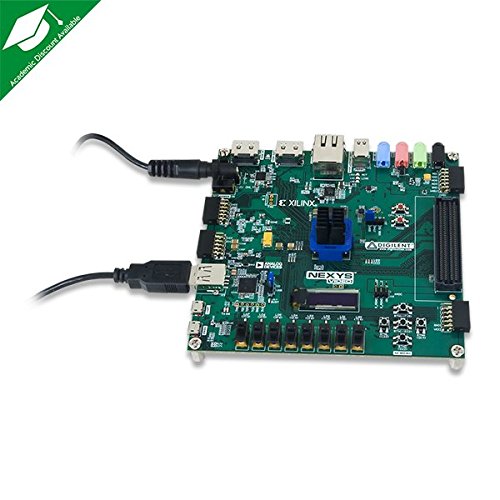

The Nexys Video (previously announced as the Atlys 2), is the latest addition to our Nexys line of FPGA boards, and was designed with audio/video enthusiasts in mind. The Nexys Video features several components that make it ideal for developing audio/video applications. The Artix®-7 XC7A200T FPGA is the most powerful chip from the Xilinx® Artix-7 family. A Mini DisplayPort source provides the board with a uni-directional, high-bandwidth, low-latency audio/video channel. Designed with high bandwidth external memories, three high-speed digital video ports, and a 24-bit audio codec, the Nexys Video is a potent platform for A/V development. As a member of the Nexys family, the Nexys Video has been designed with a high degree of communication, user and expansion peripherals commonly found in industry. Communication peripherals such as on-board Ethernet, USB-UART, and high-speed USB allow the Nexys Video to be interfaced into larger systems. Onboard user peripherals such as switches, buttons, LEDs, and an OLED display allow users to interface directly with their designs instead of needing to wire up additional I/O. An FMC connector and four Pmod ports allow the addition of peripherals to further expand the functionality of the Nexys Video. The Nexys Video is compatible with both ISE® and Vivado® toolchains. It is supported in the free WebPACKTM versions of these two tools so designs can be implemented at no additional cost. The free version of Vivado even includes the ability to create MicroBlazeTM soft processor designs. We also sell a device-locked version of the Design Edition of Vivado Design Suite, which you can bundle with your Nexys Video when you add it to your cart.* This edition unlocks the Logic Analyzer functionality of the toolset.
Features
1) Features the Xilinx Artix-7 FPGA (XC7A200T-1SBG484C)
2) 33,650 logic slices, each with four 6-input LUTs and 8 flip-flops
3) 13 Mbits of fast block RAM (3x more than the Nexys 4 DDR)
4) 10 clock management tiles, each with phase-locked loop (PLL)

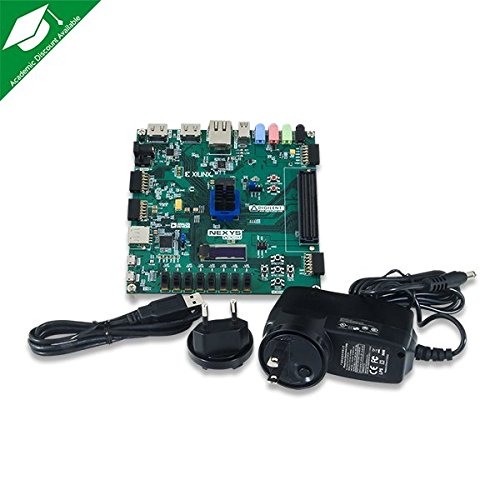

5) USB A to micro-B programming cable and one 12V, 3A wall power supply with US and EU adapters
Specification
Binding : Electronics
Brand : Digilent
EAN : 2050004735475
Label : Digilent
Manufacturer : Digilent
ProductGroup : PC Accessory
ProductTypeName : MOTHERBOARD
Publisher : Digilent
Studio : Digilent
Title : Digilent Nexys Video Artix-7 FPGA: Trainer Board for Multimedia Applications
