AnnualEnergyConsumption : 1 watts
AutomotiveFitType : vehicle_specific_fit
AutoPartPosition : rear
AutoPartPosition1 : rear
AutoPartPosition2 : front
Brand : SUDEG
BulletPoint1 : Installation: Insert the three-phase output plug of the controller tightly into the terminal of the compressor, and tighten the screws after the controller is set into the mounting card of the compressor
BulletPoint2 : The controller automatically adapts to dual voltage, i.e. DC 12V and 24V power input systems; The maximum input voltage is 17V for DC 12V systems and 31.5V for 24V systems
BulletPoint3 : External Fan: A 12V DC fan can be connected between the terminals (F+) and (F-) of the controller, the positive terminal of the fan is connected to the (F+) terminal of the controller and the negative terminal is connected to the (F-) terminal of the controller; The output between terminals (F+) and (F-) will always remain at 12V when the input voltage to the controller exceeds 12V; The fan must be a 12V DC fan regardless of whether the input voltage system is 12V or 24V
BulletPoint4 : The operating temperature of the controller is not greater than 50°C; when the temperature of the controller case is too high, the compressor will be stopped and over-temperature protection will be generated
BulletPoint5 : Temperature switch: The temperature switch is connected to the C and T terminals of the controller; If no resistor is connected in between, the compressor will run at 2000rpm when the temperature switch is closed
Capacity : 0.0025 liters
Color : Black
Configuration : Temperature controller
CoolingMethod : Compressor
DefrostSystemType : Automatic
EnergyStar : 1 Star
ExternallyAssignedProductIdentifier1 : 765914825391
ExternallyAssignedProductIdentifier2 : 0765914825391
ExternallyAssignedProductIdentifier3 : 00010037064395
FinishType : Chrome
FitType : Universal Fit
FreezerCapacity : 7 liters
FreshFoodCapacity : 7 liters
GpsrSafetyAttestation : 1
HasAdjustableTemperatureControl : 1
Hazmat1 : auto-grounding
Hazmat10 : ES_NoAir
Hazmat11 : IN_NoAir
Hazmat12 : MX_NoAir
Hazmat13 : CN_NoAir
Hazmat14 : BR_NoAir
Hazmat15 : SG_NoAir
Hazmat16 : AU_NoAir
Hazmat17 : TR_NoAir
Hazmat18 : AE_NoAir
Hazmat19 : SA_NoAir
Hazmat2 : 3
Hazmat20 : NL_NoAir
Hazmat21 : EG_NoAir
Hazmat22 : SE_NoAir
Hazmat23 : PL_NoAir
Hazmat24 : BE_NoAir
Hazmat25 : ZA_NoAir
Hazmat26 : IE_NoAir
Hazmat3 : US_NoAir
Hazmat4 : GB_NoAir
Hazmat5 : DE_NoAir
Hazmat6 : FR_NoAir
Hazmat7 : JP_NoAir
Hazmat8 : CA_NoAir
Hazmat9 : IT_NoAir
IncludedComponents : DC compressor
IncludedComponents1 : 1 x Car Fridge
IncludedComponents2 : 1 x Instruction Manual
IncludedComponents3 : 1 x Cigarette Lighter
IncludedComponents4 : 1 x Power Cord
IncludedComponents5 : 1 x Strap
InstallationType : Built-In
IsAssemblyRequired : 1
IsElectric : 1

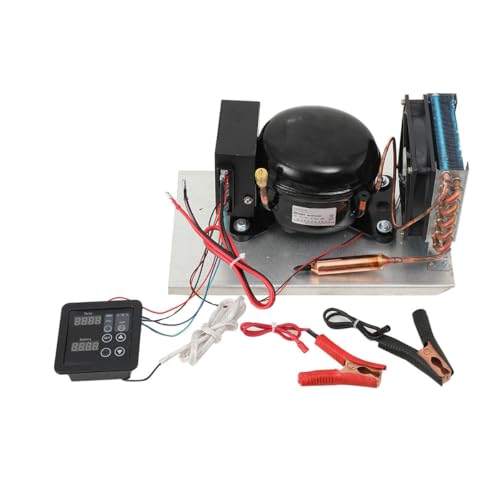

ItemName : SUDEG DC 12-24V Car Refrigeration Air Compressor Fridge Freezer Marine Solar with Temperature Controller,Working volume:2.5cm³,2000-3500RPM,BD25HC
ItemPackageDimensions_Height : 23 centimeters
ItemPackageDimensions_Length : 37 centimeters
ItemPackageDimensions_Width : 21 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-refrigerators
Language : english
LiquidVolume : 15.34 fluid_ounces
Manufacturer : SUDEG
Material : Metal
Material1 : Polypropylene
Material2 : Suede
Material3 : Leather
Material4 : Cotton
ModelName : BD25H
ModelNumber : BD25H
NumberOfBoxes : 1
NumberOfDoors : 1
NumberOfItems : 1
NumberOfShelves : 7
PackageLevel : unit
PartNumber : BD25H
PartTypeId : 1316
Pattern : Solid
PowerPlugType : type_a_2pin_na
PowerSourceType : Corded Electric
ProductDescription : Compressor parameters:
Compressor model: BD25H
Rated voltage frequency: 12-24V (DC)
Working Back Pressure: L.B.P
Cooling status: natural cooling / air-cooled
Throttling device: capillary tube
Motor type: BLDC
Ambient temperature : 0～43℃
Evaporating temperature :-35～-10℃
Operating voltage range :9.6～17/21.3～31.5V
Max. exhaust pressure :1.86 MPa(abs)
Minimum case pressure: 35 bar
Oil type: Ester oil
Oil filling volume :150ml±10ml
Diameter of suction pipe (inner diameter) : Φ6.2±0.1 mm
Exhaust pipe diameter (inner diameter) : Φ5.0±0.1 mm
Process pipe diameter (inner diameter): Φ6.2±0.1 mm
Compressor noise :≤40dB(A)
Vibration :0.6m/s²
Working volume:2.5cm³

Cooling Capacity:
RPM is 2000, cooling capacity is 45W , 38.7 Kcal/h ,153.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 2.9/1.4，input Power is 36W
RPM is 2500, cooling capacity is 55W , 47.3 Kcal/h ,187.7 btu/h,Efficiency COP is 1.25 w/w,electric current is 3.5/1.7,input Power is 44W
RPM is 3000, cooling capacity is 64W , 55 Kcal/h ,218.4 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.1/2.0, input Power is 51W
 RPM is 3500, cooling capacity is 74W , 63.6 Kcal/h ,252.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.9/2.4, input Power is 59W

Digital Thermostat Parameters:
Voltage range: DC 12-24V, limit 35V
Operating current: 0.1A
Door Lamp Function: Door lamp voltage follows input voltage
Temperature probe accuracy: ±1℃
Operating ambient temperature: -10℃～60℃, relative humidity 20%～90%

Package Including
1 x Compressor
1×Temperature controller
