Specification
AgeRangeDescription : adult
Brand : Aitoserlea
BulletPoint1 : Support three operation modes: edge-following, line-following and center-alignment; support photoelectric sensor, ultrasonic transducer and CCD Sensor; support Modbus and PLC/Human-computer networking control
BulletPoint2 : Detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances
BulletPoint3 : Automatic travel measurement, no need to limit the switch mechanically
BulletPoint4 : No overshot integral variable PI algorithm, high accuracy, fast reaction and less error
BulletPoint5 : 0.5msec super-speed of responding; analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second
BulletPoint6 : Adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal
BulletPoint7 : DC servo motor to push the ball screw; power-down memory of all the parameters at any states in the system
BulletPoint8 : Store 10 groups of parameters from different material, convenient and efficient switchover of material
BulletPoint9 : Simplified Chinese/Traditional Chinese/English for menu operation; humanized operation, fast, simple and convenient
Color : Stroke 150MM
ExternallyAssignedProductIdentifier : 9414830647211
ExternallyAssignedProductIdentifier1 : 0795973706355
ExternallyAssignedProductIdentifier2 : 795973706355
IncludedComponents : No
ItemName : Servo Edge Position Control System, EPC Web Guide Control System (Stroke 150MM)
ItemPackageDimensions_Height : 10.5 centimeters
ItemPackageDimensions_Length : 1.3 centimeters
ItemPackageDimensions_Width : 6.4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
Manufacturer : Aitoserlea
Material : Plastic
ModelName : FENGCUICUI
ModelNumber : Tisstinggiqsryg8fc
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : CS23-0322-0005
ProductDescription : Servo Edge Position Control System EPC Web Guide Control System

Description:
Servo web guide Controller adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm
It is of high deviation rectification and fast reaction, in addition, it supports three operation modes: the edge-following, line-following and centre-alignment mode

Application:
Textile machinery: fiber twisters, treatment machines, weaving machines
Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
Machine tool systems: lathes, millers, steel extruders, CNC lathes, specialized machinery
Transportation equipment: hoists, feeders, conveyors, rollers, winders
Paper-making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

Specification:
Correction Controller:
Control method: DC Servo Driver
Power: DC 24V/5A
Control input: DC 0~5A
Control output: 24V, PWM
Response time: 0.5ms
Environment temperature: -10~60℃, below RH90%
Weight: 1.2kg

Sensor:
Color sensor: US-400S
Power supply: DC 12V
Power output: DC 0-5V
Detective range: 5mm
Detective accuracy: 0.1mm
Detector methods: ultrasonic exposure
Frequency: 100KHZ
Shell material: aluminum alloy

Servo Actuator:
Max thrust: 2000N
Driving load: 2000KG
Stroke range: 80mm/150mm/200mm/300mm (optional)
Max driving speed: 40mm/s

Package includes:

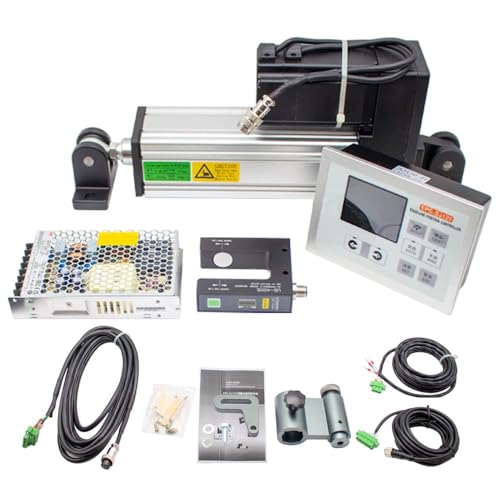

1 x Set of Servo Edge Position Control System
ProductSiteLaunchDate : 2022-03-16T10:55:38.519Z
Size : One Size
Speed : 40 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26000000
Voltage : 20 volts_of_alternating_current
