Specification
Brand : GAMA Electronics
BulletPoint1 : Frequency: 340 MHz.
BulletPoint2 : Input voltage: 12VDC with reverse polarity protection.
BulletPoint3 : The output relays are rated at 30A @12VDC.
BulletPoint4 : Operating temperature range: 0° F to 160° F.
BulletPoint5 : Receiver dimensions are approximately 2.75″ L x 2.25″ W x 1.5″ H.
BulletPoint6 : Transmit range is greater than 100 feet under normal operating conditions.
CircuitBreakerType : Standard
CurrentRating : 32 amps
ExternallyAssignedProductIdentifier : 00851029006432
ExternallyAssignedProductIdentifier1 : 0739437212570
ExternallyAssignedProductIdentifier2 : 739437212570
IncludedComponents : Tranmitter and Receiver

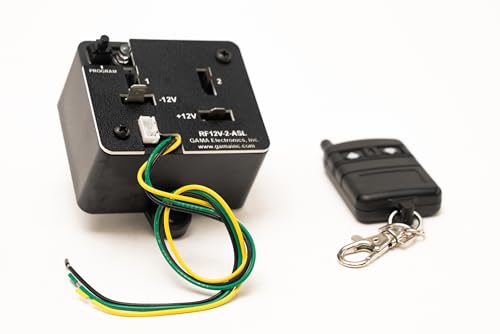

ItemName : RF Remote Control System, (2) 12VDC Outputs with auxiliary switch leads. Convertible Top Remote Control.
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 6 inches
ItemPackageDimensions_Width : 6 inches
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
Manufacturer : GAMA Electronics
Material : lead
Material1 : Metal
Material2 : Plastic
ModelNumber : RF12V-2-ASL
MountingType : DIN Rail Mount
NumberOfItems : 1
NumberOfPoles : 2
PartNumber : RF12V-2-ASL

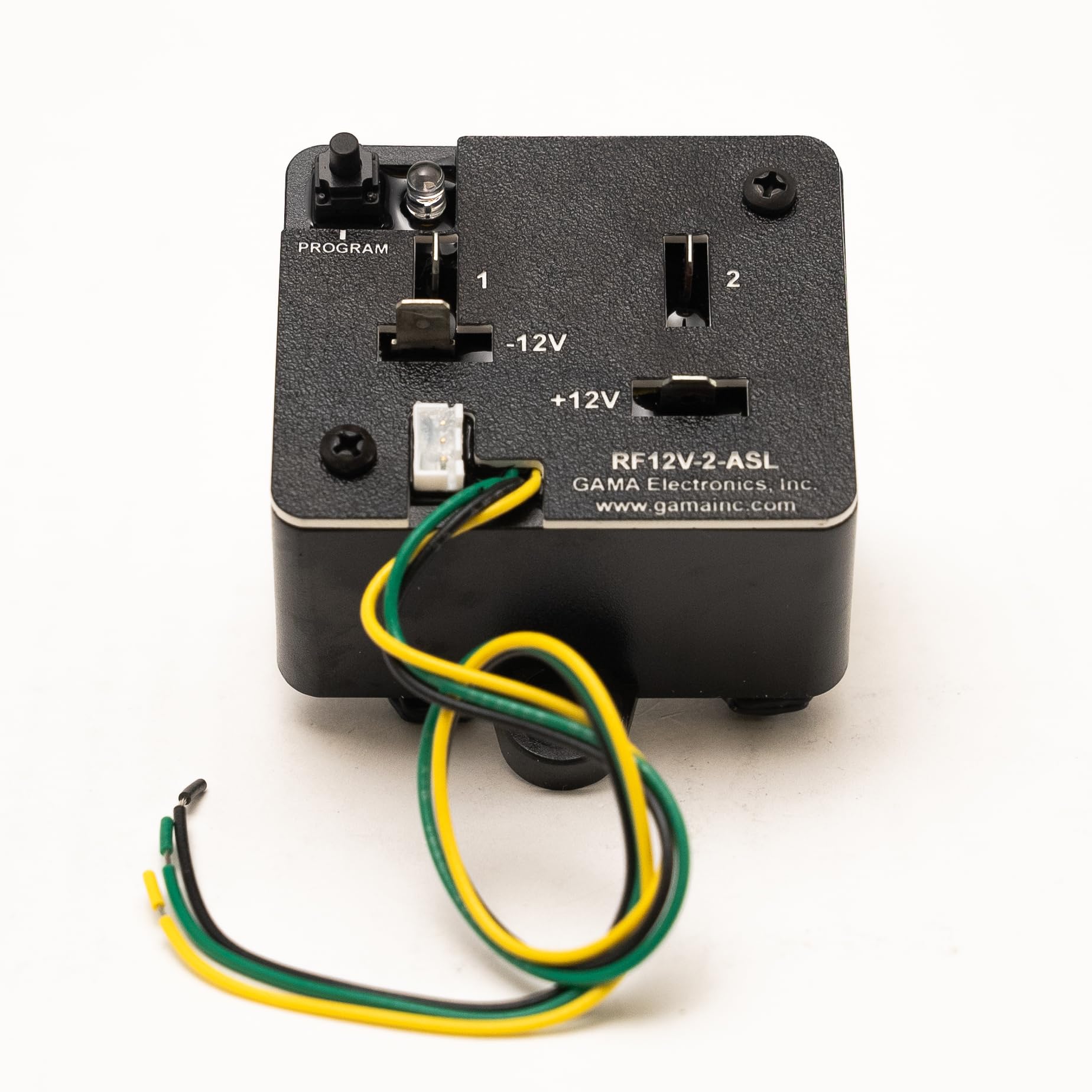

ProductDescription : RF Remote Control System, (2) 12VDC Outputs with auxiliary switch leads Compact 12VDC R.F. Remote Control transmitter & receiver. Provides two 12VDC outputs. The output relays are rated at 30A @12VDC. This system is commonly used for controlling DC motors (3 wire motors) that have separate windings for controlling the direction of travel. The keyfob transmitter has two buttons. The left button controls output 1 and the right button controls output 2. There are also three lead wires that allow for an auxiliary On-Off-On switch to be connected. This permits operation of the control without using a transmitter. The control can be configured for either momentary or latching operation. In the momentary mode, either one of the two outputs will operate as long as the buttons are held down. In the latching mode, pressing either button will latch the corresponding relay & provide a 12 volt output. Both outputs can be energized simultaneously in the latching mode. Operating temperature range – 0° F to 160° F. The robust ABS enclosure dimensions are approximately 2.75″ L x 2.25″ W x 1.5″ H. The receiver has two mounting tabs. There are four 1/4″ terminals for the connections. Transmit range is greater than 100 feet under normal operating conditions. An optional long range antenna is available for purchase that will increase the range to 500 feet under normal operating conditions. FCC Approved. Proudly made in the U.S.A. Specifications Frequency: 340 MHz. Input voltage: 12VDC with reverse polarity protection. The output relays are rated at 30A @12VDC. Operating temperature range: 0° F to 160° F. Receiver dimensions are approximately 2.75″ L x 2.25″ W x 1.5″ H. Transmit range is greater than 100 feet under normal operating conditions. Up to 30 keyfob transmitters can be used with each receiver.
ProductSiteLaunchDate : 2024-06-20T19:20:02.165Z
Style : 2NO
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26000000
Voltage : 12 volts
