Specification
Brand : Hilitand
BulletPoint1 : A special high speed chip is used to process the input and output (I/O) . It is capable of making the machine work stably, with the features of correcting and enlarging the that removing the unnecessary disturb . The computer LPT po
BulletPoint2 : 5 input , communicating with the host computer, which are isolated by the optical coupling. Among the optical coupling isolation, the P11 and P12 are high-speed, which can be used for connecting main shaft encoder, or the same demanding
BulletPoint3 : The high speed optical coupling isolation is used to control the rotational speed of spindle. The output port is parallel port P1, which can output the PWM within 2.5KHZ. On the interface board ,there is a D/A circuit, with PWM to a 0-10V.
BulletPoint4 : 12 output , which is allowed to controlling output, supporting as many as 6 axls linkage. Some of the output port is reusable functionality. Meanwhile, one port only can be used as one function
BulletPoint5 : 3 replays, P2, P3 and P4, which can support control software programming. The relay's on or off can be controlled through the control of software. Each relay has attracted indicating lamp, which is more intuitive and convenient.
Color : Red
ExternallyAssignedProductIdentifier1 : 0794419154101
ExternallyAssignedProductIdentifier2 : 794419154101
FinishType : Finish
IncludedComponents : inc

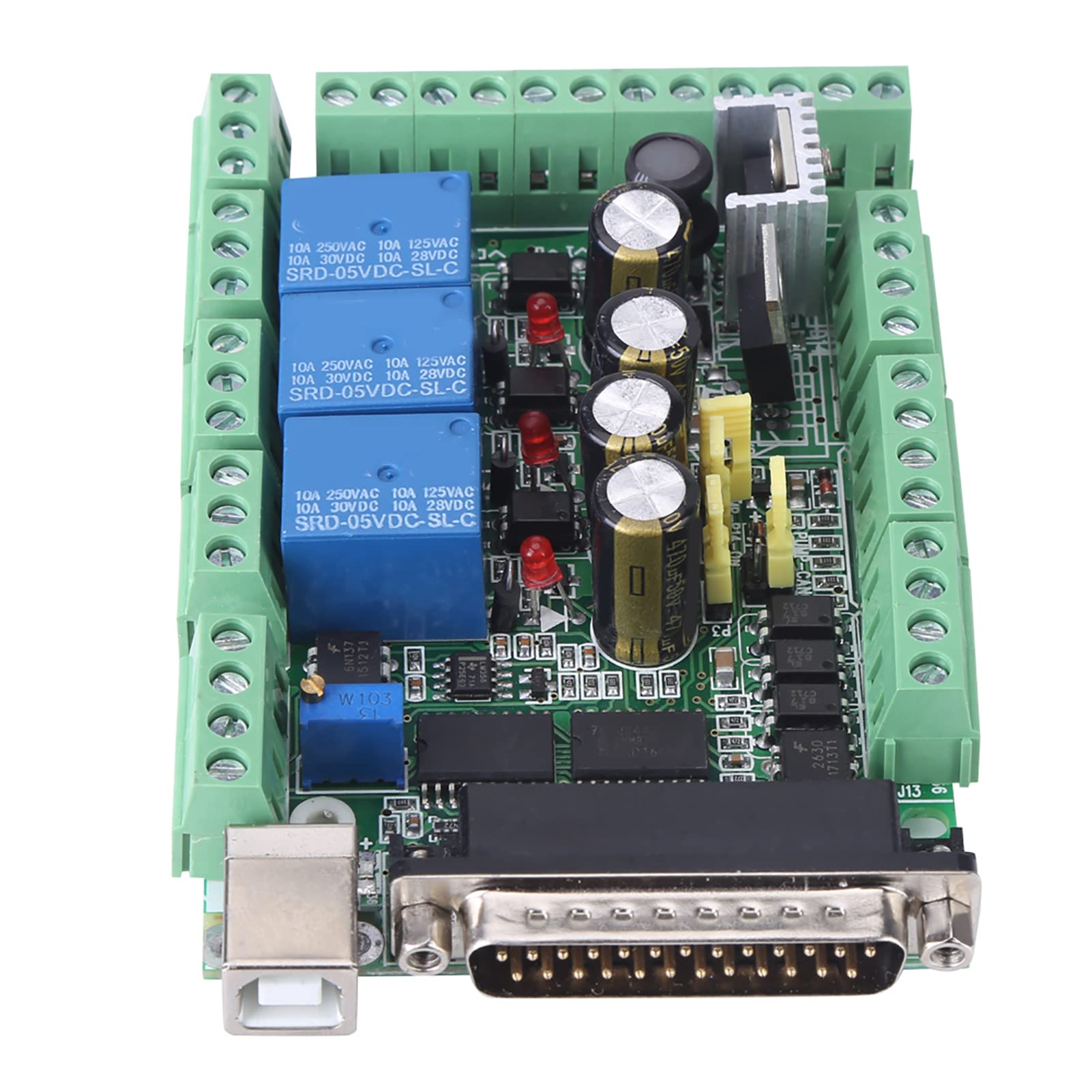

ItemName : Hilitand Board Adapter Controller for Stepper Motor Driver CNC Mill Engraving Machine MACH3V2.1-L
ItemPackageDimensions_Height : 15 centimeters
ItemPackageDimensions_Length : 2.8 centimeters
ItemPackageDimensions_Width : 9.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
Manufacturer : Hilitand
Material : plastic
Material1 : Plastic
Material2 : Aluminum
ModelNumber : DCSPTJ04-D
NumberOfItems : 1
PartNumber : Hilitandfxnhp954zb
PowerSourceType : PowerSource
ProductDescription : Specifications:
Model: MACH3V2.1-L
USB: Type B
Size: 11*7.5*2.4cm/4.3*2.95*0.9in
5 input ports
port function
P10 emergency stop
P11 reserved
P12 reserved
P13 3 axls limit
P15 reserved
11 output ports
port function
P4 X pulse
P5 X direction
P6 Y pulse
P7 Y direction
P8 Z pulse
P9 Z direction
P16 4 pulse
P17 4 direction
P2 relay port
P3 relay port
P14 pump


Package Includes:
1 x Board


ProductSiteLaunchDate : 2018-11-09T00:00:00.000Z
Size : DC 6-24V
Style : Industrial
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111500
Voltage : 1 volts
Voltage1 : 12 volts
Voltage2 : 30 volts
Wattage : 3000 watts
