Specification
Brand : Haldzemo
BulletPoint1 : This mini PWM controller DC motor speed regulator 5V-16V 12V speed regulation with switch function 10A LED dimming speed regulation module
BulletPoint2 : Maximum voltage: 16V, Minimum voltage: 5V, Continuous current: 10A, Short-circuit limit current: 20A (less than 10 seconds)
BulletPoint3 : Speed control mode: PWM stepless speed regulation, can also be used to adjust the light
BulletPoint4 : Adjustable resistor switch: open the switch in clockwise direction, rotate the potentiometer clockwise to accelerate the motor; rotate the potentiometer counterclockwise to decelerate the motor
BulletPoint5 : Note: The module needs to be connected to the load, adjust the potentiometer output voltage will be changed

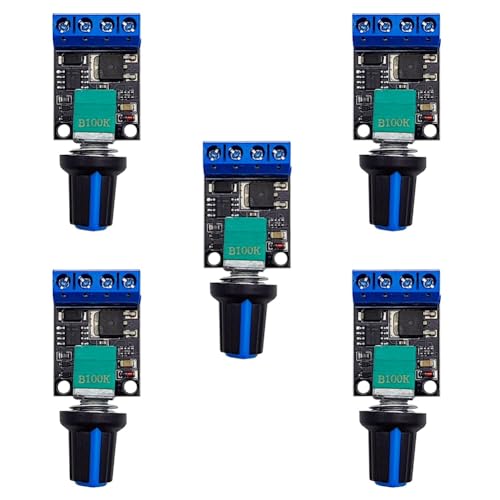

IncludedComponents : 5pcs PWM Speed Controller Module DC 5V-16V 10A
ItemName : Haldzemo Mini DC Motor PWM Speed Controller Module DC 5V-16V 10A Adjustable Variable Voltage Regulator with Control Switch (5 Pack)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemTypeKeyword : electric-motor-controls
Manufacturer : Haldzemo
NumberOfItems : 5
PartNumber : HZ058X5
ProductDescription : Description:

Note: The module needs to be connected to the load, adjust the potentiometer output voltage will be changed.
Weight: 10g
Size:30*20*14mm (not included Potentiometer)
Maximum voltage: 16V
Minimum voltage: 5V
Continuous current: 10A
Short-circuit limit current: 20A (less than 10 seconds)
Efficiency: 98%
Speed control mode: PWM stepless speed regulation, can also be used to adjust the light
Control mode: speed control potentiometer (open clockwise, continue to rotate clockwise from 1% to 99 % speed)
Duty cycle: 0%-99 % (0% position is the leftmost closed state of the potentiometer) 0.002A when the current is turned on (long time no need to turn off the governor will not have current)
Adjustable resistor switch: open the switch in clockwise direction, rotate the potentiometer clockwise to accelerate the motor; rotate the potentiometer counterclockwise to decelerate the motor.

Package Includes:
5pcs PWM Speed Controller Module DC 5V-16V 10A
