Specification
Brand : POCREATION
BulletPoint : Motors
BulletPoint1 : [Control] The driver use PWM to control speed, and use CW and CCW switch to control forward, reverse and stop.
BulletPoint2 : [Specifications] This DC 12V motor has 8 mm shaft (15mm long), we offer different speed motor, please choose the right one for you before purchasing.
BulletPoint3 : [Wide Range of Applications] The DC geared motor with driver has strong torsion, suitable for curtain machines, billboards, window openers, etc.
BulletPoint4 : [High Quality] The shell of the geared motor is made of metal, which is wear resistant and not easy to rusty, and has good thermal conductivity.
BulletPoint5 : [Quality Service] If you have any questions about the product, please us at any time, we will offer you the best solution.
BulletPoint6 : Weight: 250g; Package Includes: 1 x AC Contactor
CircuitBreakerType : Standard
Color : One Color
CurrentRating : 63 amps
ExternallyAssignedProductIdentifier : 7361532618976
ExternallyAssignedProductIdentifier1 : 0680490992902
ExternallyAssignedProductIdentifier2 : 680490992902
IncludedComponents : AC CONTACTOR

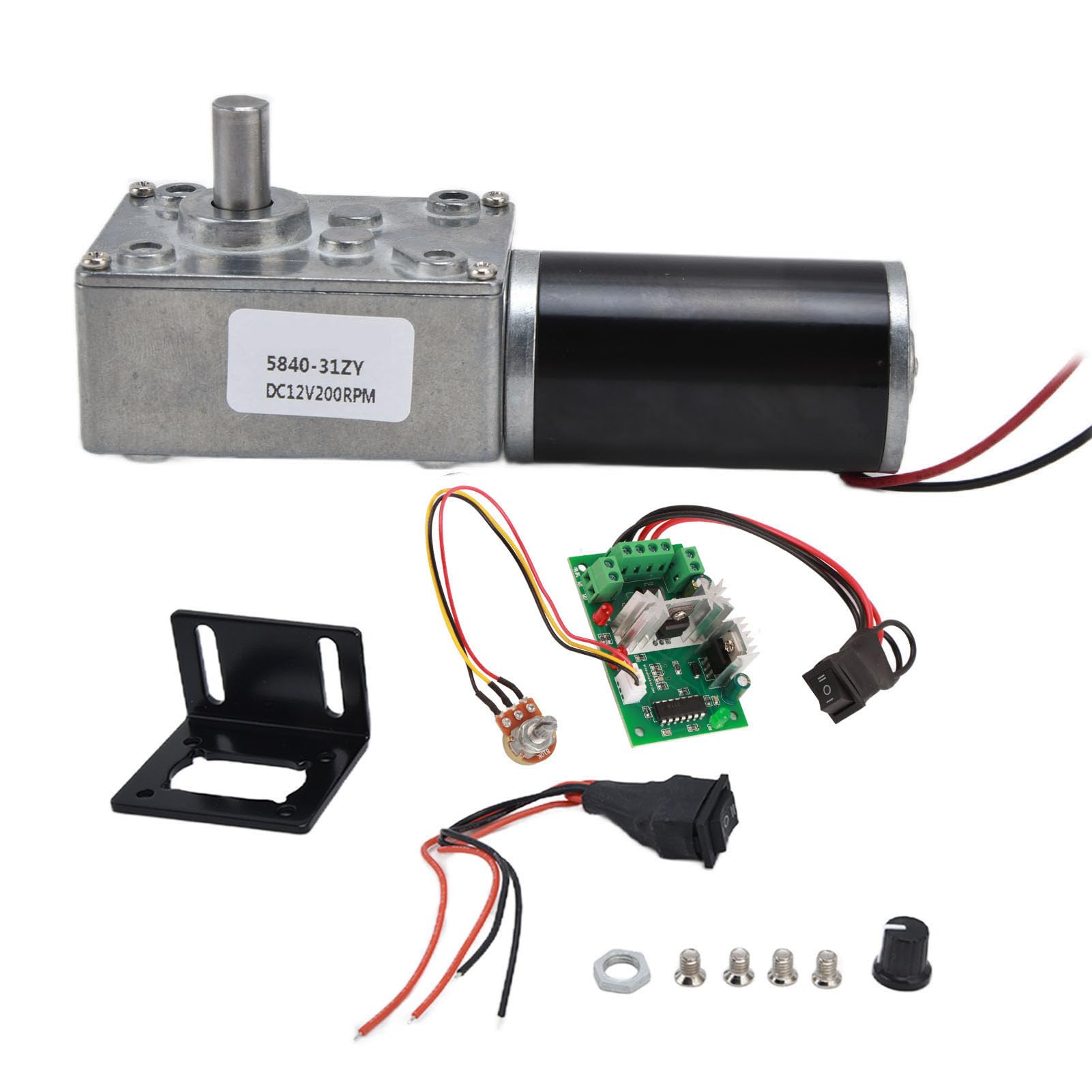

ItemName : DC 12V Gear Motor and PWM Driver Kit, 20-400 RPM Motor Series, Speed Reduction Motor with 8mm D Shaft(200RPM), Geared Motor
ItemPackageDimensions_Height : 18 centimeters
ItemPackageDimensions_Length : 9.5 centimeters
ItemPackageDimensions_Width : 11.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
Manufacturer : POCREATION
Material : Metal
ModelName : FANGZHNHT
ModelNumber : 1NO 1NC
MountingType : DIN Rail Mount
NumberOfItems : 1
NumberOfPoles : 2
PartNumber : POCREATIONbv5e4dmsrw5840-12
ProductDescription : Specification:
Item Type: Geared Motor
Model: 5840-31ZY
Working Voltage: 12V

Shaft Length: Approx. 15mm / 0.6in
Shaft Diameter: Approx. 8mm / 0.3in
DC motor regulator CW and CCW control
Model: CCM2
Working Voltage: DC 10V-30V
Control Power: 12V x 3A=36W, 24V x 3A=72W, ＞24V, maximum 120W
Rated Current: 3A
Maximum Current: 5A
PWM Pulse Width Adjustment Range: 5%-95%
Potentiometer: value B10K, wire length is approx. 20cm / 7.9in, opening approx. 8mm / 0.3in
Output Voltage: About of the input voltage
Drive: Approx. 74 x 47 x 28mm / 2.9 x 1.9 x 1.1in
Potentiometer is used for speed regulation

Package List:
1 x Motor
1 x Governor
1 x CW and CCW Switch
1 x Knob
1 x Washer
1 x Bracket
4 x Mounting Screw

Note:
1. When soldering is required on the positive and negative motor terminals of the power supply, the temperature of the soldering iron is 340℃±40℃, and the heating time is less than 3s.
2. The maximum bearing capacity of the gear is 70KG, blocking is forbidden, and the motor may be burnt if it is blocked for a long time.
3. When installing the motor, if the screw is too long, it will cause between the motor and the rotor, thereby affecting the characteristics.


ProductSiteLaunchDate : 2021-09-10T00:00:00.000Z
Size : One Size
Speed : 200 rpm
Style : AC 220V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26101200
Voltage : 12 volts
