Specification
Brand : ATO.COM
BulletPoint : Industrial Motors
BulletPoint1 : ATO 2 Pole DC contactor, 125A DC reversing contactor, DPST-NO, DPST-NC contact form, and is available with two optional auxiliary contacts
BulletPoint2 : 【Applications】ATO 2 pole DC Contactors is widely used in auto electric winch, telecommunication equiment, engineering machinery and other electric control system
BulletPoint3 : 【Long Service Life】Mechanical life of ATO DC contactor up to 300 thousand times
BulletPoint4 : ATO 2 pole DC reversing contactor, 125 amps rated load current of contact circuit; main contact voltage drop at 100A, not above 100mV
BulletPoint5 : 【Customer First 】You will be enjoyed to get free tech support on how to choose, how to wire, how to commissioning with ATO professional engineers. If you have any issue about the product or service, please don't hesitate to consult us
Color : Black
ConnectivityProtocol : Wi-Fi
ConnectorType : Clamp
ExternallyAssignedProductIdentifier1 : 0785901158295
ExternallyAssignedProductIdentifier2 : 785901158295
IncludedComponents : 1*DC Contactor
InternationalProtectionRating : IP00

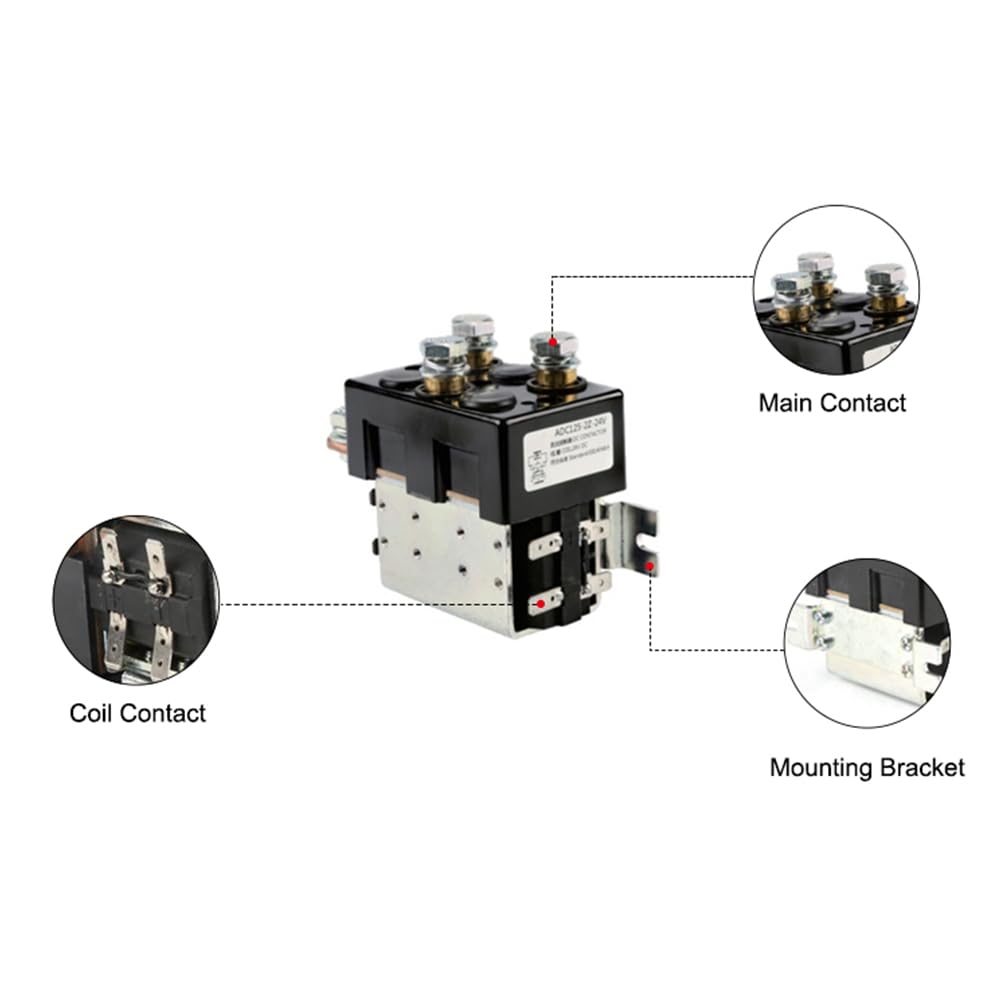

ItemName : ATO 2 Pole DC Contactor, 24V DC Reversing Contactor 125A
ItemPackageDimensions_Height : 3.94 inches
ItemPackageDimensions_Length : 8.62 inches
ItemPackageDimensions_Width : 4.06 inches
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : electric-motor-controls
Manufacturer : ATO
Material : iron
ModelName : AVIMYA
ModelNumber : FS3-431-10403
NumberOfItems : 1
PartNumber : DCCON-R125-02
ProductDescription :

ATO  2 pole DC Contactor Features:

125 amps rated load current of contact circuit.

2 pole, DPST-NO, DPST-NC contact form.

12V, 24V, 48V DC coil rated voltage for selection.

Main contact voltage drop at 100A, not above 100mV.

Mechanical life up to 300 thousand times.

ATO 125A DC Contactor Specifications:

Body Size105*53*94 mm

Weight: 1030 g

Technical ParametersCoil Rated Voltage: 12V/24V/48V(Optional)

Rated Load Voltage12~60V DC

Contact Circuit Rated Load Current125 A

Contact Form2NO and 2NC

Starting Current≤4 A

Overload Current≤7 le

Coil Power≤12 W

Main Contact Voltage Drop at 100A Load≤100 mV

The Allowed Range of Coil Voltage±20%

Pull-In Time (N/O Contacts to Open)≤30 ms

Drop-Out Time (N/O Contact to Close)≤20 ms

Insulation Resistance≥50 MΩ

Dielectric Withstanding Voltage50Hz/60Hz 1500VAC/Min

Electric LifeContinuous 20000 times

Mechanical Life300 thousand times

EnvironmentEnvironmental ProtectionIP 50

Operating Temperature-25℃~55℃

Operating Humidity5~95% RH

ProductSiteLaunchDate : 2023-06-30T10:17:44.108Z
Size : One Size
Style : 24V DC
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26000000
Voltage : 24 volts
