Editorial Review

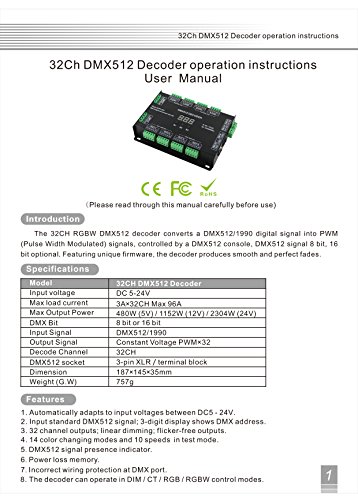

Description The 32CH RGBW DMX512 decoder converts a DMX512/1990 digital signal into PWM (Pulse Width Modulated) signals, controlled by a DMX512 console, DMX512 signal 8 bit, 16 bit optional. Featuring unique firmware, the decoder produces smooth and perfect fades. Specifications: Model: 32CH DMX512 Decoder Input voltage: DC 5-24V Max load current: 3AÃ--32CH Max 96A Max Output Power: 480W (5V) / 1152W (12V) / 2304W (24V) Grey Scale: 8 bit or 16 bit levels Input Signal: DMX512/1990 Output Signal: Constant Voltage PWMÃ--32 Decoder Channel: 32CH RGBW DMX512 socket: 3-pin XLR / terminal block Dimension: 187Ã--145Ã--35mm Weight (G.W): 757g Features: 1. Automatically adapts to input voltages between DC5 - 24V. 2. Input standard DMX512 signal; 3-digit display shows DMX address. 3. 32 channel outputs; linear dimming; flicker-free outputs. 4. 14 color changing modes and 10 speeds in test mode. 5. DMX512 signal presence indicator. 6. Power loss memory. 7. Incorrect wiring protection at DMX port. 8. The decoder can operate in DIM / CT / RGB / RGBW control modes.

Features
1) Automatically adapts to input voltages between DC5-24V. Power loss memory. Incorrect wiring protection at DMX port.
2) Input standard DMX512 signal; 3-digit display shows DMX address.Incorrect wiring protection at DMX port.
3) 32 channel outputs; linear dimming, flicker-free outputs.
4) DMX512 signal presence indicator.14 color changing modes and 10 speeds in test mode.
5) The decoder can operate in DIM (one channel) / CT (two channel) / RGB (three channel) / RGBW (four channel) control modes.

Specification
Brand : Colorful-USA
EAN : 8673987385914
Label : Colorful-USA
Manufacturer : Colorful-USA
PackageDimensions_Weight : 193.00 hundredths pounds
PackageDimensions : L:10.00 X W:6.10 X H:2.01
ProductGroup : Home Improvement
ProductTypeName : HOME_LIGHTING_ACCESSORY
Publisher : Colorful-USA
Studio : Colorful-USA
Title : 32 Channel 96A RGBW DMX 512 LED Decoder Controller DMX Dimmer DC5-24V RGBW RGB LED light 8 Bit/16 Bit
