Specification
Brand : RANZHIX
BulletPoint1 : ✅【SPECIFICATIONS】Interface: DN15, control pressure: 0.3Mpa-1Mpa, body material: 304 stainless steel, pneumatic form: plastic head, valve core seal: PTFE, stem seal: PTFE/FKM, piston seal: FKM/ NBR, medium temperature: PTFE: -10°C - +180°C, ambient temperature: -10°C - +60°C, viscosity: up to 600MM2/s, control medium: air/neutral gas, control Pressure range: 0.3-1MPA.
BulletPoint2 : ✅【DURABLE AND HIGH-QUALITY MATERIAL】Single-acting pneumatic angle seat valve is made of high-quality brass, which is durable and stable. Pneumatic actuators provide extended service life and are maintenance-free.
BulletPoint3 : ✅【APPLICABLE MEDIUM】Water, neutral gas or liquid, alcohol, oil, organic solvent, water vapor, weak acid or weak base solution.
BulletPoint4 : ✅【PROFESSIONAL DESIGN】Under the non-working state, the valve is normally open or normally closed due to the action of the spring. When the actuator piston opens or closes the compressed gas valve, a double action is formed by the compressed gas control valve switch. Make sure the valve is depressurized before disassembling; disassemble carefully after disassembling and store threads and sealing material properly.
BulletPoint5 : ✅【EXCELLENT INTEGRITY STORE】We are high-quality and honest sellers, and we will help you solve all problems. We are committed to provide best service for every customer.Please rest assured to purchase!
Color : one color
ConnectorType : Elbow
ExteriorFinish1 : Stainless Steel
ExteriorFinish2 : Brass
ExternallyAssignedProductIdentifier1 : 0692232839796
ExternallyAssignedProductIdentifier2 : 692232839796

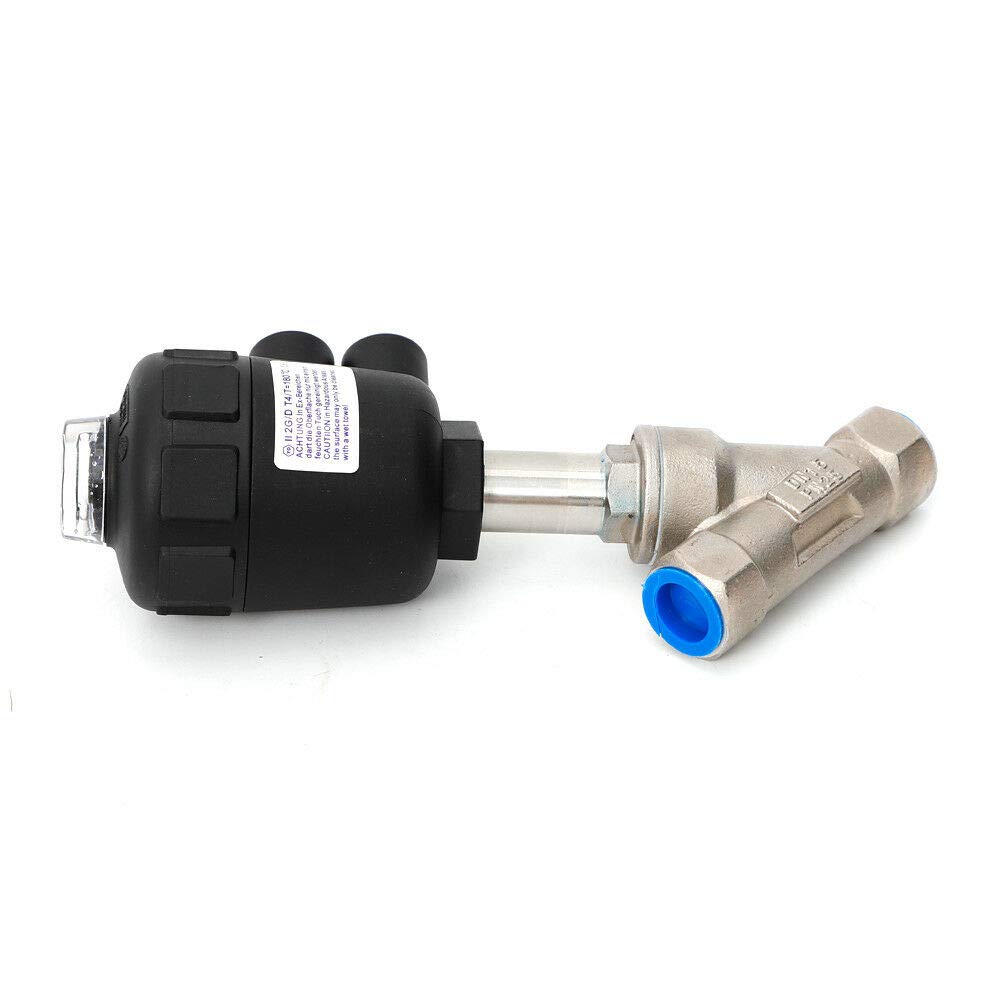

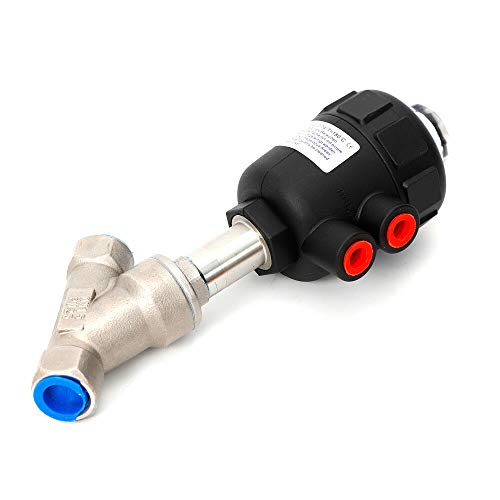

ItemName : Two Way Pneumatic Angle Seat Valve 1/2 Inch DN15 PN25 Single Acting Angle Seat Valve Air Actuate
ItemTypeKeyword : industrial-control-valves
Manufacturer : RANZHIX
Material : Nylon
Material1 : Plastic
Material2 : Stainless Steel
Material3 : Brass
NumberOfItems : 1
PartNumber : ZXJ03512
ProductDescription :

☀Product Information:

◆Parameter：

◆Interface: DN15

◆Control pressure: 0.3Mpa-1Mpa

◆Body material: 304 stainless steel

◆Pneumatic form: plastic head

◆Spool seal: PTFE

◆Stem seal: PTFE/FKM

◆Piston seal: FKM/NBR

◆Medium temperature: PTFE: -10 ° C - +180 ° C

◆Ambient temperature: -10 °C - +60 °C

◆Viscosity: up to 600MM2/s

◆Control medium: air/neutral gas

◆Control pressure range: 0.3-1MPA

★Feature:

✔Applicable medium: water, neutral gas or liquid, alcohol, oil, organic solvent, water vapor, weak acid or weak alkali solution

✔Installation: Install as needed, preferably with the actuator facing up

✔Features: large flow, long life, maintenance free, reliable

✔Widely used in: beer beverage filling equipment machinery, textile printing or bleaching, gas industry pharmaceutical and medical equipment, pharmacy, chemical industry high temperature sterilization, disinfection; foaming machinery, foaming equipment; water pollution treatment.

★Installation and removal:

1. Connect the valve to the pipe to ensure that it is in the same direction as the flow and attached to the body (the outside of the body represents the direction of fluid flow, according to the installation);

2. Please remove the actuator when welding installation;

3. Threaded or flanged: correct installation;

4. Disassembly: Ensure that the pressure has been removed before disassembling the valve; carefully disassemble and properly store the thread and sealing material after removal.

5. The torque required for the connection of the valve and the pipeline is large enough. The torque value of the torque is as follows: DN15 to 40Nm

6. Ensure that the pipeline and no residual interface when installing.

7. Make sure there are no leaks before use.

★Package Included:

1*DN15 Angle Seat Valve

ProductSiteLaunchDate : 2019-04-12T07:11:20.441Z
Size : One Size
UnitCount : 1
UnspscCode : 40141600
