Specification
Brand : Midzoo
BulletPoint : NE555+CD4017 Running LED Flow LED Light Electronic Production Suite DIY Kit
Color : gray
ExternallyAssignedProductIdentifier : 4862440128050
ExternallyAssignedProductIdentifier1 : 0843069182870
ExternallyAssignedProductIdentifier2 : 843069182870
FormFactor : Rack

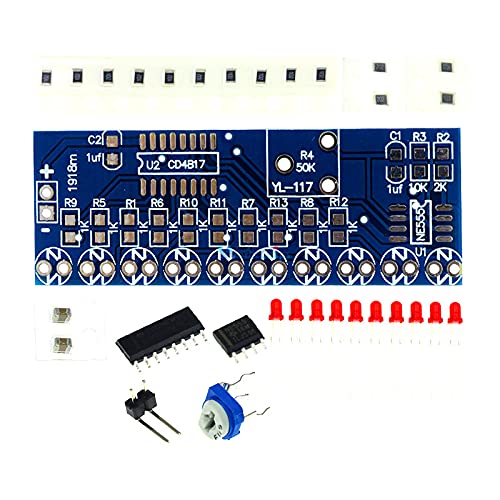

ItemName : NE555+CD4017 Running LED Flow LED Light Electronic Production Suite DIY Kit
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 8.8 inches
ItemPackageDimensions_Width : 3.7 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-train-control-and-power-supplies
Manufacturer : Midzoo
ManufacturerMinimumAge : 168
Material : Copper
ModelName : ATH90208
ModelNumber : ATH90208
NumberOfItems : 1
PartNumber : MiMODULE-13463
ProductDescription :
Descriptions:
Board size. 53mm*19mm
Supply Voltage :2.5 - 14 .5 V
This package is mainly decimal counter circuit and circuit generated by the clock , from the core of the self-excited NE555 multivibrator power through R2, R3, R4 charge the capacitor C1, C1 started when charging , NE555 2 feet still in low, so the output pin 3 goes high when power through R2, R3, R4 to charge C1 to 2/3 of the supply voltage , the output pin 3 level from high to low , NE555 conducting internal discharge , capacitor C1 through R4, R3, NE555 7 feet discharge until the voltage across C1 is less than 1 /3 of the supply voltage , NE555 and 3 feet level from low to high . C1 and charge again this cycle oscillations formed . Charging time : 0.695 (R2 + R3 + R4) C1, discharge time : 0.695 (R4 + R3) C1, R4 can be adjusted to control the output frequency of the oscillator , the oscillation clock signal is applied continuously NE555 CD4017 14 feet , the output terminal 10 is connected with the CD4017 10 LED, when the output terminal 10 turns CD4017 generated clock signal is applied at a high level , the D1 - D10 are sequentially lit to form a water -light effect .
You can adjust the flow rate adjustment R4 LED lights .
Package included:
1* NE555+CD4017 Flow LED Light Electronic Production Suite

ProductSiteLaunchDate : 2021-06-27T16:34:47.958Z
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : unisex
UnspscCode : 32000000
