Specification
Brand : OMAX
BulletPoint1 : Head: Trinocular 45 degrees inclined 360 degrees rotatable; Nosepieces: Quadruple; Eyepieces: a pair of wide field WF10X/18 (one with crosshair reticle); Objectives: Strain free achromatic, DIN 4x, 10x, 40x (spring), 60x (spring); Total magnification: 40x-100x-400x-600x; Condenser: NA1.25 Abbe Condenser with iris diaphragm and filter holder
BulletPoint2 : Head: Trinocular 45 degrees inclined 360 degrees rotatable; Nosepieces: Quadruple; Eyepieces: a pair of wide field WF10X/18 (one with crosshair reticle); Objectives: Strain free achromatic, DIN 4x, 10x, 40x (spring), 60x (spring); Total magnification: 40x-100x-400x-600x; Condenser: NA1.25 Abbe Condenser with iris diaphragm and filter holder
BulletPoint3 : Total magnification for brightfield: 40X-64X-100X-160X-400X-640X-1000X-1600X; Total magnification for phase contrast: 100X-160X-200X-320X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): 10X, 20X, 40X (S), 100X (S, Oil)
BulletPoint4 : Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch - 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm)
BulletPoint5 : Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation; Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment
BulletPoint6 : Phase contrast condenser disk with five switchable positions: one bright field NA1.25 with iris diaphragm Abbe condenser and four phase contrast filters, 10X,20X,40X,100X, each can be centered individually; Black palm rest on the base; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity; Metal framework; Power supply: 100V-240V 50/60Hz worldwide range (US and Canada power plug)
BulletPoint7 : 5-year warranty against manufacturing defects
Color : Multicolor
ExternallyAssignedProductIdentifier : 4007922150246
ExternallyAssignedProductIdentifier1 : 729440211240
ExternallyAssignedProductIdentifier2 : 0729440211240
Hazmat : 9
IncludedComponents : No

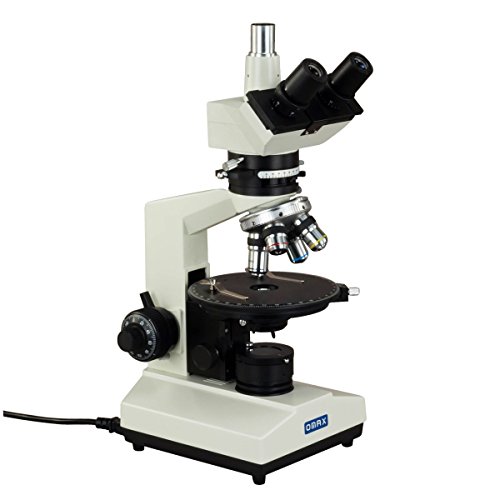

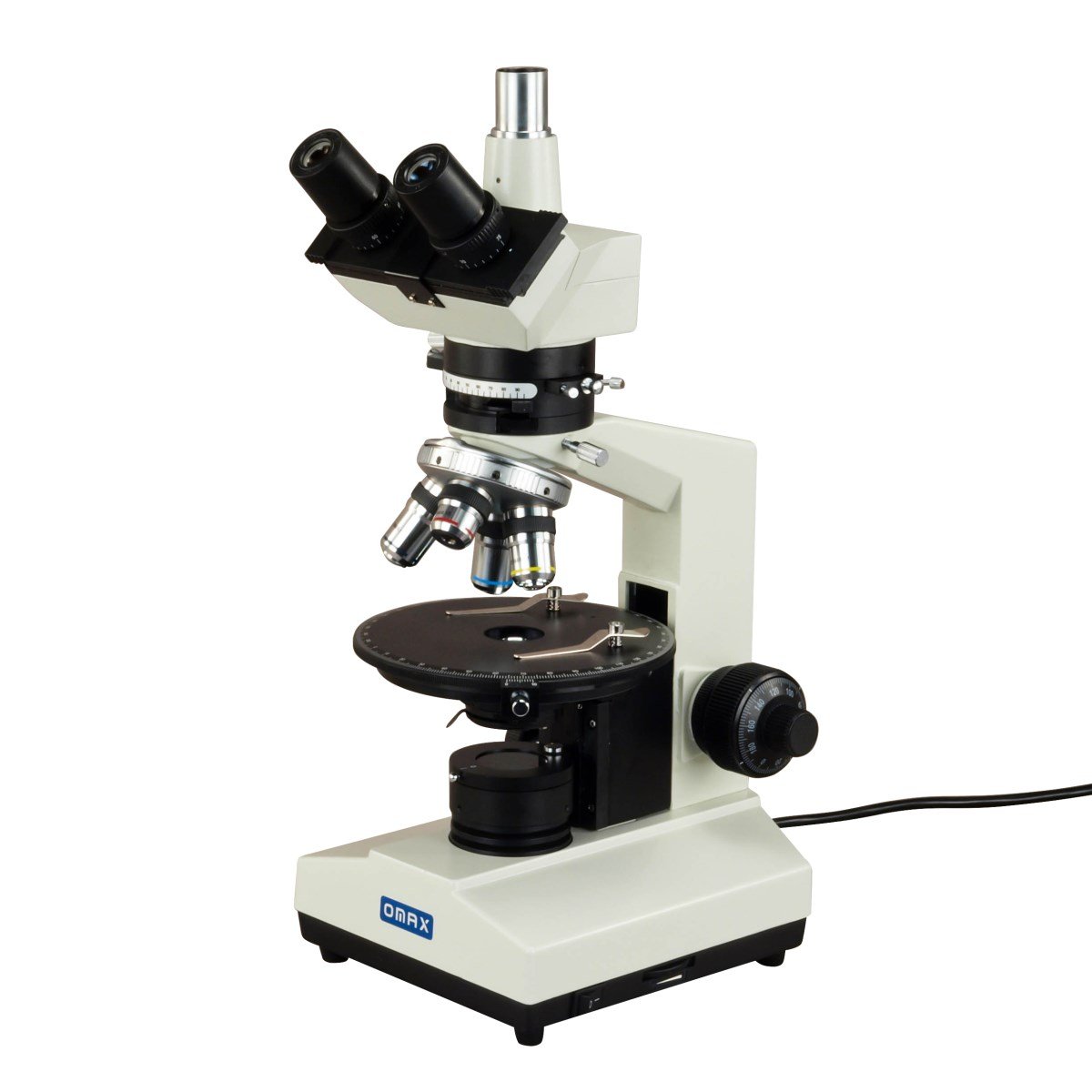

ItemName : OMAX 40X-600X Professional Trinocular Polarizing Microscope
ItemPackageDimensions_Height : 40 centimeters
ItemPackageDimensions_Length : 53 centimeters
ItemPackageDimensions_Width : 22 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 600 multiplier_x
Manufacturer : OMAX
Material : Vinyl
ModelName : L-KIT1149
ModelNumber : M837PL
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : M837PL
PowerSourceType : Corded Electric
ProductDescription : This polarizing microscope kit is useful for polarized light applications such as transparent mineral thin-section analysis and asbestos analysis. It comes with a 45 degree inclined 360 degree rotatable trinocular head, coarse & fine focusing and 20W transmitted halogen illumination. The polarizing filter can be swung out of the light path for an unpolarized light source. The microscope has a quadruple revolving nosepiece with center adjustable objectives and a rotatable circular stage. It has a built-in focusable Bertrand lens on rotatable disc with centering controls. The kit includes three compensator plates for installation into the Bertrand lens. The built-in analyzer can be removed from optical path. One of the 10x eyepieces comes equipped with a crossline reticle, which is useful for measurements and centering.
ProductSiteLaunchDate : 2012-10-24T19:20:52.645Z
RealAngleOfView : 45 degrees
Size : ワイドベース
StreetDate : 2024-04-25T00:00:01Z
Style : High magnification (13.7x) wide
SupplierDeclaredDgHzRegulation : not_applicable
Voltage : 240 volts
Voltage1 : 6 volts
Voltage2 : 240 volts
