Specification
Brand : OMAX
BulletPoint1 : Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil); Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
BulletPoint2 : Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil); Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
BulletPoint3 : Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit)
BulletPoint4 : Phase contrast objectives 10X, 20X, 40X(S), 100X(S, Oil); Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
BulletPoint5 : Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Phase contrast condenser disk with 5 switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
BulletPoint6 : Digital camera: - true color 3488 x 2616 pixels (9.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10 - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 729440214111
ExternallyAssignedProductIdentifier2 : 0729440214111
Hazmat : 9
ItemName : OMAX 40X-2000X Trinocular Phase Contrast Compound Microscope with Interchangable Phase Contrast Kit and 1.3MP USB Camera
ItemPackageDimensions_Height : 53 centimeters
ItemPackageDimensions_Length : 57 centimeters
ItemPackageDimensions_Width : 38 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2000 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : M8311-PHD-C10
NumberOfItems : 1
PartNumber : M8311-PHD-C10
PowerSourceType : Corded Electric

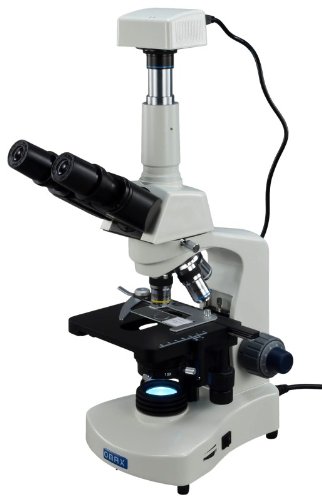

ProductDescription : The trinocular compound siedentopf LED microscope provides phase contrast microscope system & brightfield microscope system and USB imaging digital system. The phase contrast microscope comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, 1.3MP USB camera and a complete set of phase contrast kit. The compound microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. The 1280x1024 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows, Mac OS and Linux operating system can also be used to make measurements. This phase contrast compound microscopy is widely used clinical, biological, research and schools, specially for observing live cells.
ProductSiteLaunchDate : 2012-10-24T19:16:29.276Z
RealAngleOfView : 30 degrees
