Specification
Brand : KOPPACE
BulletPoint1 : Measurement Function:Point Spacing,Point-line Spacing,line Spacing,Center-to-Center Distance, Arc,Circle,Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Finding.
BulletPoint2 : This Product Has two USB Outputs,One For Mouse and one For U Disk.
BulletPoint3 : You Can Use the Mouse to Measure Directly on The Display Screen,Save Pictures and Excel Data.
BulletPoint4 : This Product Does not Contain Display.
BulletPoint5 : This Product is Connected to the Display Through the HDMI Interface.
BulletPoint6 : This Product Has Upper and Lower Lighting System.

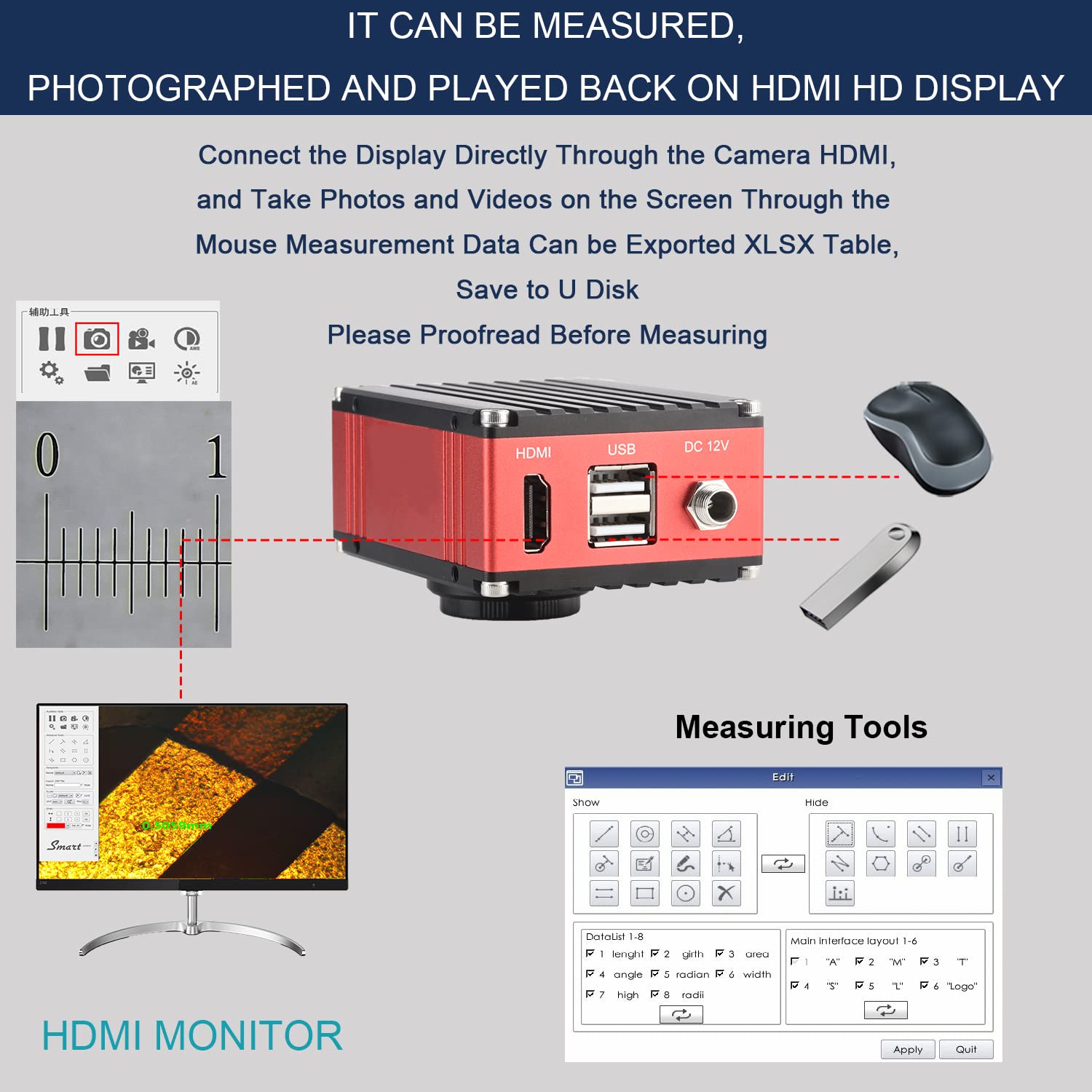

BulletPoint7 : This Product is HDMI/Network Port Output, through the HDMI Cable Directly Connected to the Monitor,or the Network Cable Connected to the Computer For use,The Monitor and Computer can be Output at the Same Time.
BulletPoint8 : The Product Has Two USB Ports,One For Connecting the Mouse and one For Connecting the USB Flash Drive.Measurements can be Made Directly on the Display Using the Mouse.Save Images and Excel Dat;
Color : Blue
CompatibleDevices : Personal Computer
ExternallyAssignedProductIdentifier : 7501046800256

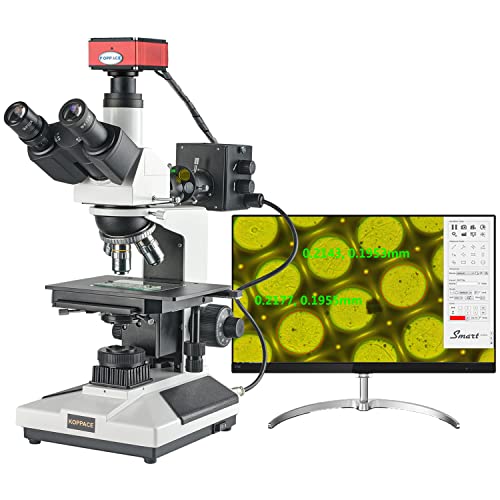

ItemName : KOPPACE 340X-2730X Electron Metallurgical Microscope 2 Million Pixels HDMI Output Supports Measurement and Photographing
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 400 multiplier_x
Manufacturer : KOPPACE
Material : Glass
ModelNumber : VE-41
PartNumber : KP-L2030-2K
PowerSourceType : Corded Electric
ProductDescription :

Model：KP-L2030-2K
Electronic Amplification：340X-2730X
Optical Magnification：50X、100X、200X、400X
Optical System：Finite Vision Optical System
Eyepiece：High Eye Point Large Field of View Flat Field Eyepiece WF10X18mm
Objective Lens：Long Working Distance Finite Flat Field Achromatic Metallographic Objective
PL5X/0.12 WD 8.05mm
PL10X/0.25 WD 7.86mm
PL20X/0.4 WD 7.2mm
PL40X/0.6 WD 3.6mm
Observation Tube：30° Tilt,Inverted Image,Hinged Trinocular Viewing Tube，Pupillary Distance Adjustment Range 55-75mm
Objective Lens Converter：Internal Positioning Four-Hole Converter
Focusing System：Coarse and Micro Coaxial Focusing Mechanism,Fine Adjustment Accuracy 0.002mm,With Locking and Limiting Device
Operating Platform：Double-layer Mechanical Moving Platform,Coaxial Adjustment of X and Y Directions in low hand Position;Platform Size 185mmX140mm,Moving Range:75mmX50mm
Up and Down Lighting System：6V 20W,Halogen lamp,Brightness Control.Vertical illumination With Field Diaphragm,Aperture Diaphragm and Polarizer,(Y,B,G)Filter and Frosted Filter
Condenser：Abbe condenser,Numerical Aperture N.A.1.25,Blue Filter and Frosted Glass,6V 20W Halogen LampBrightness Adjustable
Polarizer：Polarizer
Trinocular Interface：Three Eye Interface 1X CTV
Pixel：2 Million Pixels
Output Method：HDMI
Sensor Size：1/2＂CMOS
Resolution Frame Rate：60@1920X1080
Pixel Size：3.75μmx3.75μm
Color Adjustment：R/G/B
Exposure：Auto/Manual

Packing List：
1、Eyepiece WF10X/18mm One Pair
2、Objective Lens 5X * 1
3、Objective Lens 10X * 1
4、Objective Lens 20X * 1
5、Objective Lens 40X * 1
6、Microscope Body * 1
7、Trinocular Lens * 1
8、Power Cord * 1
9、2 MP HDMI Camera *1
10、Measuring Calibration Ruler *1
11、HDMI Line *1

ProductSiteLaunchDate : 2018-07-12T07:00:00.000Z
RealAngleOfView : 30 degrees
