Specification
AgeRangeDescription : Baby
Brand : KingVal
BulletPoint : for DIY FPV Racing Drone Quadcopter
BulletPoint1 : 4 Pole 12 Slot Hi-torque Motor Design
BulletPoint2 : CNC Machined 6061 T6 Billet Aluminum Heatsink Can
BulletPoint3 : High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
BulletPoint4 : Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5/M3 screws
BulletPoint5 : Precision balanced rotor,smoothness for best reliability and maximum RPM
Color : Upgrade Part
CpsiaCautionaryStatement : no_warning_applicable
Edition : 1 Pcs CCW
EducationalObjective : Shape Recognition
ExternallyAssignedProductIdentifier : 8032308621733
ExternallyAssignedProductIdentifier1 : 0613460822831
ExternallyAssignedProductIdentifier2 : 613460822831
Horsepower : 300 watts
IncludedComponents : Brushless Motor: 3670 - 1950KV BL Inrunner 4-Pole
ItemName : KingVal Replacement 2435 4800KV Sensorless Brushless Motor Shaft 2.3mm with 25A Brushless ESC Compatible with 1/16 1/18 RC Car
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 4.7 inches
ItemPackageDimensions_Width : 2.7 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-motors
Manufacturer : KingVal
ManufacturerMaximumAge : 1500
ManufacturerMinimumAge : 168
Material : Aluminum
ModelName : Brushless Motor: 3670 - 1950KV BL Inrunner 4-Pole
ModelNumber : KingVal Blue 2.3mm 2435 4800KV+25A
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
OperationMode : Automatic
PackageLevel : unit
PartNumber : KingVal Blue 2.3mm 2435 4800KV+25A
PowerSourceType : [PO] Battery
ProductDescription :

Features:

★ 4 Pole 12 Slot Hi-torque Motor Design

★ CNC Machined 6061 T6 Billet Aluminum Heatsink Can

★ High Purity Copper Windings Maximizes Efficiency

★ High RPM ABEC5 Oversized Bearings

★ Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5/M3 screws

★ Precision balanced rotor,smoothness for best reliability and maximum RPM

★ Stator - Super Thin (0.35mm) Laminations

★ Removable/Replaceable Rotor

★ Precision Engineered for Maximum Energy Conversion

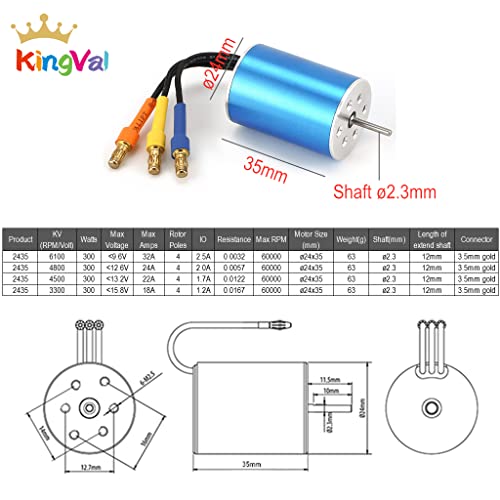

Specification:

Brand: KingVal

Product: 2435 Sensorless Motor

Motor Size: ø24x35mm

KV(RPM/Volt): 4800

Watts: 300

Max Voltage: <12.6V

Max Amps: 24A

Rotor Poles: 4

IO: 2.0A

Resistance: 0.0057

Max RPM: 60000

Shaft Diameter: 2.3mm

Length of extend shaft: 12mm

Connector: 3.5mm gold

N.W: 57g

ESC Specifications:

Model: 25A

Cont.Current/Burst Current: 25A/100A

Motor Type: Sensorless Brushless Motor

Suitable Car: 1/18, 1/16 car

Suitable Brushless Motor: ≥12T

Resistance: 0.004ohm

Battery: 2 cells Lipo,4-6 cells NiMH

BEC Output: 5V/2A(analog mode)

Dimension: 25*30*14.5mm

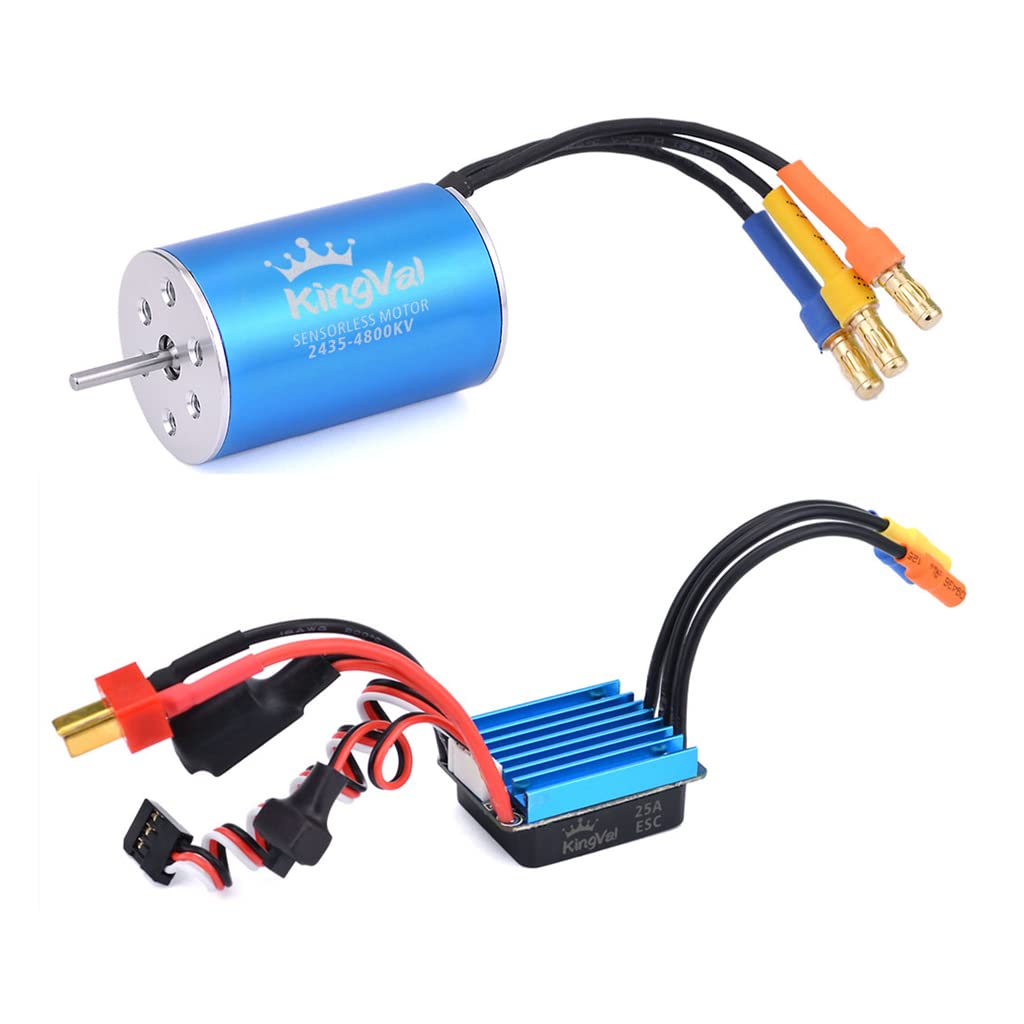

Package List:

1 x 2435 Sensorless Motor

1 x 25A Brushless ESC

ProductSiteLaunchDate : 2024-05-15T03:32:23.998Z
SafetyWarning : Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Size : 4800KV+25A
Speed : 35000 rpm
StreetDate : 2021-06-10T00:00:01Z
Style : Sensorless 2435
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Men
TargetGender : unisex
Theme : hobby
UnspscCode : 26111500
Voltage : 1000 kilovolts
