Description

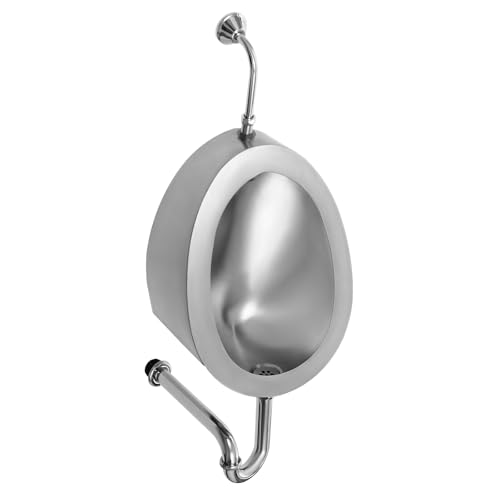

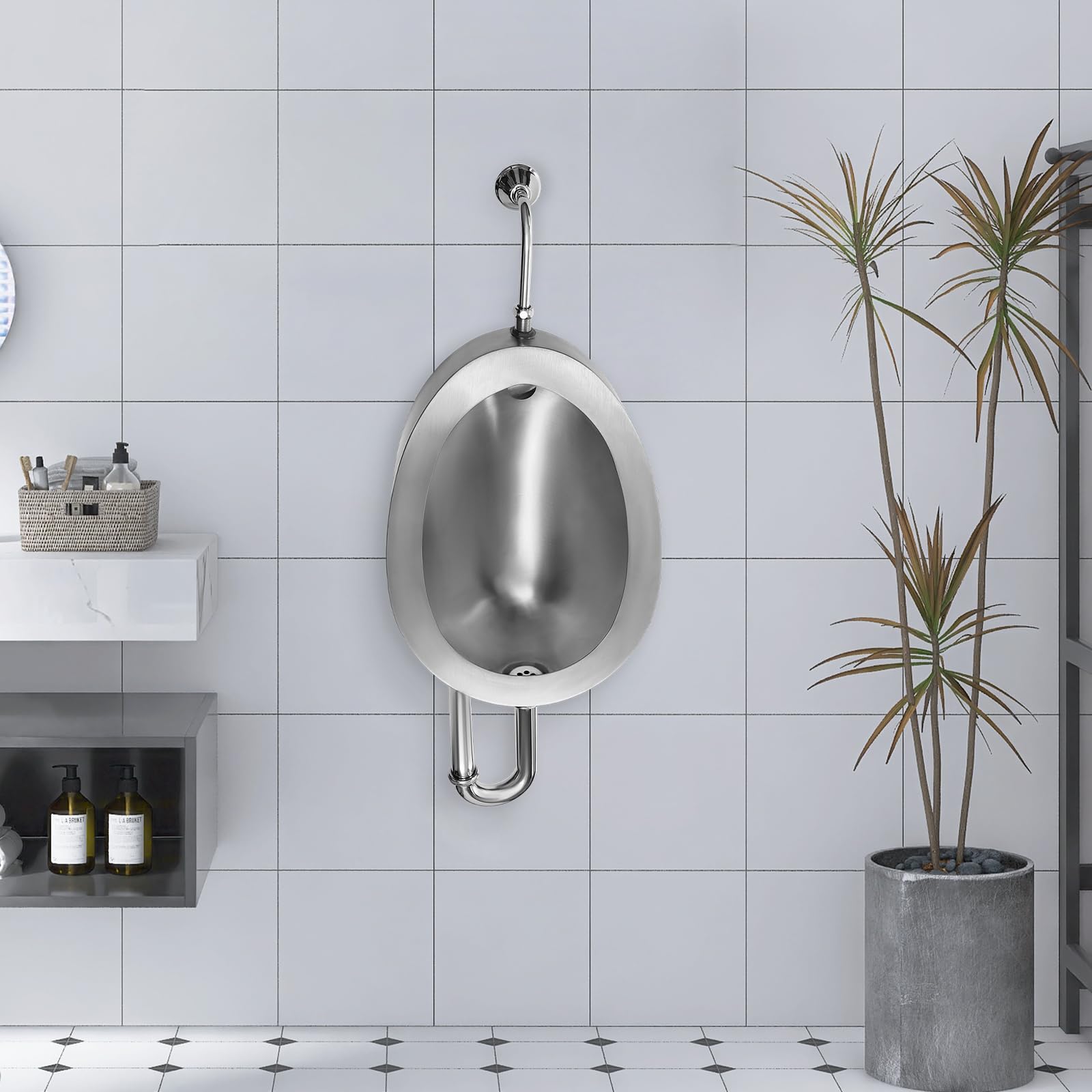

The automatic sensor urinal flusher brings great convenience to your life. Intelligent sensor water design reduces your direct contact with the flusher and can also effectively help you save water, providing you with a clean, fresh, hygienic, and sanitary environment. The wall-mounted design makes it more space-saving, which is undoubtedly an ideal assistant to greatly improve your quality of life!
Details
Indication Signal: When the human body enters the induction range, the sensor will send out the induction indication signal, 2 seconds after the induction signal is sent out, the flushing valve will automatically start flushing for about 2 seconds.
Mounting Holes: Three triangularly distributed holes allow for stable installation without damaging the wall.
Hidden Spout: It enhances the overall aesthetics of the bathroom, and is more suitable for the modern minimalist style of decoration needs.
Smooth Edges: The smooth and burr-free edges enhance the beauty of the product and safety during installation and cleaning.
Application
It is mainly used in restrooms or toilets in public places such as restaurants, shopping malls, airports, hospitals, schools, and other institutions.
Specification
Material: 304 Stainless Steel, Copper
Process: Brushed, Nano-Coated, PW Multi-layer Plating, One-piece Molding
Color: Silver
Style: Modern
Mounting: Wall Mounted
Assembly Required: Yes
Universal Mounting Height: 50cm/19.69in
Left and Right Punching Position Spacing: 20cm/7.87in
Sensing Distance Adjustment Range: 20-80cm/7.87-31.50in
Vertical Distance of Outlet Pipe: 29cm/11.42in
Panel Thickness: 2.5mm/0.1in
Commode Size(D*H): 32*45cm/12.6*17.72inch
Surround Width: 10cm/3.94in
Power Source: 4* AA Alkaline Batteries ( Not Included )
Flushing Time After Use: Approx. 6-7 Seconds
Applicable Water Pressure: 0.1MPA- 0.6MPA
Optimal Design Water Pressure: 0.1MPA- 0.3MPA
Temperature: 0.1-45℃/33.18-113°F
Nozzle Diameter: G1/2''(DN15)
Power Supply: DC6V, AC220V
Energy Consumption: ≤0.5mW
Package Size: 37*35*47cm/14.57*13.78*18.5in
Net Weight: 3kg/6.61lbs
Gross Weight: 3.2kg/7.05lbs
Package Included
1*Automatic Sensor Urinal Flusher
1* Chinese Instruction Manual
All Accessories for Use
Notes
1.Please check the style and size before purchasing.
2.When selecting the installation location, it is important to avoid direct sunlight or strong light shining on the sensor to avoid affecting the normal operation of the sensor.
3.Please do not leave any glass decorations or other obstacles within 3.28 feet in front of the installed sensor to avoid affecting its normal operation.
4.Please note that 4 AA alkaline batteries are not included in this product.
5.It is recommended that the water pressure is in the range of 0.3 to 0.6 MPa for satisfactory flushing results.
6.Please take good care of all accessories, especially the suction cups.
7.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
