Specification
Brand : FanyiTek
BulletPoint1 : 【4:3 600nit IPS display】8.4" AA084SC01 800X600 LCD Screen,Outline Size 199.5 ×149×12(H×V×D)mm,Display Area 170.4 × 127.8 (H×V)mm, Contrast Ratio 1000:1 ,Viewing Angle 85/85/85/85 ,Signal Interface 20 pins LVDS (1 ch, 6/8-bit),Backlight WLED,Input Voltage 3.3V.
BulletPoint2 : 【LCD Controller Board】 Video input: VGA DVI,Audio Output: Speaker Connector (8ohm 2W 4Pin PH2.0 Speaker).Please use in insulated environment.
BulletPoint3 : 【Input Power Supply】12V DC 2A, port size :5.5x2.1mm, (Pls prepare the power adapter seperately).

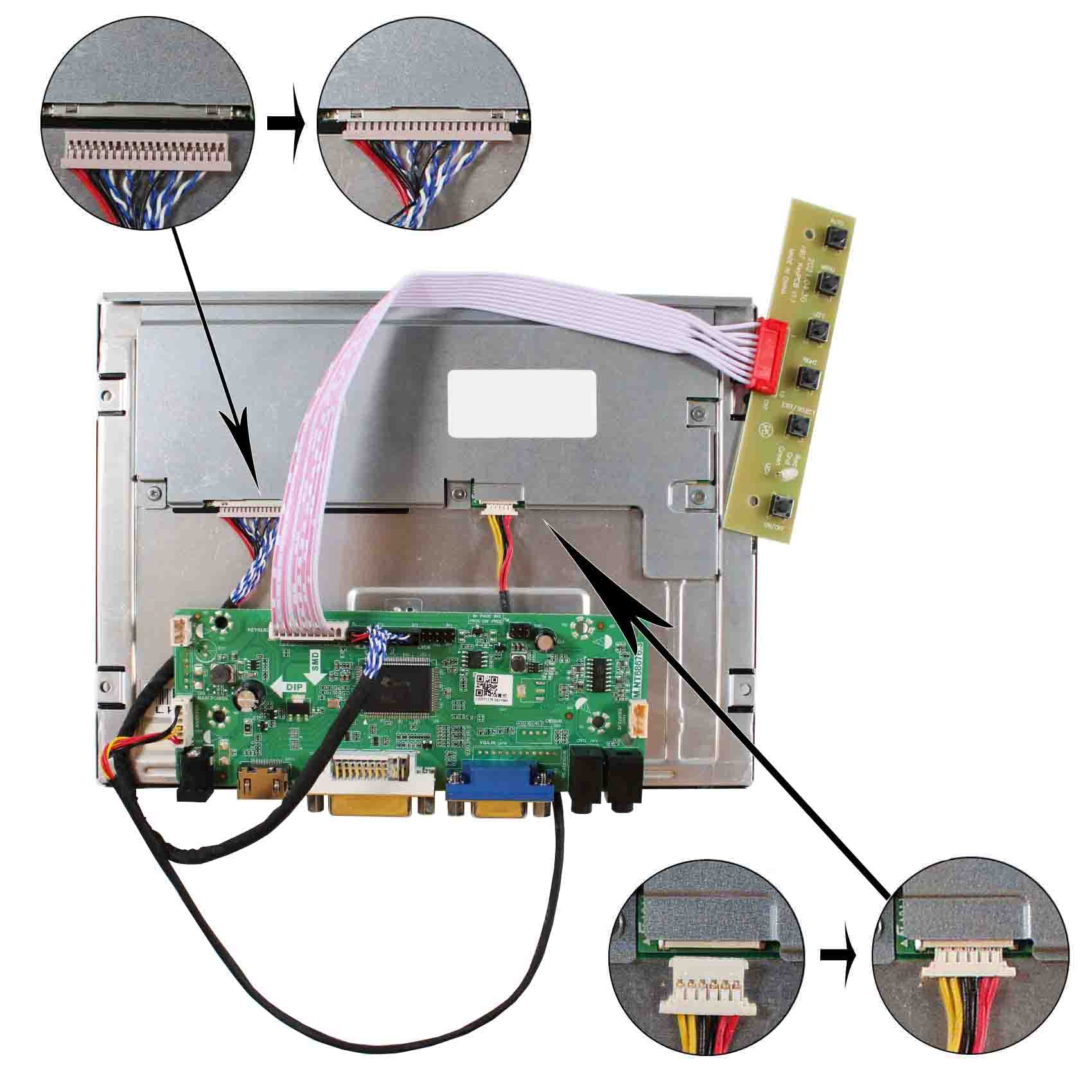

BulletPoint4 : 【Plug and play】 Connecting cables and ports as picture ,power on ,LED light become green ,then connect signal cable ,the screen will be lit up .

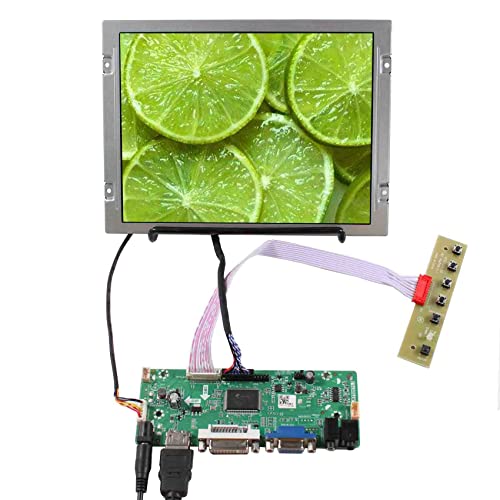

BulletPoint5 : 【Packing lists】1× VGA DVI LCD Controller Board M.NT68676,1× 8.4inch AA084SC01 800X600 LCD Screen,1× Backlight Cable,1× LVDS Cable,1× Keyboard With Cable
Color : HDMI DVI VGA Board + AA084SC01
ExternallyAssignedProductIdentifier1 : 0619438574788
ExternallyAssignedProductIdentifier2 : 619438574788
ItemName : FanyiTek 8.4 inch 8.4" 800x600 AA084SC01 Wall-Mounted IPS LCD Dispaly and VGA DVI Audio LVDs Controller Board 20 pins
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : digital-signage-televisions-and-displays
Manufacturer : FanyiTek
Material : Plastic
ModelNumber : Hilitanda3s9yemib0
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : LTM230HL07
ProductDescription :

LCD Controller Board:

DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: DVI VGA

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 139mm x 53mm x 17mm

8.4" AA084SC01 800X600 LCD Screen:

Display Mode SWV, Normally Black, Transmissive

Resolution 800RGB)×600

Outline Size 199.5 ×149×12(H×V×D)

Display Area 170.4 × 127.8 (H×V)

Brightness 600 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface 20 pins  LVDS (1 ch, 6/8-bit) , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list :

1× VGA DVI LCD Controller Board M.NT68676

1× 8.4inch AA084SC01 800X600 LCD Screen

1× Backlight Cable

1× LVDS Cable

1× Keyboard With Cable

ProductSiteLaunchDate : 2023-05-17T09:14:54.897Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 43211900
WarrantyDescription : 3 Months
