Specification
Brand : FanyiTek
BulletPoint : LCD Panel G1216
BulletPoint1 : 【Screen Advantage】7 inch 1000nit high brightness TFT LCD screen ,with 1024x600 resolution ,>Outline Size 164.9× 100×3.5mm (H×V×D),Display Area 154.215×85.92mm (H×V),Contrast Ratio 600:1 ,Signal Interface LVDS (1ch 8bit) 20Pin,Backlight WLED,Input Voltage 3.3V.
BulletPoint2 : 【LCD Driver Board】Video Input: DVI VGA,Audio Output: Speaker Connector,Pls use it in insulated environment.
BulletPoint3 : 【Input Power】12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.
BulletPoint4 : 【Capacitive Touch Panel】The design of touch panel makes the operation more convenient, No button damage issue for after long time use,it support 10 points multi-touch, can also protect the screen from being scratched directly.
BulletPoint5 : 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
Color : HDMI VGA DVI Board & 7" 1000nit Touchscreen
ExternallyAssignedProductIdentifier1 : 0619438624582
ExternallyAssignedProductIdentifier2 : 619438624582

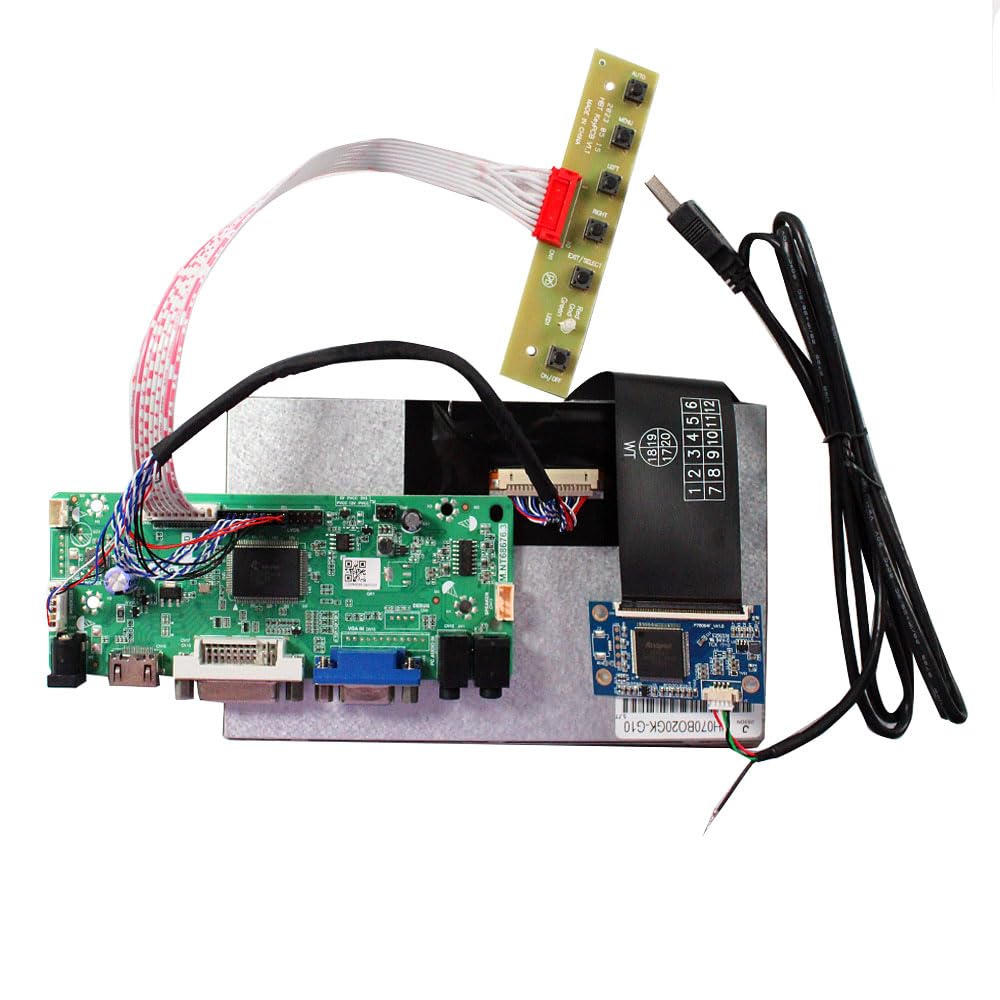

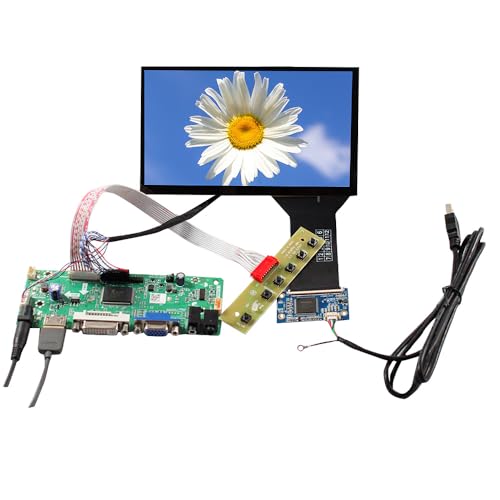

ItemName : FanyiTek 7 inch 1024x600 1000nit TFT LCD Touch Screen 20 pins and DVI VGA Audio LVDS Controller Board M.NT68676
ItemPackageQuantity : 1
ItemTypeKeyword : digital-signage-televisions-and-displays
Manufacturer : FanyiTek
Material : Copper
PartNumber : WTYB_WX_12237
ProductDescription :

LCD Controller Board:

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: DVI VGA

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 53mm x 17mm

7" VS-JH070BO20GK-1000 1024x600 Touch LCD Screen:

Display Mode IPS, Normally Black, Transmissive

Resolution 1024(RGB)×600

Outline Size 164.9× 100×3.5mm (H×V×D)

Display Area 154.215×85.92mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 85/85/85/65 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1ch 8bit) 20Pin

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list:

1× VGA DVI LCD Controller Board M.NT68676

1× 7" VS-JH070BO20GK-1000 1024x600 1000nit Brightness Capacitive LCD Screen

1× LVDS Cable

1× Keyboard With Cable

ProductSiteLaunchDate : 2023-11-16T03:28:16.544Z
UnspscCode : 43211900
