Specification
AspectRatio : 16:9
AudioInput : HDMI
Brand : FanyiTek
BulletPoint : Part #WFR112549Lcd Display Cover Ph-8
BulletPoint1 : 13.3" 1080P eDP Display with location holes ,178 degree full viewing angle ,30pin signal connector ,Outline Size 303.35(W)×192.82(H) ×3(D) mm,Display Area 293.76(W)×165.24(H) mm,350nit Brightness,Contrast Ratio 700:1 .
BulletPoint2 : Display driver board video input: Type-C ,Output: eDP USB (max 500mA),Audio Output: Speaker.(8ohm 2W Speaker With 4Pin 1.25mm Pitch Connector).
BulletPoint3 : Input power adapter: USB type C connector (PD 18W,Pls prepare by yourself)

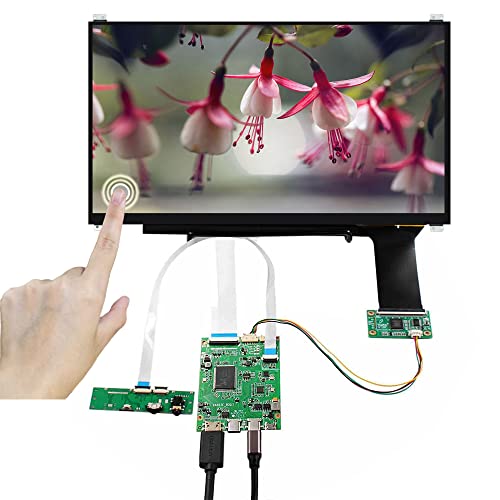

BulletPoint4 : The design of touch panel makes the operation more convenient, no button damage issue for after long time use,it support 10 points multi-touch, can also protect the screen from being scratched directly.
BulletPoint5 : Important ,There are two ways to activate touch function:1.Connecting the USB port ,then whatever enter into /type C signal cable ,the touch function can all be worked . 2.Connecting the touch cable to touch port on VS-RTD2556HC-V2 board ,then only connect the Type C video input port ,the touch function can be worked.
Color : Black
ConnectivityTechnology : HDMI
ConnectivityTechnology1 : USB
ConnectivityTechnology2 : HDMI
ControllerType : Remote Control
ControlMethod : touch
ExternallyAssignedProductIdentifier : 8806091355034
ExternallyAssignedProductIdentifier1 : 0619438575280
ExternallyAssignedProductIdentifier2 : 619438575280
HardwareInterface1 : mini_hdmi
HardwareInterface2 : usb
HardwareInterface3 : usb2.0
ImageAspectRatio : 16:9
ImageContrastRatio : 700:1
IncludedComponents1 : Stand
IncludedComponents2 : TV

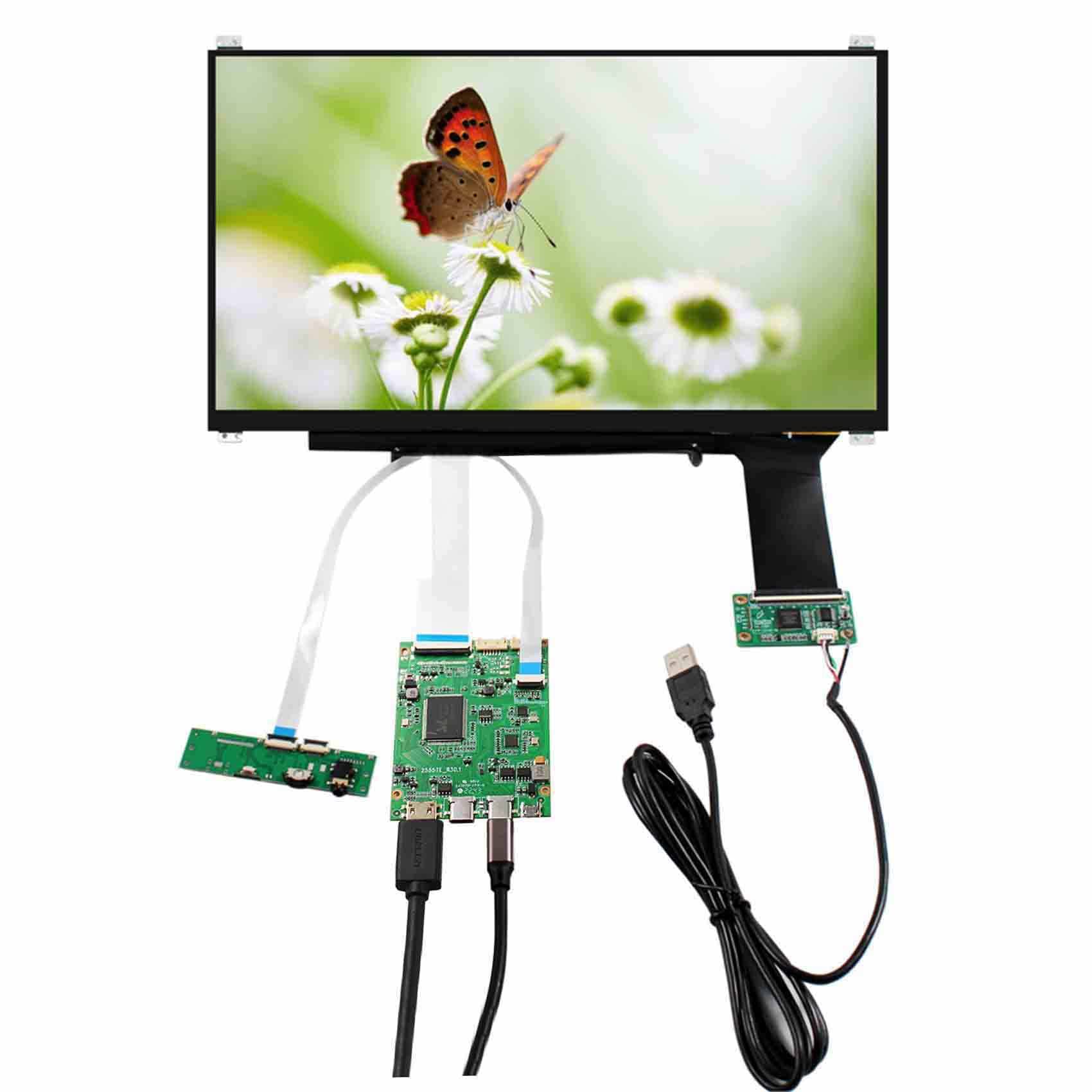

ItemName : FanyiTek 13.3 inch Wall-Mouted N133HSE 1920x1080 IPS Capacitive Touch Screen and Type C USB C LCD Controller Board VS-RTD2556HC-V2
ItemPackageDimensions_Height : 2.75 inches
ItemPackageDimensions_Length : 14.56 inches
ItemPackageDimensions_Width : 10.23 inches
ItemPackageQuantity : 1
ItemTypeKeyword : digital-signage-televisions-and-displays
LineVoltage : 220_vac_50_hz
Manufacturer : FanyiTek
Material : copper
ModelNumber : 55UL3J
ModelYear : 2018
MountingType : Wall Mount
NativeResolution : 1920x1080
PackageLevel : unit
PartNumber : 55UL3J-E.AEK
ProductDescription :

LCD Controller Board:

Type C Control Board Work for eDP LCD Screen

Input Power Adapter: Type-C connector

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Input: Type-C;

Output: eDP USB (max 500mA)

Audio Output: Speaker

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski

Nederlands Korean Japanese

Board Size: 82mm x 60mm x 4mm

13.3" LCD Screen N133HSE:

Display Mode AAS, Normally Black, Transmissive

Resolution 1920(RGB)×1080

Outline Size 303.35(W)×192.82(H) ×3(D) mm

Display Area 293.76(W)×165.24(H) mm

Brightness 350 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list:

1× TYPE-C LCD Controller Board VS-RTD2556HC-V2

1× 13.3inch eDP 1920X1080 IPS LCD With Capacitive Touch Panel

1x USB Cable

1× Keyboard With Cable

Important ,There are two ways to activate touch function:

1.Connecting the USB port ,then whatever enter into /type C signal cable ,the touch function can all be worked .

2.Connecting the touch cable to touch port on VS-RTD2556HC-V2 board ,then only connect the Type C video input port ,the touch function can be worked.

ProductSiteLaunchDate : 2022-08-16T07:00:00.000Z
RealAngleOfView : 170 degrees
RefreshRate : 60 hertz
Resolution : FHD 1080p
ResponseTime : 4 milliseconds
ScreenSurfaceDescription : Glossy
Size : 13.3 inch
SupportedInternetServices1 : YouTube
SupportedInternetServices2 : Browser
TotalHdmiPorts : 1
TotalUsbPorts : 2
TotalVideoOutPorts : 1
TunerTechnology : ATSC
UnspscCode : 43211903
ViewingAngle : 178 degrees
