Specification
Brand : DPLXQPP
BulletPoint1 : ☪【AUTOMATIC SOLDERING】The reflow soldering machine is fully automatically controlled by a microcomputer, and the entire soldering process from preheating, soaking, reflow soldering to cooling is automatically completed. It has functions such as reflow, drying, heat preservation, shaping, and rapid cooling.
BulletPoint2 : ☪【WELDING AREA WIDTH】Welding furnace, power: 1500W; welding area: 300 x 320 mm. Large connecting area and high efficiency.
BulletPoint3 : ☪【EFFECTIVE TEMPERATURE CONTROL】Reflow soldering machine, temperature range: 0℃-280℃; cycle time: 1~8 minutes. The machine has an efficient cooling system. Equipped with 1 ventilation duct installation interface.
BulletPoint4 : ☪【8 TEMPERATURE SELECTION】This reflow oven has 8 temperature parameter curves to choose from, and has setting heating and forced cooling functions.

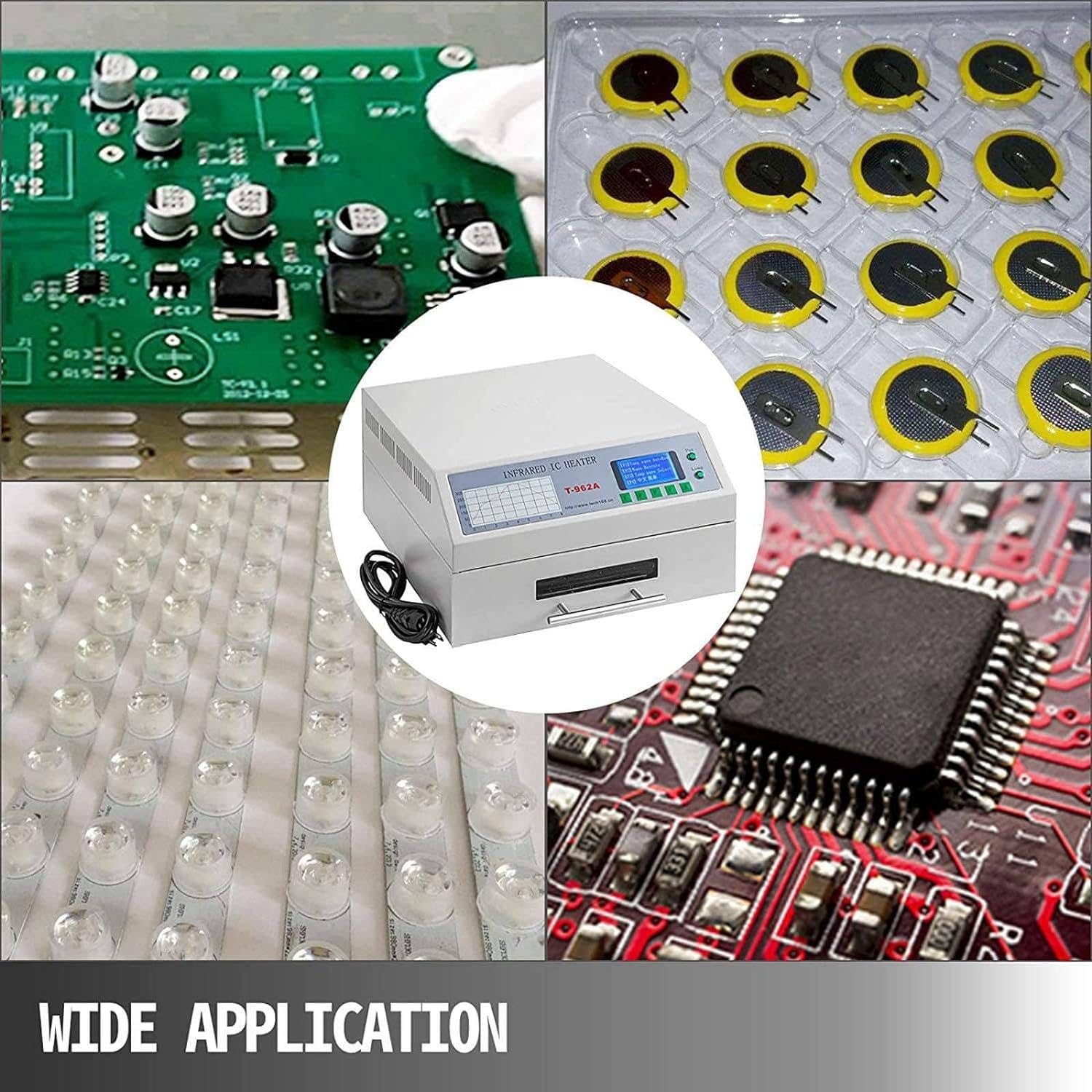

BulletPoint5 : ☪【WIDE APPLICATION】This reflow oven can weld single and double circuit boards of various package shapes. Correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
Color : #411
ControlsType : semi integrated
ExternallyAssignedProductIdentifier : 8714428511674
GpsrSafetyAttestation : 1
HeatingElementType : Sealed

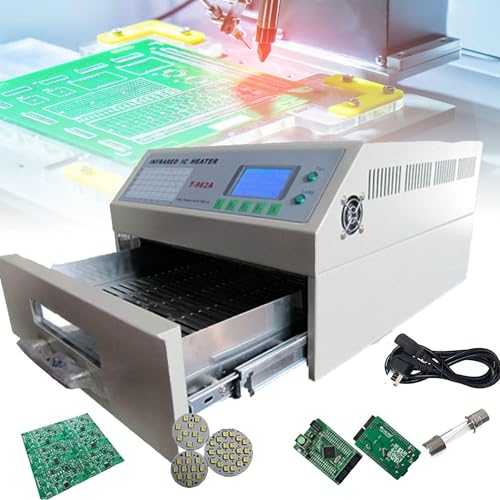

ItemName : DPLXQPP T-962a Reflow Oven,1500w Automatic Reflow Machine,Professional Infrared Heater Welding Machine,with Hot Air Circulation Test
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : commercial-ovens
Manufacturer : DPLXQPP
Material : Aluminum
ModelName : Aqur20201iu6wz32pd-11
ModelNumber : Aqur20201iu6wz32pd-11
NumberOfHeatingElements : 2
PartNumber : 101873-803139
ProductDescription : ▲FEATURES：
This machine is a microprocessor-controlled reflow oven that works automatically under the control of a microcomputer.
It can meet different SMD BAG welding requirements on PCB components. Using fast infrared and circulating air heating, the temperature is very accurate and even.
The user interface is implemented using the T962A input keys and LCD display.
Select preset heating modes through user interaction and watch the progress of the heating cycle on the LCD display.

▲8 TEMPERATURE CURVES AVAILABLE：
Curve 1, applicable to: 85Sn/15Pb; 70Sn/30Pb
Curve 2, applicable to: 63Sn/37Pb; 60Sn/40Pb
Curve 3, applicable to: Sn/Ag3.5; Sn/Cu.75; Sn /Ag4.0/Cu.5
Curve 4, applicable to: Sn/Ag2.5/Cu.8/Sb.5; Sn/Bi3.0/Ag3.0
Curve 5, applicable to: red glue standard curing temperature curve, Heraeus PD955M
Curve 6, suitable for: PCB board rework, etc.
Curve 7/8, suitable for: user-defined curve

▲SPECIFICATIONS:
Infrared reflow oven model: T962A
Rated power: 1500W
Maximum effective welding area: 300 x 320 mm (11.8 x 12.6 inches)
Power supply: AC110V/220V 50Hz/60Hz
Temperature range: 0°C - 280°C
Cycle time: 1~8 minutes

▲PACKAGE CONTENTS：
1 x reflow oven
1 x instruction manual

▲After-sales service: If you have any questions, please contact us by email, we will provide the best service within 24 hours!
ProductSiteLaunchDate : 2023-12-20T00:00:00.000-08:00
Size : 24cm
UnitCount : 1
UnspscCode : 23271800
Wattage : 1500 watts
