Description

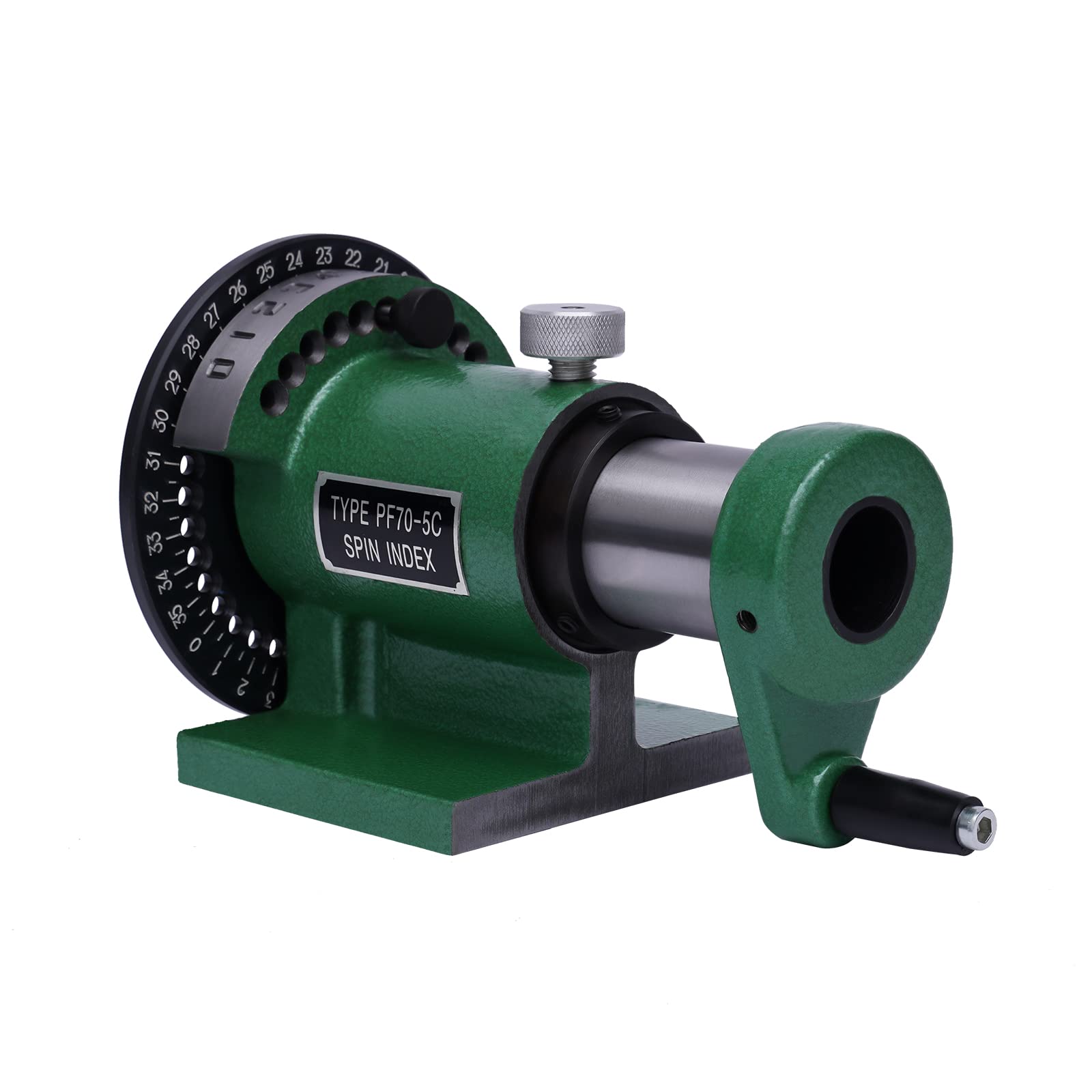

This spin indexing fixture is made of high-quality cast steel and is very strong and durable. It will help you to operate precisely and be your right-hand assistant for machining slots for milling cutters, cutting teeth for gears, curved milling slots, or drilling a bolt-hole circle around the circumference of a part.
Specification
Material: Cast Steel
Color: Green
Module: PF70-5C
Indexing Accuracy: ± 4'
Capacity for Standard 5C Collet: 1-1/8"
Height of Center: 70mm/2-3/4"
Spindle Travel: 2-1/16"
Spindle Cone Radial Runout: 0.010mm/0.0004"
The Radial Center of the Spindle is Bouncing (25mm/0.98" From the Spindle End): 0.03mm/0.0012"
The Parallelism of the Center Line of the Spindle to the Bottom Surface: 0.02mm, 0.0008''
Product Size(L*H): 23.6*13.4cm/9.29*5.28''
Package Size: 22*14*14cm/8.66*5.51*5.51''
Gross Weight: 5.8kg/12.79lbs
Package Included
1*Spin Indexing Fixture
1*English Manual
All Accessories for Use
Notes
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
