Specification
Brand : Generic
BulletPoint : Brand: IDT
BulletPoint1 : The module itself can be adapted to 3.3 V and 5 V system
BulletPoint2 : 40 ° C to +85 ° C temperature range, timing accuracy kept at ± 5ppm (± 0.432 sec / day)
BulletPoint3 : 1 Hz and 32.768 kHz output
BulletPoint4 : Accuracy of ±3℃ digital temperature sensor
BulletPoint5 : Complete clock calendar functions include seconds, minutes, hours, day, date, month and year timing , provide valid until the year 2100 year compensation

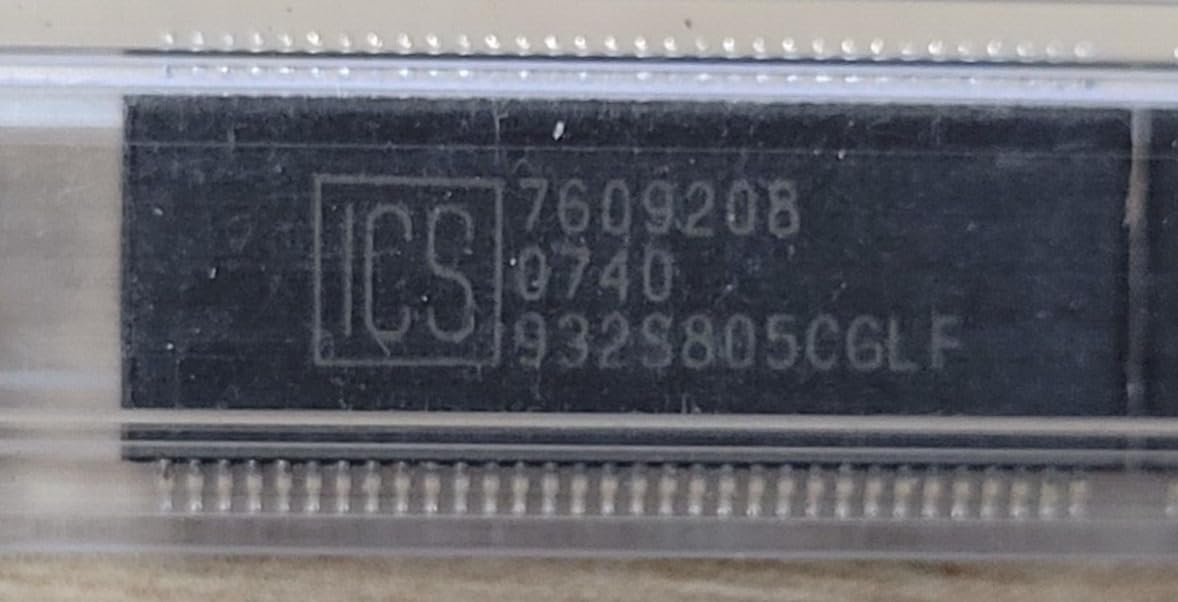

ItemName : Used (1 PC) ICS932S805CGLFT IDT IC K8 Compatible with Clock CHIP 64-TSSOP
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 9 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : clock-integrated-circuits
Manufacturer : Texas Instruments
Material : Copper
ModelName : LimoUvUqFJtyCW
ModelNumber : LimoUvUqFJtyCW
NumberOfItems : 1
PartNumber : ICS932S805CGLFT
ProductDescription : |A, PCF8563 clock chip
PCF8563 is a S company launched an industrial I2C bus interface with a very low power consumption of multi-functional clock / calendar chip. PCF8563 a variety of alarm function, timer function, clock output function and interrupt output function to complete a variety of complex timing services, and even for the microcontroller to provide watchdog function. It is a cost-effective clock chip, which has been widely used in the field of electric meters, water meters, gas meters, telephones, fax machines, portable instruments and battery powered instruments and meters.
Main performance index of PCF8563:
You can use the standby battery
Wide voltage range of 1.0~5.5V.
This ultra low power consumption: the typical value is 0.25uA
It through the I2C bus serial input / output
This programmable clock output frequency: 32.768KHz, 1024Hz, 32Hz, 1Hz.
* four alarm and timer function
It includes a reset circuit, oscillator capacitor and power failure detection circuit
Open drain interrupt output.
400KHZ read and write speed
Two, module interface description
Left battery mounting interface
Pay attention to the installation direction, according to the direction of the image installation
Right INT interrupt output (generally not used)
COT clock output (generally not used)
SCL IIC clock interface MCU IO port
SDA IIC digital interface MCU IO port
The GND module of extraterrestrial grounding
VCC power supply interface 3.3v-5v|
ProductSiteLaunchDate : 2023-09-27T18:29:07.544Z
UnitCount : 1
