Specification
BatteriesIncluded : 1
BatteriesRequired : 1
BatteryInstallationDeviceType : installed_in_vehicle
Brand : YFYIQI
BulletPoint1 : Current range : 0mA ～500A；Resolution: 1mA ; Accuracy : ±1.5%±5dgt ;
BulletPoint2 : Power Supply: DC 3.7V rechargeable lithium battery(full charge about 4.2V)
BulletPoint3 : Test Mode: Clamp CT, true RMS
BulletPoint4 : Data Storage: 200,000 groups (Power down or replace battery will not lose the data
BulletPoint5 : Function:Measure online monitoring and recording 1 ~ 3 channel AC leakage current and current, used for circuit insulation fault troubleshooting, monitoring intermittent leakage fault, check the happen time of insulation fault and maintenance lines, etc.
Color : Red and Black
ContainsBatteryOrCell : battery
ExternallyAssignedProductIdentifier : 7696060323215
IncludedComponents : Three Channel Current Monitor Recorder

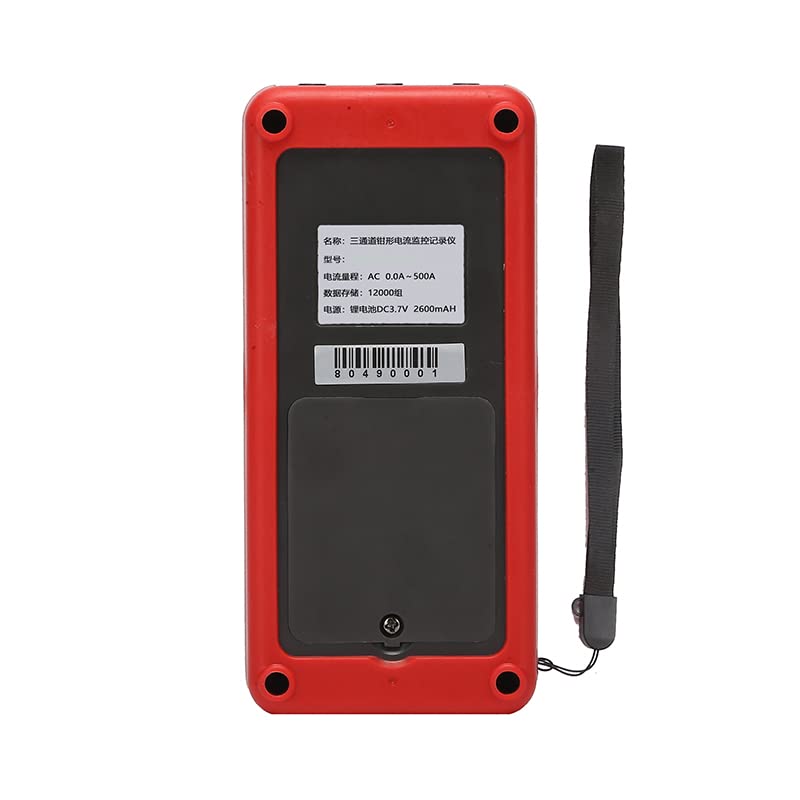

ItemName : YFYIQI Three Channel Current Monitor Recorder with Range 0mA to 500A Resolution 1mA 200,000 Groups Data Storage LCD Display
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 23 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : clamp-meters
Manufacturer : YFYIQI
MeasurementAccuracy : refer to the details
ModelName : Garosa4dnxyt9fwu
ModelNumber : 202505121524
NumberOfItems : 1
NumberOfLithiumIonCells : 1
PartNumber : 202505121524
PowerSourceType : Corded Electric
ProductDescription : YFYIQI Three Channel Current Monitor Recorder with Range 0mA to 500A Resolution 1mA 200,000 Groups Data Storage LCD Display

Specification:

Power Supply: DC 3.7V rechargeable lithium battery(full charge about 4.2V)

Test Mode: Clamp CT, true RMS

Display Mode: LCD：128dots×64dots

Current Clamp: 1-3PCS(Optional)

Instrument Dimension: Host:78mm×165mm ×42mm ; Current clamp 030: 115mm ×70mm×33mm

Weight: Host: 330g ; Current clamp 030: 170g

LCD Dimension: Display field:44mm×27mm

Current Clamp Model: 030

Current Clamp Lead Cable: 2 core shield wire, length 2M

Sampling Rate: 2 times/second

Data storage: 200,000 groups (Power down or replace battery will not lose the data)

Record Period: Set the record interval time within 1 second ~ 99 minutes, 0 seconds is not automatically stored.

Record Time:
Interval time 1 seconds, can continues recording 48 hours
Interval time 10 seconds, can continues recording 120 hours
Interval time 1 minute, can continues recording 168 hours

Download Speed: 60KB/ Min

Line Voltage: Below AC600V circuit test

Exceed measure range overflow function

Rated Power: In power save mode about 6mA, Max about 35mA

Communication Interface: USB

Record Time: In power save mode continues working 7days

Working Temperature:-10℃～40℃；below 80%rh

Temperature Error: Below -10℃ or above 40℃ error influence 1%

Stored Temperature: Storage: -10℃～60℃ ；below 70%rh

Insulation Resistance: 100MΩ or larger, 1000V

Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution Class 2, CATⅢ(600V),IEC61326(EMC standard)
ProductSiteLaunchDate : 2025-05-11T07:00:00.000Z
Size : medium
Style : Three Channel Current Monitor Recorder
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
