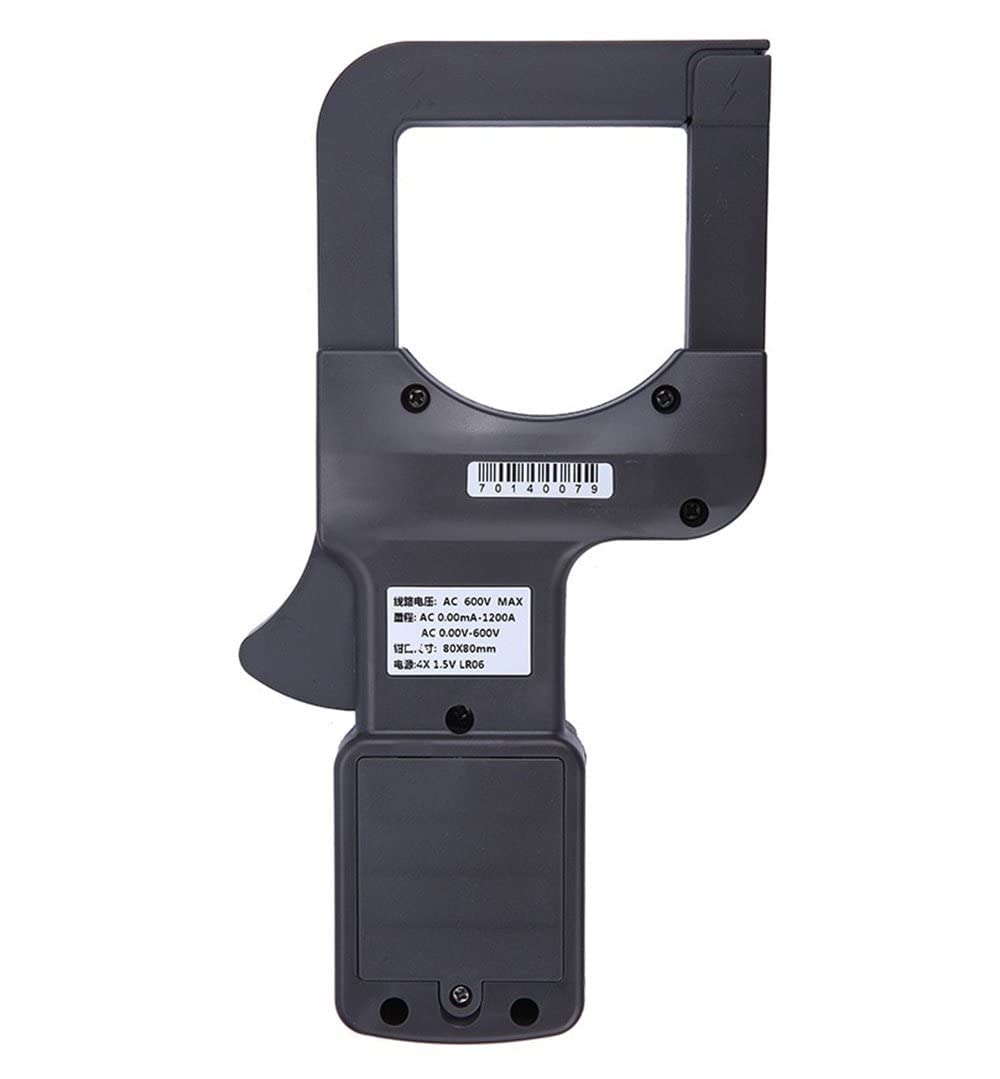

VTSYIQI Large Caliber 3 Phase Power Tester Current Clamp Meter Digital Three Phase Energy Meter with RS232 Interface Current AC 0.0A to 2000A and Power AC 0.0KW to 1200KW 600V Voltage

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 68400/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : VTSYIQI
BulletPoint1 : ◆ The core is made of magnetic shielding material, which has strong anti-interference ability and ensures the accuracy and stability of the measurement. The meter measures current in a non-contact manner. The operation is safe, simple, and has a backlight function. Measurements are also clearly visible in dim places.
BulletPoint2 : ◆ Instrument has data retention, data storage and other functions, can save 200 sets of data, the instrument through the RS232 interface with the computer, the saved data can be uploaded to the computer, easy to read, analyze, save and so on.
BulletPoint3 : ◆ Working Temperature and Humidity: -10℃-40℃; 80%rh; Storage Temperature and Humidity: -10℃-60℃; below 70%rh
BulletPoint4 : ◆ Accuracy: ±1.5%rdg±5dgt(23℃±5℃, below 75%rh); Automatic shutdown: 15 minutes or so automatically shut down; Overflow: "OL" symbol appears
BulletPoint5 : ◆ large-diameter three-phase clamp meter can measure three-phase AC voltage (0.00V~600V), current, leakage current (0.0A~2000A), phase between voltages, phase between voltage and current (0.0°~360°), Frequency (25Hz ~ 100Hz), phase sequence, electrical energy, active power, reactive power, apparent power, power factor, total power and other parameters, clamp head size 80mmx80mm.
Color : RED AND Black
ExternallyAssignedProductIdentifier : 7605907578220
IncludedComponents : MAIN HOST
ItemName : VTSYIQI Large Caliber 3 Phase Power Tester Current Clamp Meter Digital Three Phase Energy Meter with RS232 Interface Current AC 0.0A to 2000A and Power AC 0.0KW to 1200KW 600V Voltage
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : clamp-meters
Manufacturer : VTSYIQI202416052VTSYIQI
Material : VTSYIQI202416052VTSYIQI
MeasurementAccuracy : HIGH ACCURACY
ModelName : Dioche0egct7xu95
ModelNumber : VTSYIQI202416052VTSYIQI
NumberOfItems : 1
PartNumber : VTSYIQI202416052VTSYIQI
PowerSourceType : Battery Powered
ProductDescription : Technical Specifications
Function: Measure three phase AC voltage, leakage current, current, active power, reactive power, apparent power, power, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence
Clamp Size: 80mm×80mm(can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)
Display area: 43mm×29mm
Range:
Current Range: AC 0.0A-2000A, Resolution: 0.1A
Power Range: AC 0.0KW-1200KW, Resolution: 0.1KW
Voltage Range: AC 0-600V, Resolution: 0.01V
Frequency Range: 25Hz-100Hz, Resolution: 0.1Hz
Power Factor Range: 0.3-1.0(Capacitive or inductive) , Resolution: 0.001
Phase Range: 0.0°-360.0°, Resolution: 0.1°
Power Energy Range: 0.0000KWh-72000KWh, Resolution: 0.0001KWh
Accuracy: ±1.5%rdg±5dgt(23℃±5℃, below 75%rh)
Data Storage:200 sets,”FULL the memory is ful” symbol indicate
RS232 Interface: With RS232 interface, download data to computer for analysis and management, RS232 communication wire, 1.8m
Automatic shutdown: 15 minutes or so automatically shut down
Power Consumption: No backlight: 25mA, backlight: 50mA
Test Mode: Clamp CT, integral mode
Frequency: 50Hz ,60Hz automatic identification
Data Hold: "HOLD" symbol appears
Overflow: "OL" symbol appears
Line Voltage: Below AC 600V line measurement
Gear Shift: Automatic shift
Sample Rate: About 2 times/second
Measurement time: 0.5 seconds/time
Voltage alarm: When the battery voltage is lower than 5.2V, Low battery voltage symbol display
Insulation strength: AC2kV/rms (between core and box)
Suitable for safety regulations: IEC1010-1, IEC1010-2-032, Pollution Degree 2, CAT III (600V)
Clamp meter quality: 1000g
Power:6V DC(LR6×4 alkaline dry batteries(Battery not included in the package
ProductSiteLaunchDate : 2017-03-13T07:00:00.000Z
Size : Large
Style : VTSYIQI202416052VTSYIQI
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
