Specification
Brand : WnewTools
BulletPoint1 : 2. Support for measurement of AC DC voltage, AC DC current, resistance, capacitance, and more.
BulletPoint2 : 1. This portable LCD clamp meter features with high reliability, high safety and easy operation.
BulletPoint3 : 3. Support for full range overload protection, a perfect electrical measurement instrument.
BulletPoint4 : 4. Support for V.F.C frequency conversion measurement and support for NCV strong electric induction.
BulletPoint5 : 5. Widely used in the detection, maintenance and repair of power equipment such as electric power and circuits.
ExternallyAssignedProductIdentifier1 : 0769902982349
ExternallyAssignedProductIdentifier2 : 769902982349
IncludedComponents : No

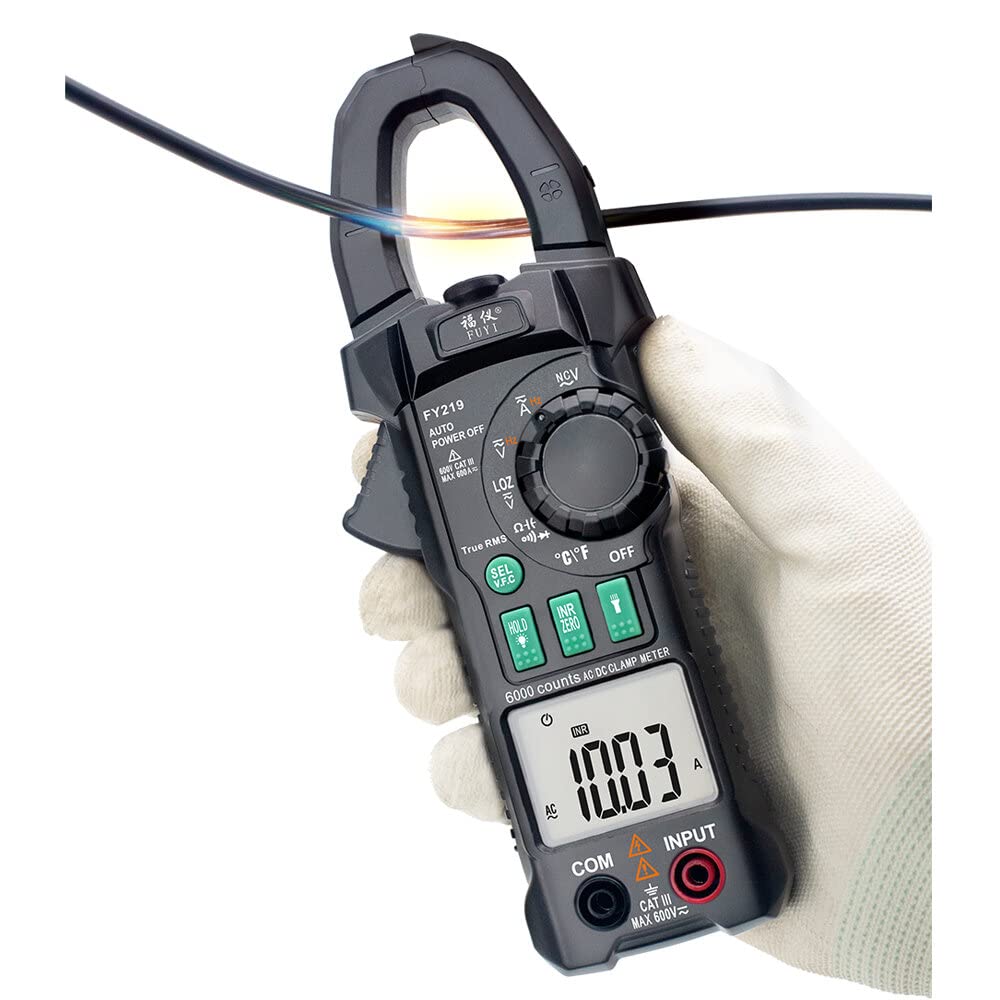

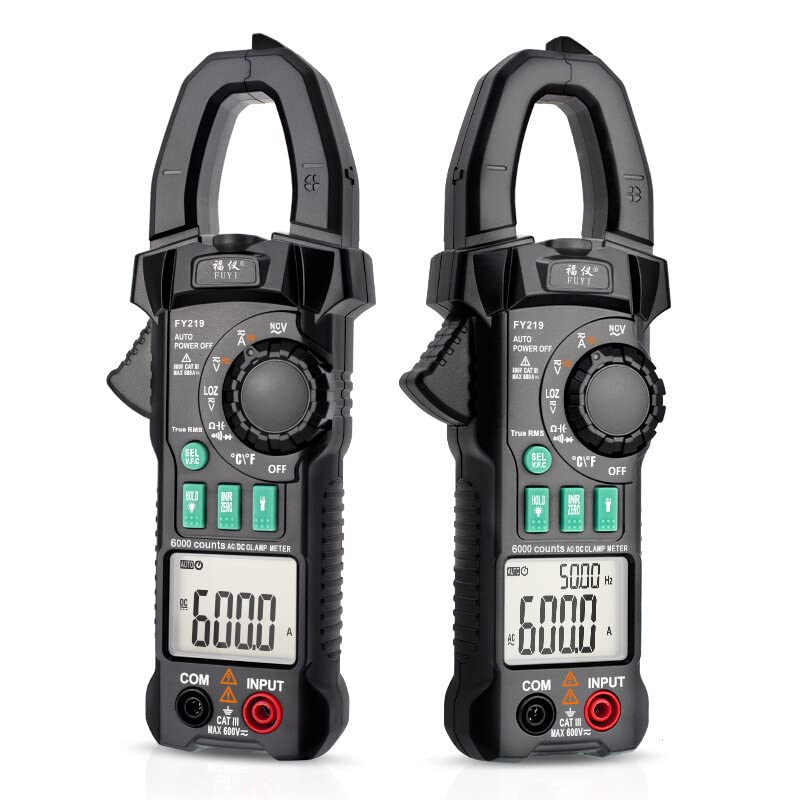

ItemName : FY219 Double Display AC/DC True RMS Digital Clamp Meter Portable Multimeter Voltage Current Meter Inrush Current V.F.C Frequency Conversion Low Impedance Voltage Measurement
ItemPackageQuantity : 1
ItemTypeKeyword : clamp-meters
Manufacturer : Wnew
ModelName : Clamp Meter (Battery Not Included)
ModelNumber : ATOOL1954245
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL1954245
PowerSourceType : hand_powered
ProductDescription :

Feature:

1. This portable LCD clamp meter features with high reliability, high safety and easy operation.

2. Support for measurement of AC DC voltage, AC DC current, resistance, capacitance, and more.

3. Support for full range overload protection, a perfect electrical measurement instrument.

4. Support for V.F.C frequency conversion measurement and support for NCV strong electric induction.

5. Widely used in the detection, maintenance and repair of power equipment such as electric power and circuits.

6. True RMS clamp meter and support for measurement inrush current(can measure the instant start current),low impedance voltage.

Specification:

Condition: 100% Brand New

Item Type: Clamp Meter

Material: ABS

ModelRangeResolutionAccuracy

DC Voltage600mV/6V/60V0.1mV/0.001V/0.01V± (0.8% Reading + 3 Digits)

600V0.1V± (1.0% Reading + 3 Digits)

AC Voltage6V/60V/600V0.001V/0.01V/0.1± (1.2% Reading + 5 Digits)

200-600V (V.F.C)1V± (1.5% Reading + 10 Digits)

AC Current60A10mA± (3.0% Reading + 10 Digits) V.F.C Mode ± (4.0% Reading + 10 Digits)

600A100mA

DC Current60A10mA± (3.0% Reading + 10 Digits)

600A100mA

Resistance600Ω/6KΩ/60KΩ/600KΩ/6MΩ0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ± (0.8% Reading + 3 Digits)

60MΩ0.1MΩ± (2.0% Reading + 5 Digits)

Capacitance60nF/600nF/6μF/60μF/600μF/6mF/60mF0.01nF/0.1nF/0.001μF/0.01μF/0.1μF/0.001mF/0.01mF± (4% Reading + 3 Digits)

Frequency (Clamp Frequency Measurement, A File)600Hz0.1Hz± (1.5% Reading + 5 Digits)

1KHz0.001KHz

Frequency (Clamp Frequency Measurement, V File)600Hz0.1Hz± (1.5% Reading + 5 Digits)

6KHz0.001KHz

Temperature-30℃-0℃1℃± (5% Reading + 3 Digits)

0℃-400℃± (1.0% Reading + 3 Digits)

400℃-1000℃± (2.0% Reading + 2 Digits)

On-off Beep100Ω1ΩThe resistance is not more than 50 built-in buzzer continuous sounding

Diode0.001VDisplay Approximate Diode Forward Voltage Value

Other Parameters

Sampling RateAbout 3 Times/Sec

Jaw Opening Maximum SizeApprox. 25mm / 1in

Display5999 LCD Display

Battery2 x 1.5V AAA Battery (Not Included)

Product Size191 x 70 x 37 mm / 7.5 x 2.8 x 1.5 in

WeightApprox. 405g / 14.3oz

Package Included:

1 x Clamp Meter (Battery Not Included)

1 x English Instruction Manual

1 x One Pair Test Leads

1 x Thermocouple
