Specification
Brand : flexman

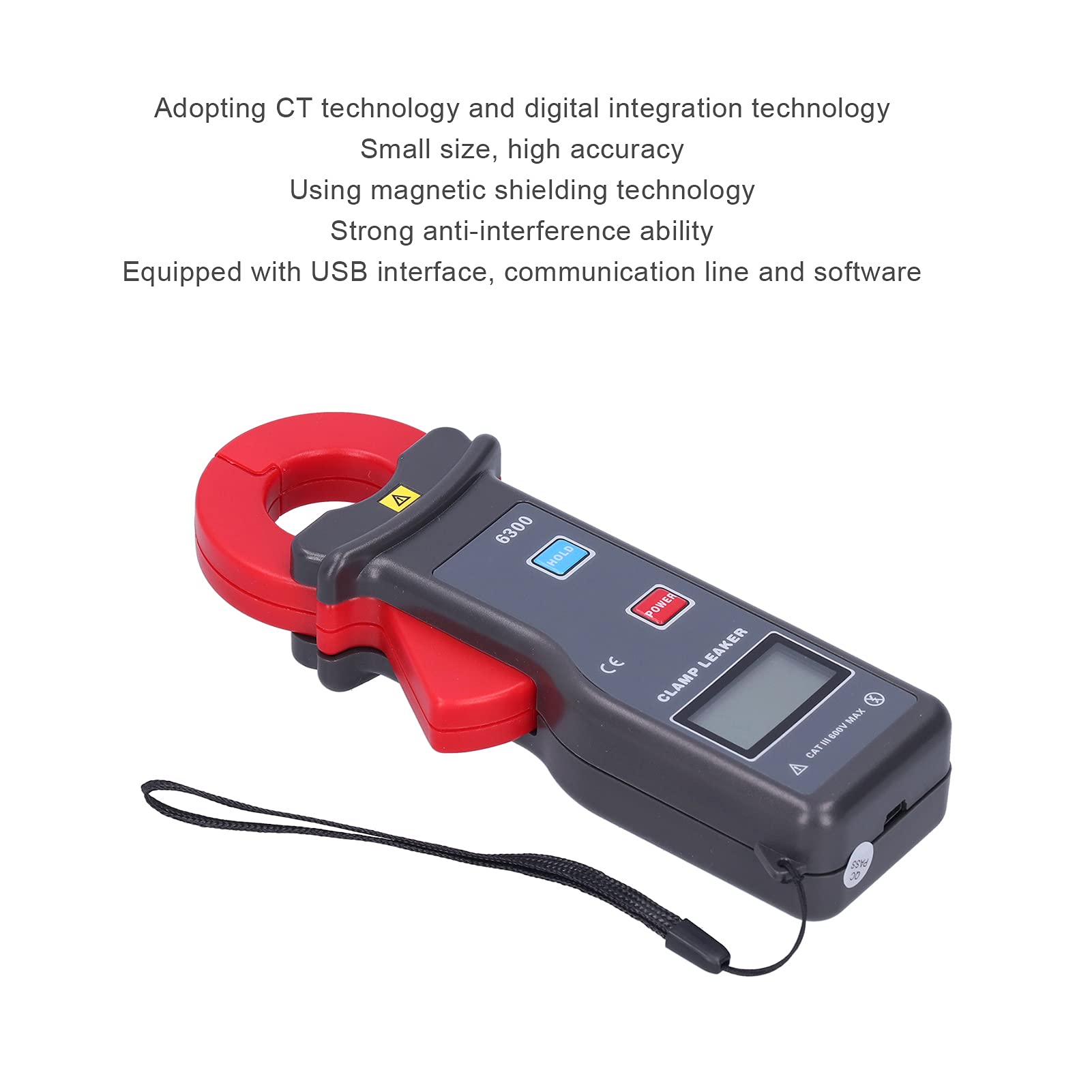

BulletPoint1 : The current meter uses CT technology and digital integration technology, small size.
BulletPoint10 : ⭐ Dimension: 280*70*45mm ⭐ Weight: 510g ⭐ Accessories: User’s manual, outer packing box, a bag, a pair of test leads, a TP01K thermocouple , and two 1.5V batteries
BulletPoint2 : The clamp leakage current meter has high accuracy, whose resolution ratio is up to 1uA.
BulletPoint3 : Using magnetic shielding technology. It is hardly affected by the external magnetic field and has strong anti‑interference ability.
BulletPoint4 : Equipped with USB interface, communication line and software, the stored data can be uploaded to the computer, which is convenient for reading, saving and printing.
BulletPoint5 : This meter can automatically shut down to reduce battery consumption and extend battery life.
BulletPoint6 : ⚡ Resistance: 600Ω (±0.5%+3), 6K/60K/600K/6M (±0.5%+2), 60MΩ(±1.5%+3)
BulletPoint7 : ⭐ Duty cycle:1% to 99%(±1%)
BulletPoint8 : ⭐ Measurement mode: Double-integral style A/D transform
BulletPoint9 : ⭐ Over range indication: OL ⭐ Working environment: 0~40℃, relative humidity <80%
Color : HT208D
IncludedComponents : No

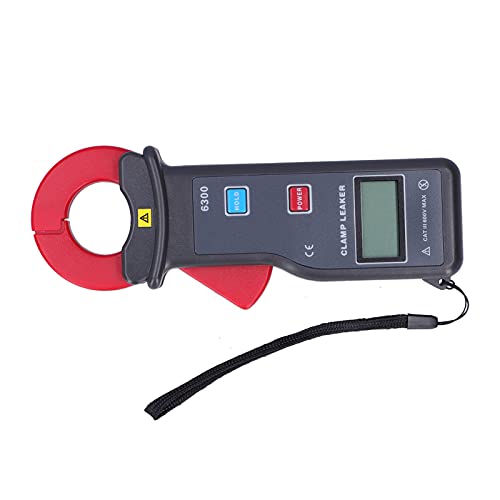

ItemName : FLEXMAN Current Meter, 0Ma~60A Digital Clamp Leakage Current Meter with USB Communication
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : clamp-meters
Manufacturer : flexman
MeasurementAccuracy : 0.1mm
ModelName : flexmanorg0kdfqxp
ModelNumber : flexmanorg0kdfqxp
NumberOfItems : 1
PartNumber : flexmanorg0kdfqxp
ProductDescription : Item Type: Current Meter
Material: ABS
Product TypeRangeResolution
ETCR63000mA-60A1uA
FunctionMeasurement of AC leakage current, online measurement of AC current
Power Supply1X6F22 9V (not included)
Test ModeClip CT, integral mode
DisplayFour digit LCD
Sampling RateAbout 2 times/sec
Frequency50/60HZ
Jaw SizeApprox. 25x30mm / 1.0x1.2in
Range offset automatic
Accuracy (23℃±3℃, below 70%RH)0-60A±1.5%±5dgt
60A-199.9A ±4%±5dgt
200A-300A ±4%±5dgt
300A-600A ±4%±5dgt
Line test below AC600V
Stored Data99 groups, flashing FULL indicates that the storage is full
Peak HoldingPeak capture hold function, long press HOLD during the test without letting go to display the peak
Data RetentionData retention function: DH
Leakage DisplayOver-range Leakage function: OL
Automatic ShutdownThe meter will automatically shut down after about 5 minutes after booting to reduce battery consumption
When the battery voltage drops to about 7.2V, the low battery voltage sign “ ” will be displayed to remind you to replace the battery.
Rated PowerAbout 5mW
Insulation StrengthAC2kV/rms (between core and box)
Suitable for Safety Regulations IEC1010-1, IEC1010-2-0, pollution, etc. 2, CAT (600V)
Working Temperature and Humidity0℃-40℃, below 80%rh
Storage Temperature and Humidity-10℃-60℃, below 70%rh

How to Use:
Take the product, open the back cover with a tool, install the battery, and the user can adjust the measurement range to use the measurement. HOLD is the data holding key. The measurement can be measured by simply putting the wire into the jaws, which is very convenient.

Package List：
1 x Current Meter (Battery Not Included)
1 x USB Communication Line
1 x CD
1 x Cloth Bag
1 x Manual
