Specification
BatteriesRequired : 1
Brand : EITAI
BulletPoint1 : With English customer service and technical support, we offer a smooth and secure user experience.
BulletPoint2 : 【Function】Three phase sequence detection (positive phase, reverse phase and default phase), live wire inspection, simple circuit testing, live wire identification, phase deficiency judgment, broken wire location search, circuit breakpoint detection, and line inspection, etc.

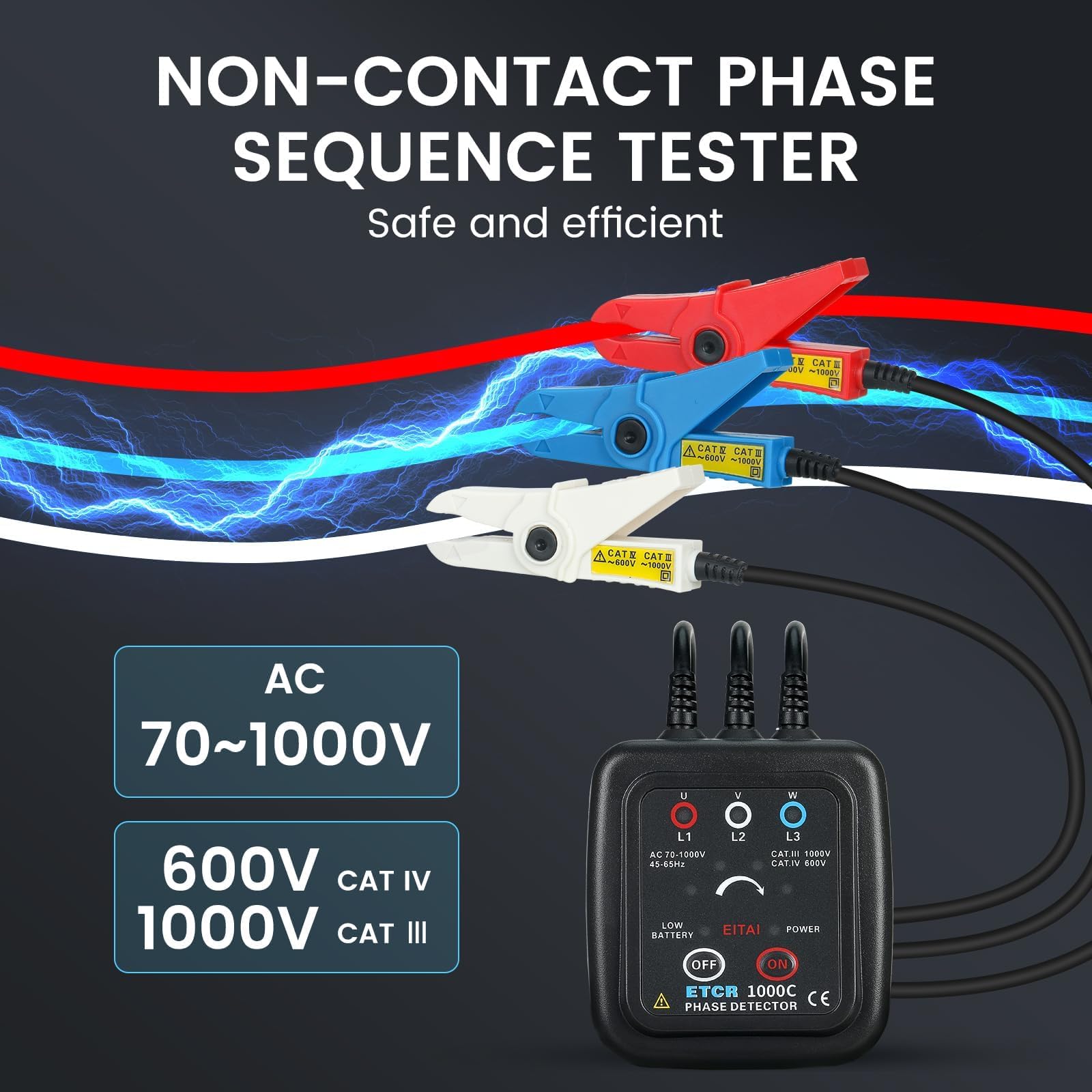

BulletPoint3 : 【Safety】EITAI ETCR1000C Non-Contact Phase Sequence Tester utilizes a clamp-on non-contact inductive measurement method, eliminating the need to strip the insulation from electrical cables. You can safely inspect phase sequence without touching high-voltage exposed wires by simply clamping the super-inductive high-insulation clamps onto the insulation sheath of live wires.
BulletPoint4 : 【Easy to use】The phase rotation meter equipped with a magnet on the phase detector meter’s bottom plate, it can be easily attached to the metal case of the equipment during testing for convenient operation. Real-time data is presented via both voice and display for clear and immediate understanding.
BulletPoint5 : 【Specification】Measuring voltage: AC70V-1000V. Safety regulations: EN 61010-1:2001 EN 61010-031:2002, pollution level 2, CAT3 (600V), transient overvoltage 6000V.
Color : Red, White, Blue, Black
ExternallyAssignedProductIdentifier : 7648245123967
ExternallyAssignedProductIdentifier1 : 0085353388425
ExternallyAssignedProductIdentifier2 : 085353388425
IncludedComponents : 1*Non-Contact Phase Sequence Tester, 1*Manual, 1*Storage Bag
ItemName : EITAI ETCR1000C Non-Contact Phase Sequence Tester, AC 70V-1000V, Φ1.6mm-16mm, Manufacturer Direct Sales, Phase Rotation Meter
ItemPackageDimensions_Height : 30 millimeters
ItemPackageDimensions_Length : 75 millimeters
ItemPackageDimensions_Width : 70 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : circuit-tracers-and-analyzers
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : EITAI
Material : Plastic
MaximumOperatingVoltage : 1000 volts
MeasurementAccuracy : 0%
MinimumOperatingVoltage : 70 volts
ModelNumber : ETCR1000C
NumberOfItems : 1
PartNumber : ETCR1000C
PowerSourceType : Battery Powered
ProductDescription :

Specifications:
Model： EITAI ETCR1000C Non-Contact Phase Sequence Tester
Functions： Phase detection (positive phase, reverse phase and default phase), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.
Power Supply： DC 3V2*AA Alkaline dry battery , Continuously working for 70 hours
AC Voltage Range(V)： AC 70 - 1000V, 40/65Hz (Sine Continuous Input)
Clamp Wire Size External Diameter： 1.6-16mm
Power On Indication Power on indication light turns on; Low power, low battery light on.
Magnetic force Four magnets on the back of the meter, which are attached to the distribution box and can withstand 800g quality.
Auto Power off After 5 minutes, the meter automatically cut off power supply.
Meter Dimension: Width, height, thickness 70mm*75mm*30mm
Wire Length: 0.6m
Weight: 360g
Working Temperature and Humidity: -10℃-55℃; below 80%
Storage Temperature and Humidity: -20℃-60℃; below 90%
Dielectric Strength: 5.4kVrms
Maximum Rated Power: 300mVA

Package List:
1*Non-Contact Phase Rotation Meter
1*Manual
1*Storage Bag

Notes:
*Due to import regulations and customs requirements, this product does not come with a battery. Please ensure you have the necessary battery on hand before use.
*Please note that the actual color of the product may vary slightly from the photographs due to lighting conditions.
*Be aware that there might be minimal discrepancies in the measurement readings of the product.

ProductSiteLaunchDate : 2024-07-26T06:49:01.719Z
Size : Approx.124mm/4.88''x18mm/0.71''
Style : Non-Contact
SupplierDeclaredDgHzRegulation : not_applicable
UpperTemperatureRating : 55 degrees_celsius
